PV combiner configuration family
Standard DC String Combiner Boxes
Standard DC string aggregation configurations for PV array interfaces. This family groups 16 reviewed configurations by voltage, input/output topology and protection architecture.
Configuration matrix
Compare the electrical boundary before selecting a model.
Values shown are source-backed configuration identifiers. Final component selections, ratings, drawings and documents are confirmed against the project specification.
DC string combiner box
- Voltage
- 1000V DC
- Input / output
- 1 / 1
- Arrangement
- BUD-40/3

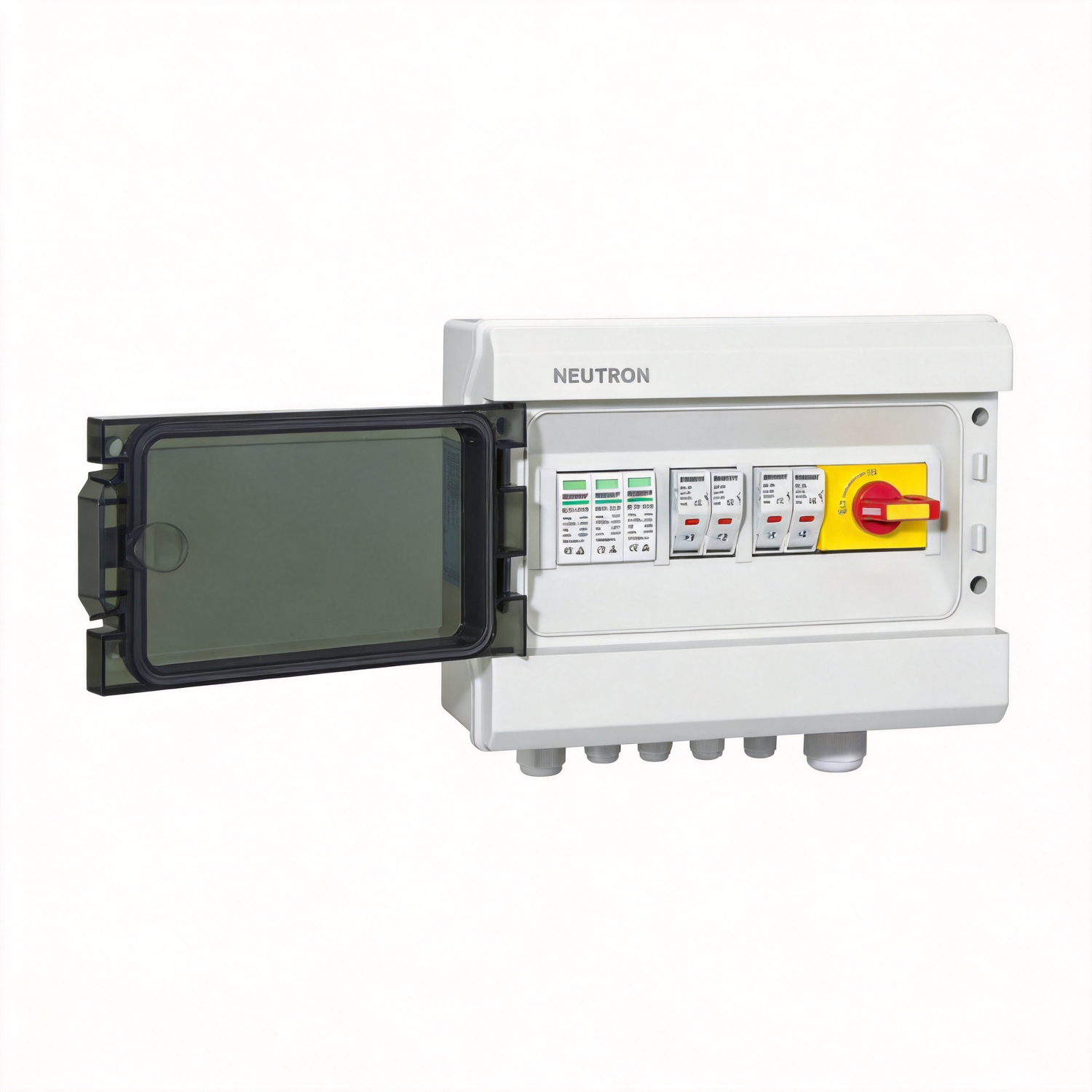

DC combiner box
- Voltage
- 1000V DC
- Input / output
- 2 / 1
- Arrangement
- BUD-40/3

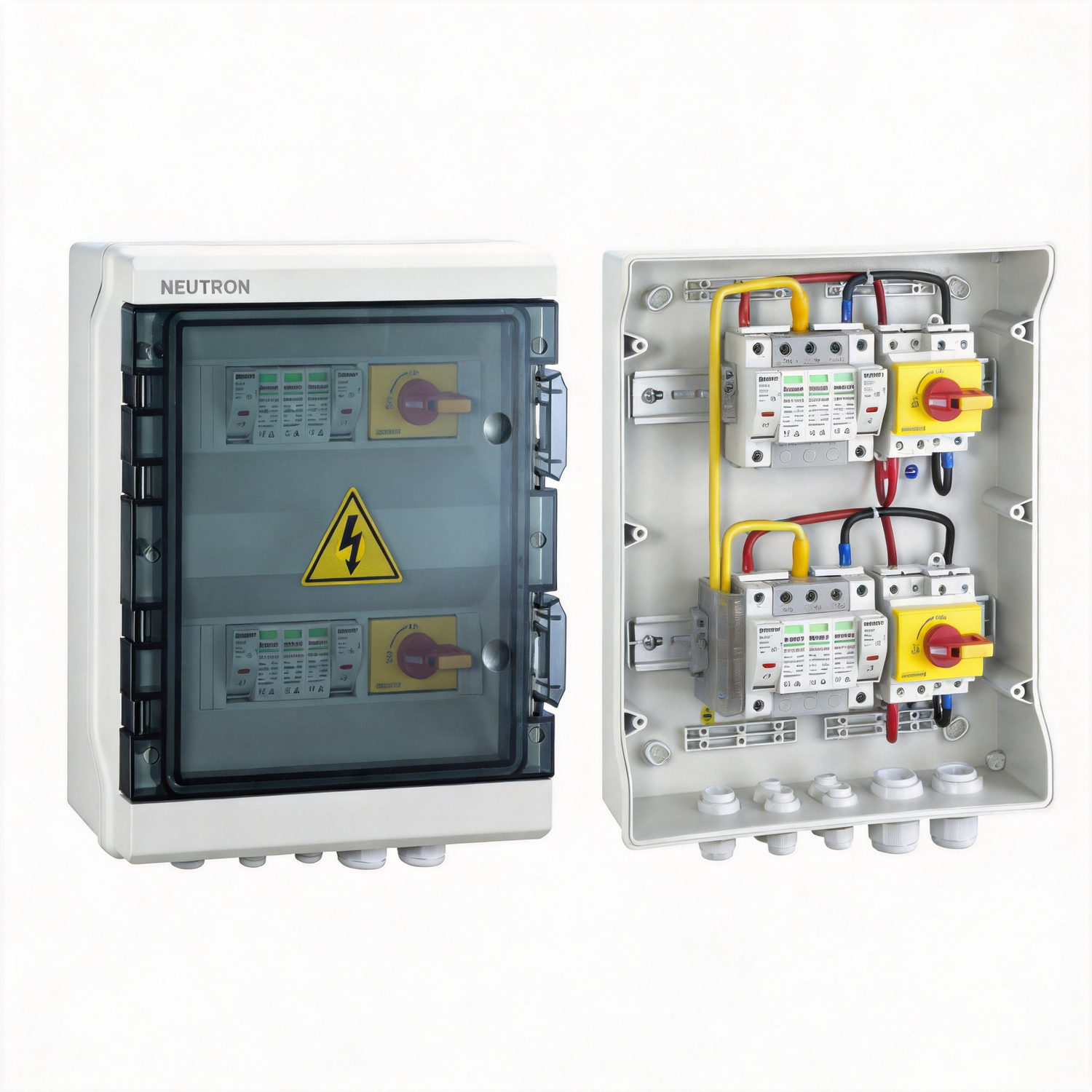

DC string combiner box
- Voltage
- 1000V DC
- Input / output
- 2 / 2
- Arrangement
- BUD-40/3

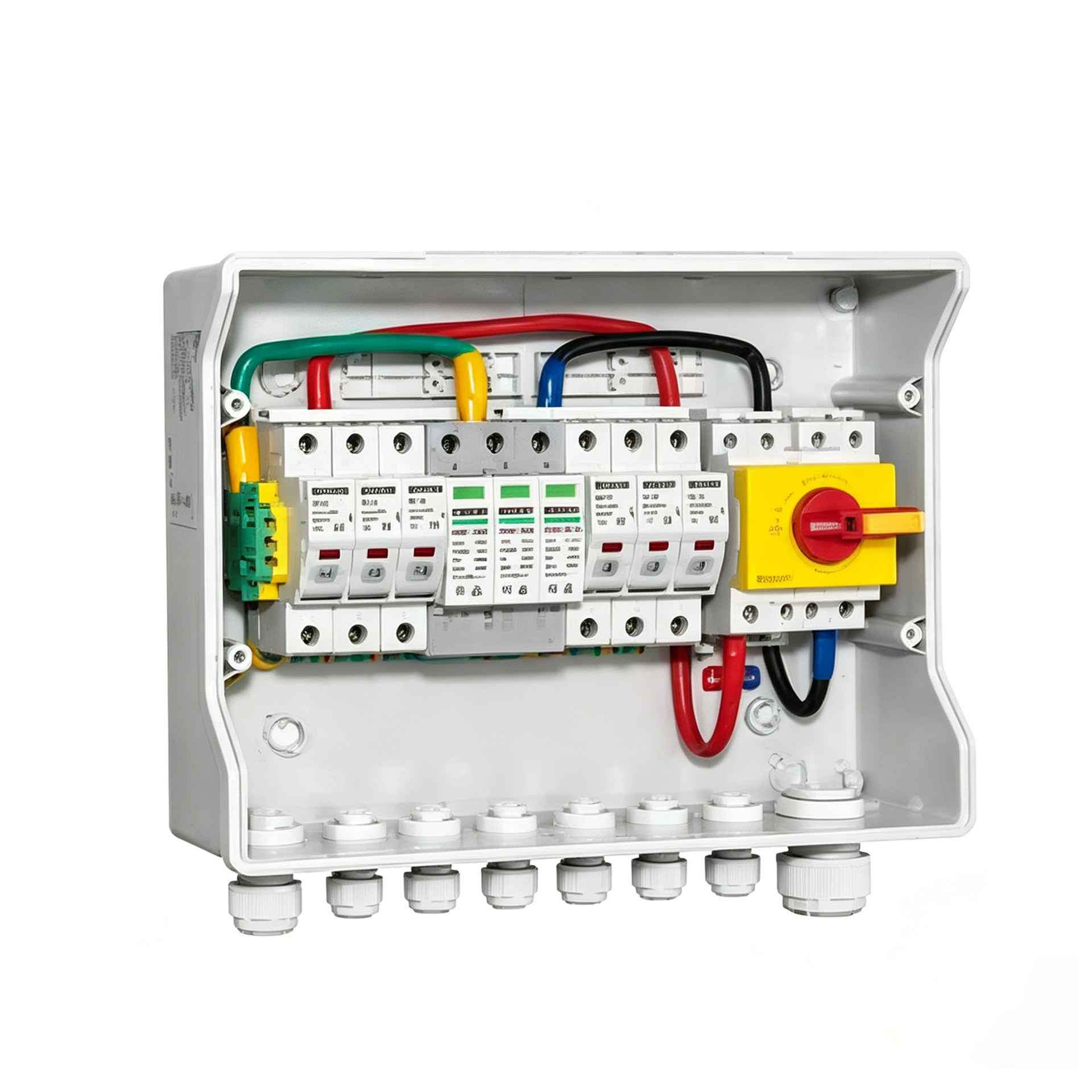

DC combiner box
- Voltage
- 1000V DC
- Input / output
- 3 / 1
- Arrangement
- BUD-40/3

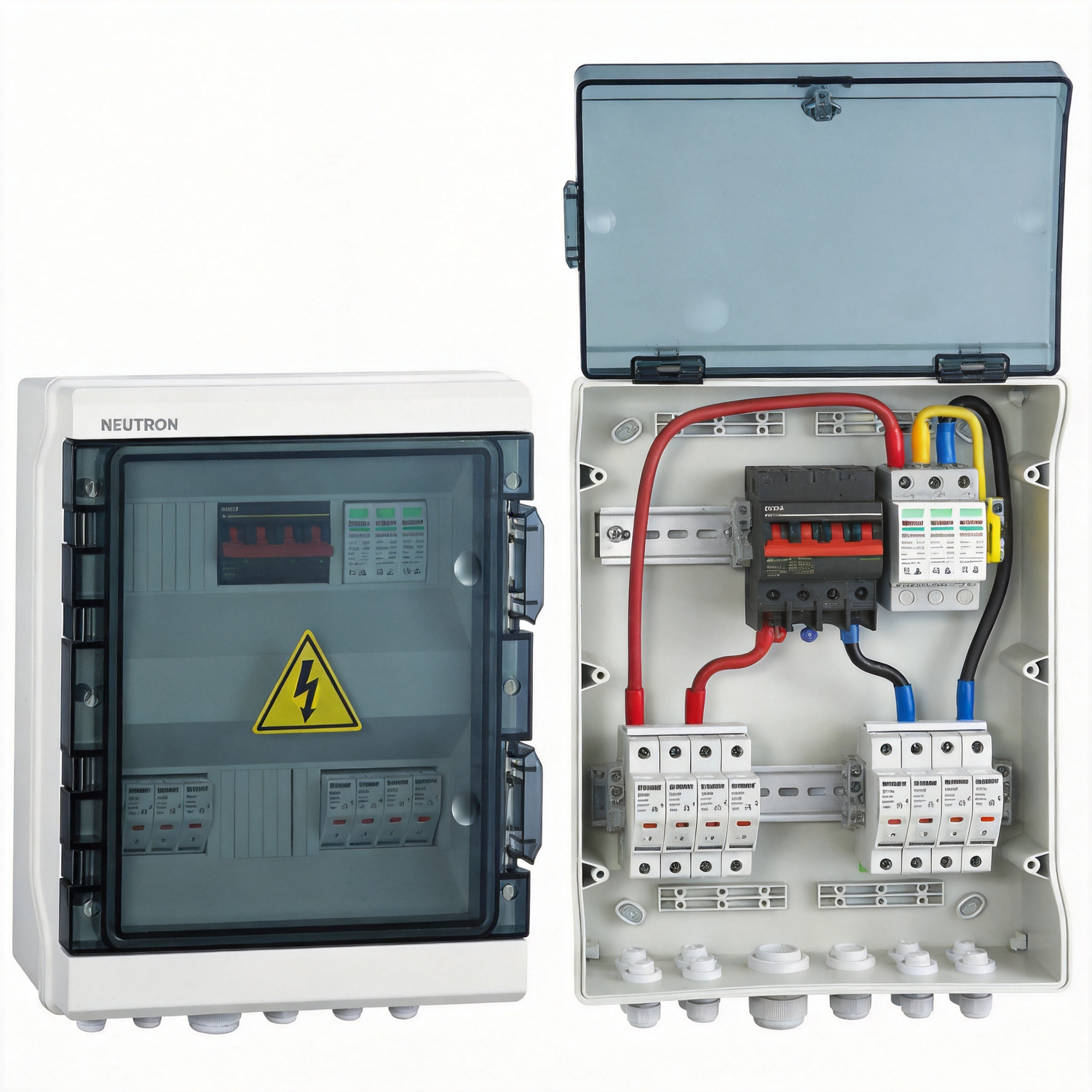

DC string combiner box
- Voltage
- 1000V DC
- Input / output
- 4 / 1
- Arrangement
- fuse + SPD + isolator
DC combiner box
- Voltage
- 1000V DC
- Input / output
- 4 / 2
- Arrangement
- fuse + SPD + isolator

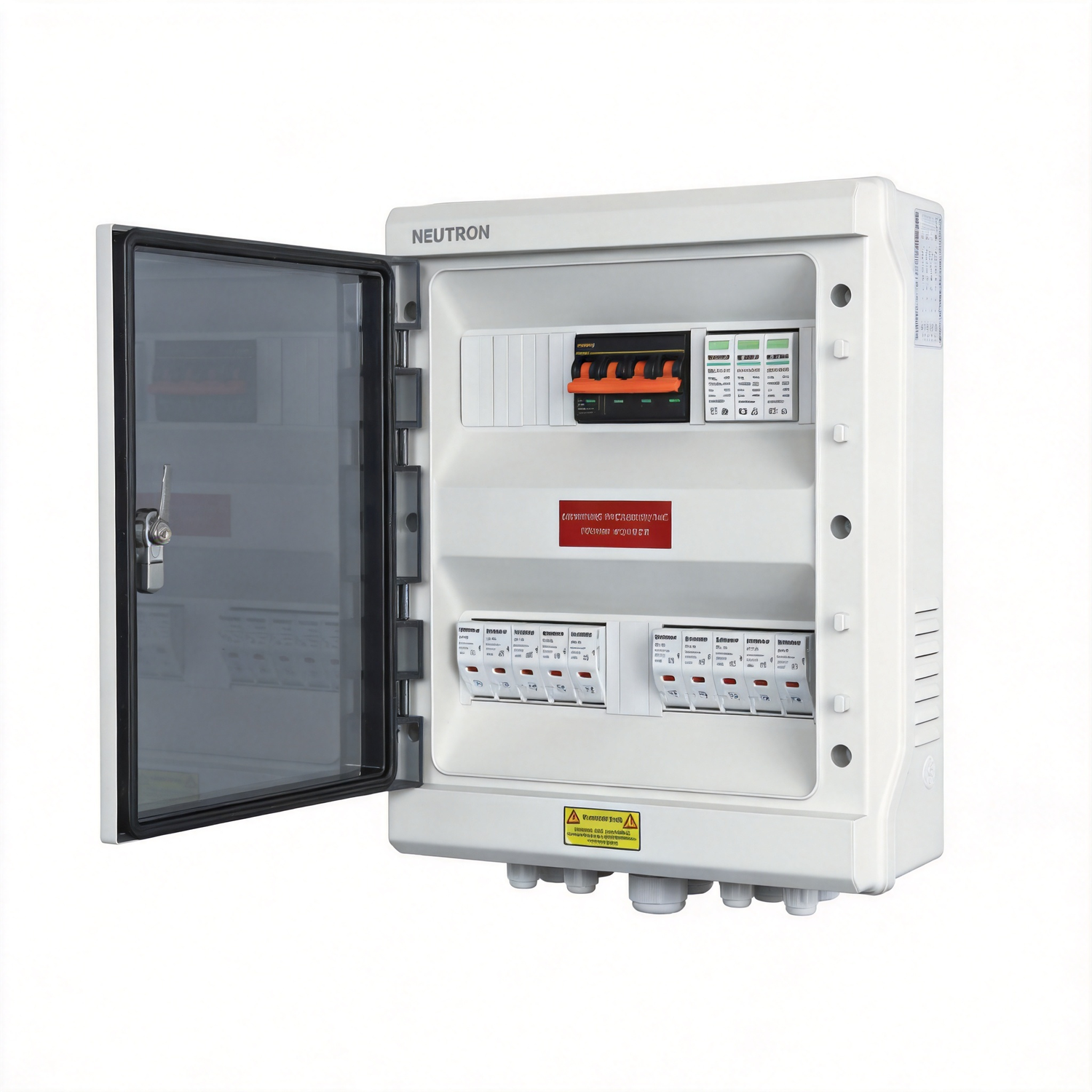

DC combiner box
- Voltage
- 1000V DC
- Input / output
- 5 / 1
- Arrangement
- string aggregation

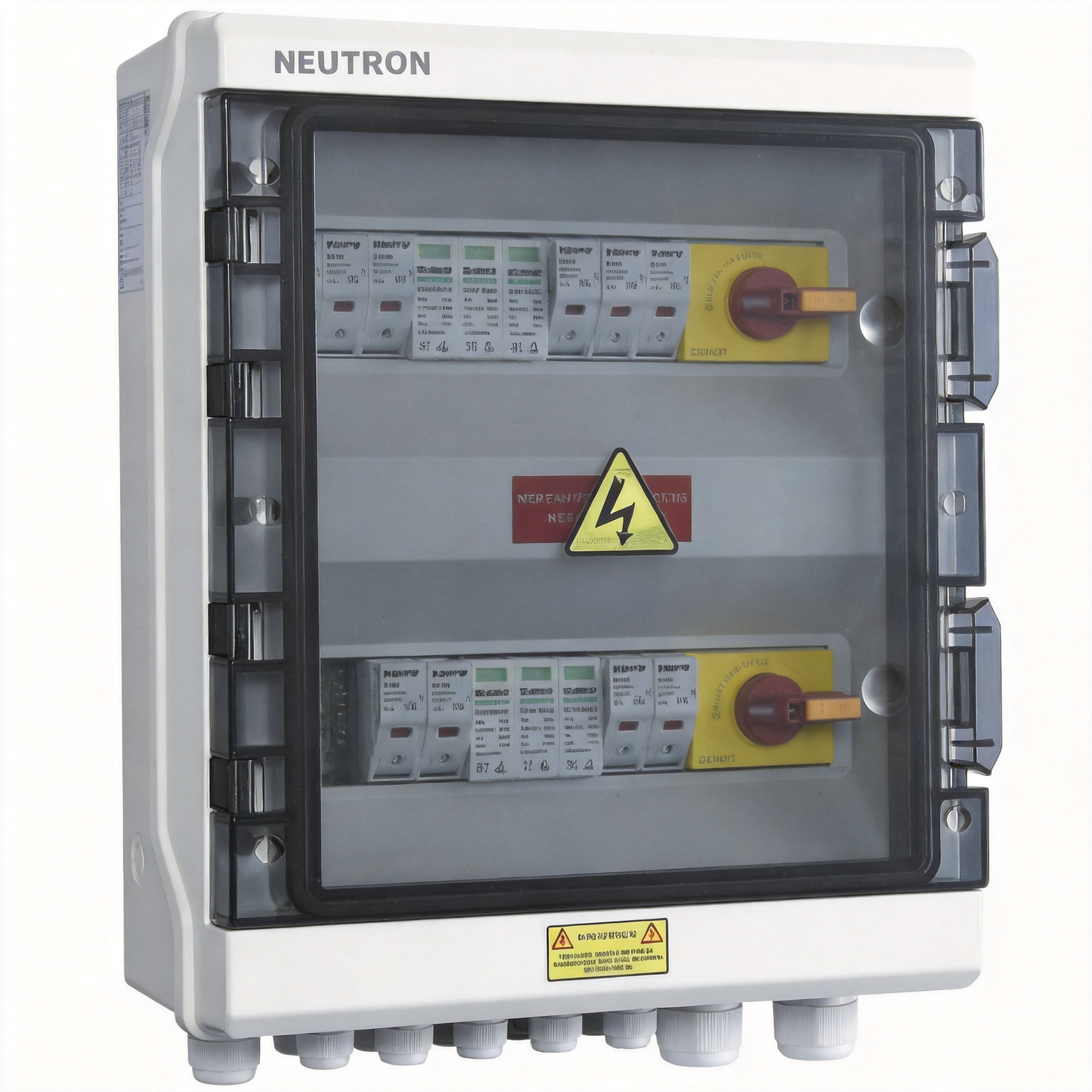

DC combiner box
- Voltage
- 1000V DC
- Input / output
- 5 / 2
- Arrangement
- string aggregation
DC combiner box
- Voltage
- 1000V DC
- Input / output
- 6 / 2
- Arrangement
- string aggregation
DC string box
- Voltage
- 600V DC
- Input / output
- 1 / 1
- Arrangement
- string aggregation
DC combiner box
- Voltage
- 600V DC
- Input / output
- 2 / 1
- Arrangement
- string aggregation

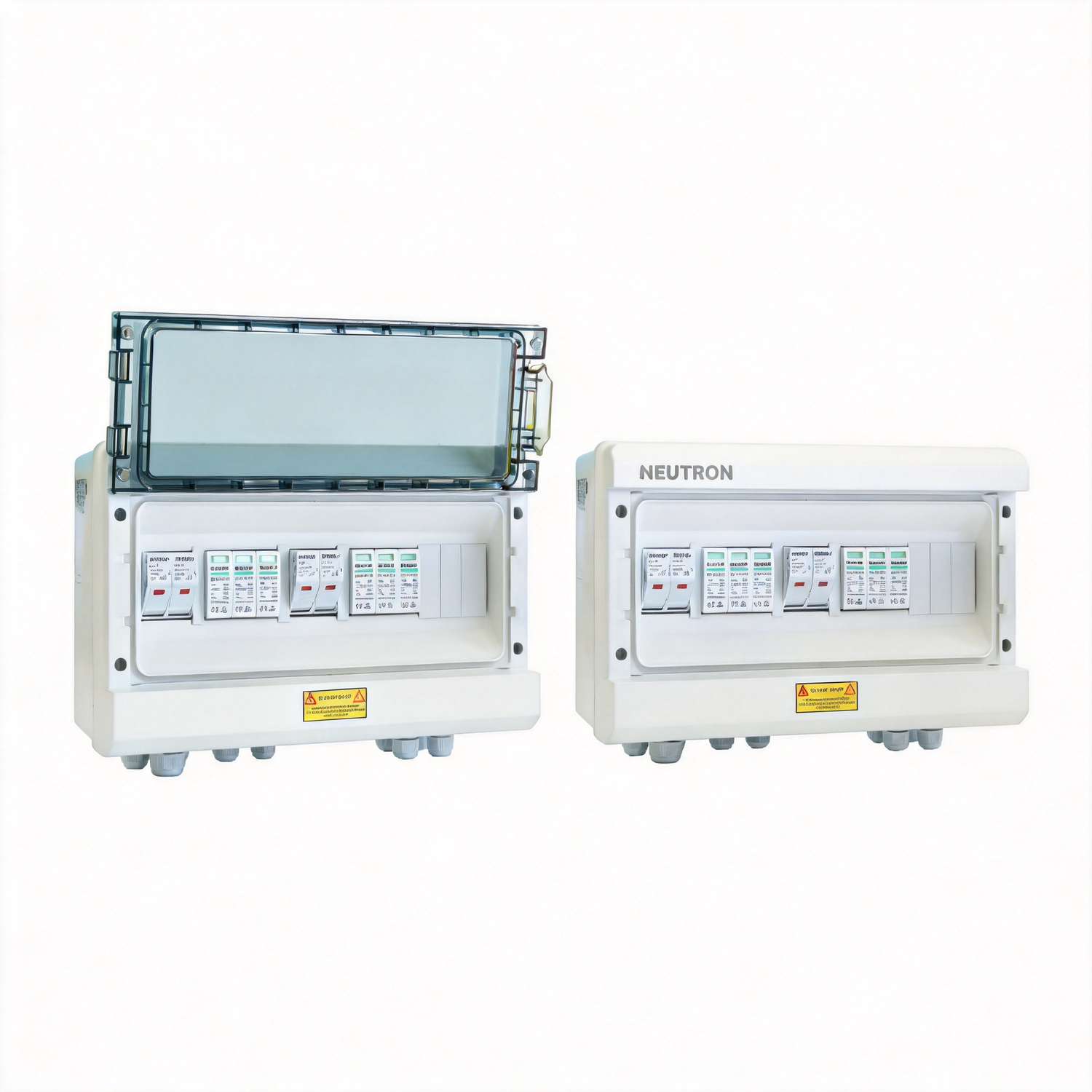

DC string box
- Voltage
- 600V DC
- Input / output
- 2 / 2
- Arrangement
- string aggregation
DC string box
- Voltage
- 1000V DC
- Input / output
- 1 / 1
- Arrangement
- BUD-S1000
DC string box
- Voltage
- 1000V DC
- Input / output
- 2 / 2
- Arrangement
- BUD-S1000
DC string box
- Voltage
- 1000V DC
- Input / output
- 1 / 1
- Arrangement
- BUD-693
DC string box
- Voltage
- 1000V DC
- Input / output
- 2 / 2
- Arrangement
- BUD-693
