PV combiner configuration family
DC Breaker and Over-Current Boxes
DC breaker-led protection arrangements for defined string and feeder interfaces. This family groups 10 reviewed configurations by voltage, input/output topology and protection architecture.
Purchase readiness
Move from product interest to a review-ready request.
Pricing is confirmed per configuration and quotation. Project builds are engineered to spec; final ratings, documents and delivery are confirmed before quotation.
- MOQ
- 1 unit
- FOB
- Ningbo / Shanghai
- Standard lead time
- 3-5 days
- Project lead time
- 5-30 days
- Sample route
- 3-5 days
Configuration matrix
Compare the electrical boundary before selecting a model.
Values shown are source-backed configuration identifiers. Final component selections, ratings, drawings and documents are confirmed against the project specification.

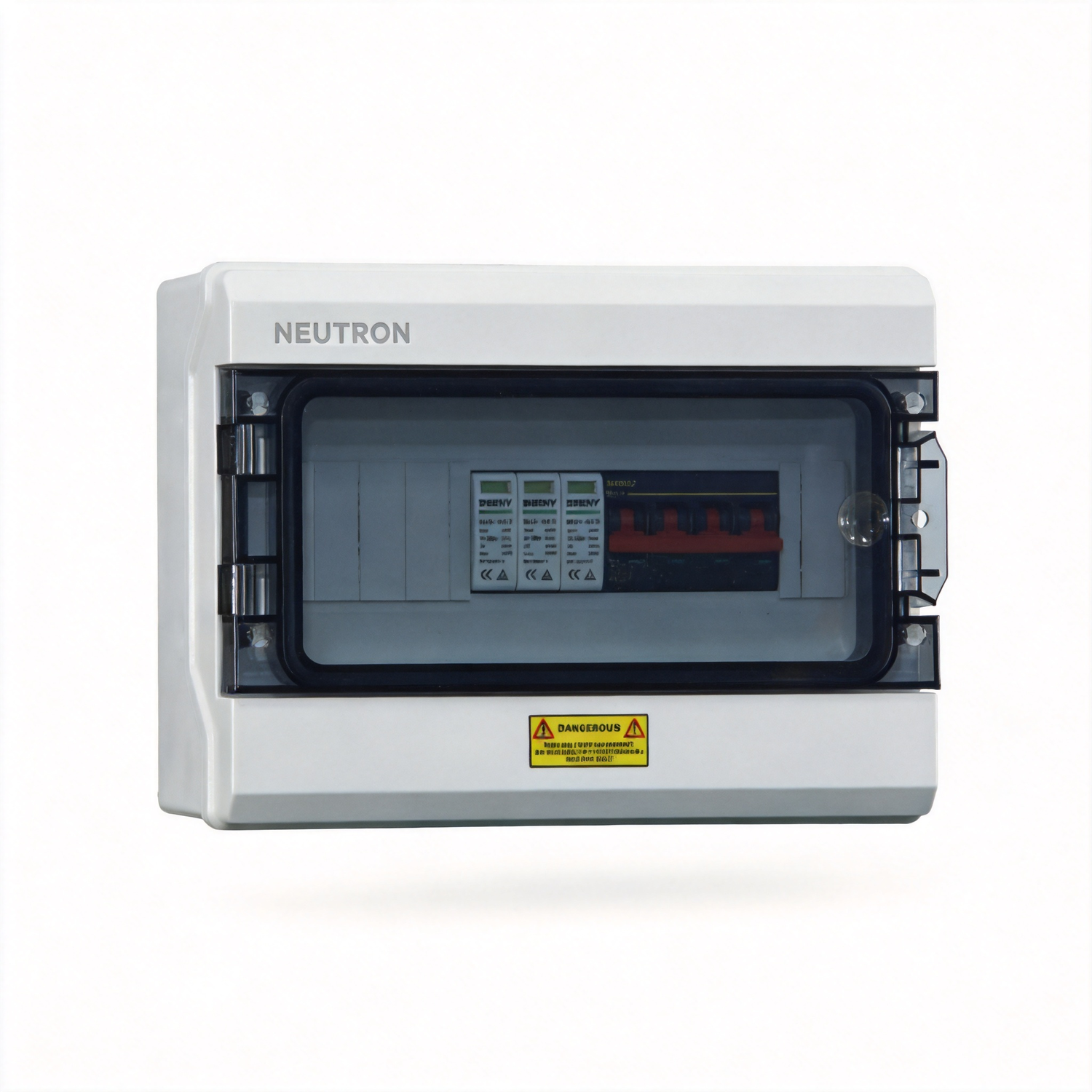

DC breaker protection box
- Voltage
- 600/1000V DC
- Input / output
- 1 / 1
- Arrangement
- breaker + SPD

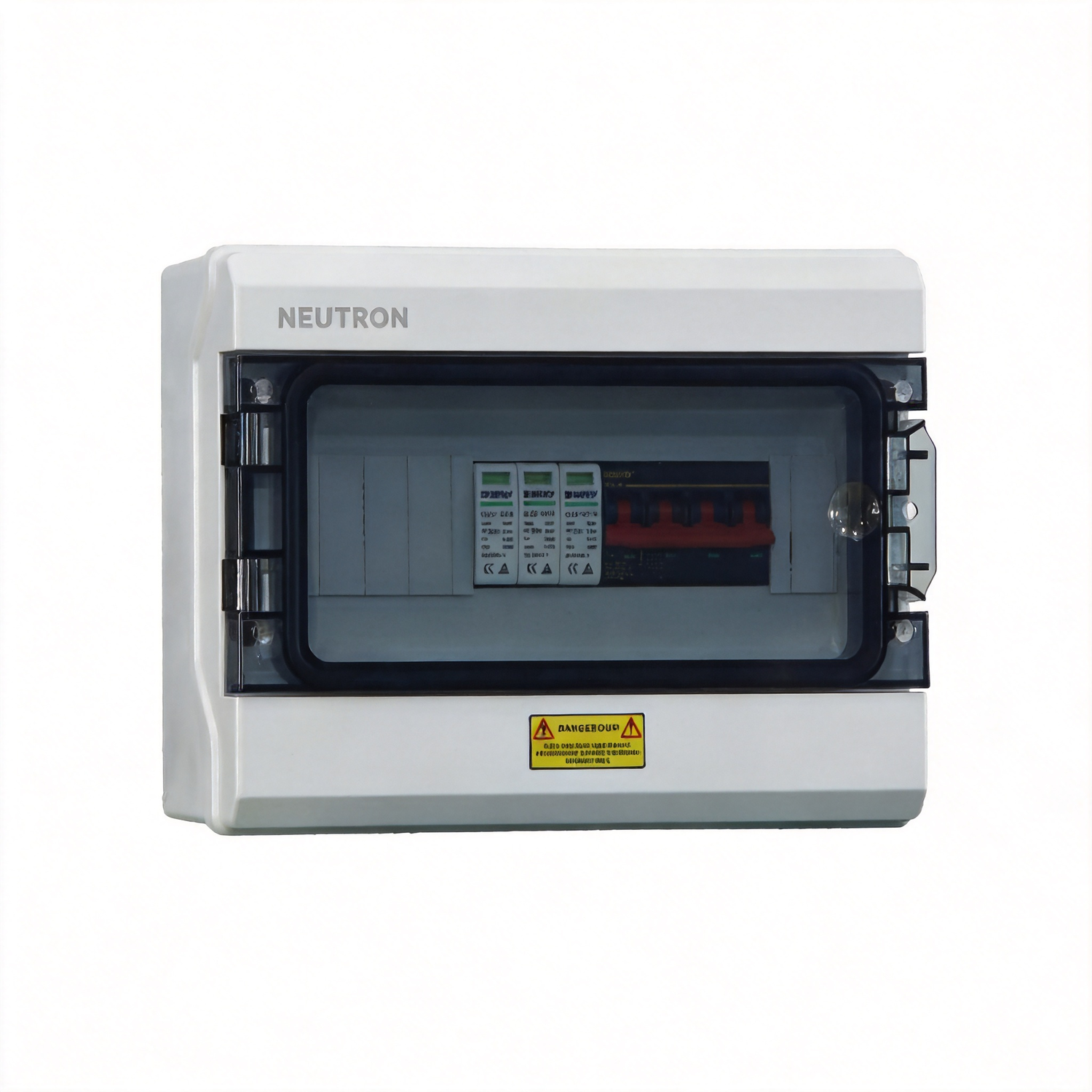

DC breaker protection box
- Voltage
- 600/1000V DC
- Input / output
- 2 / 1
- Arrangement
- breaker + SPD

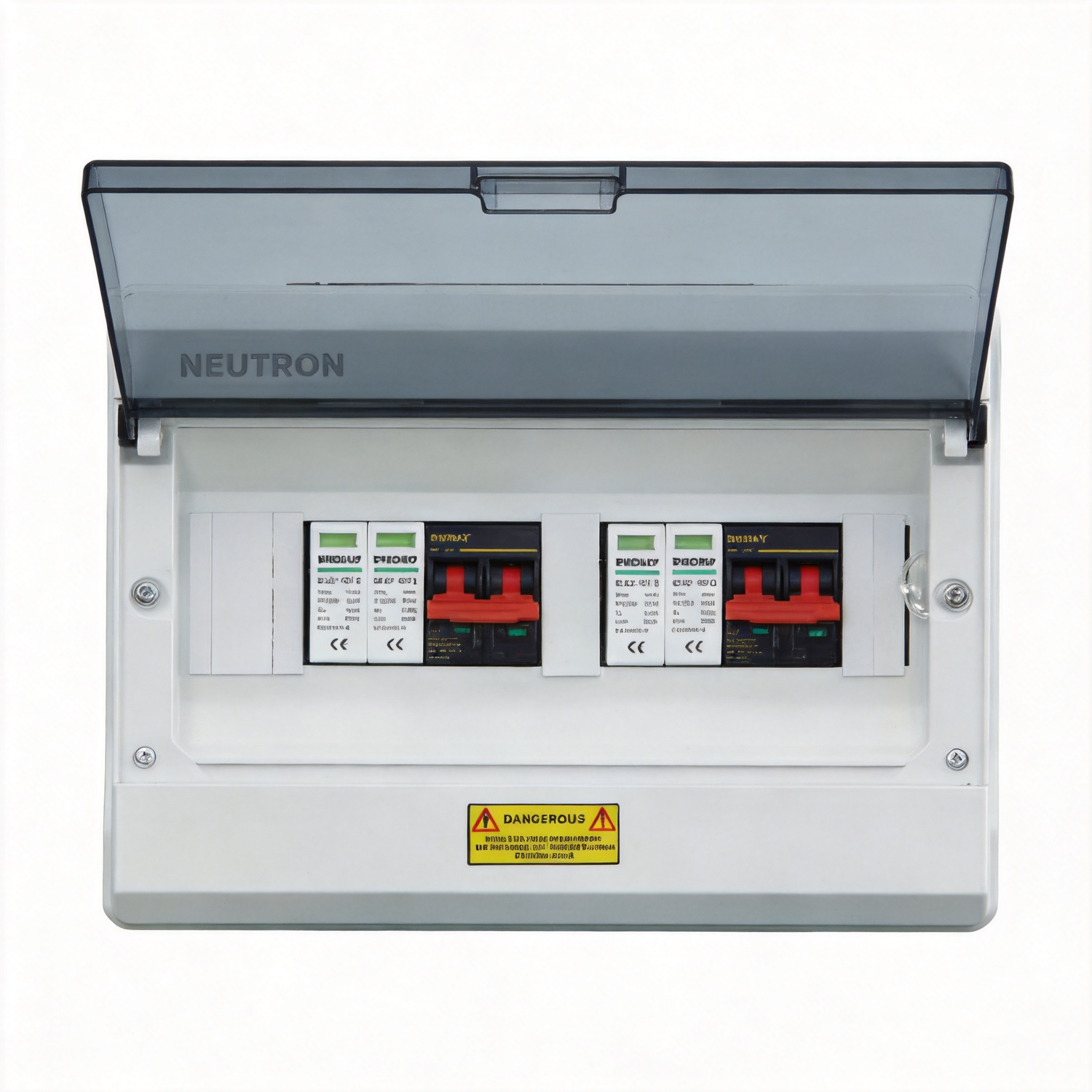

DC breaker protection box
- Voltage
- 600/1000V DC
- Input / output
- 2 / 2
- Arrangement
- breaker + SPD
DC breaker protection box
- Voltage
- 600/1000V DC
- Input / output
- 3 / 1
- Arrangement
- breaker + SPD

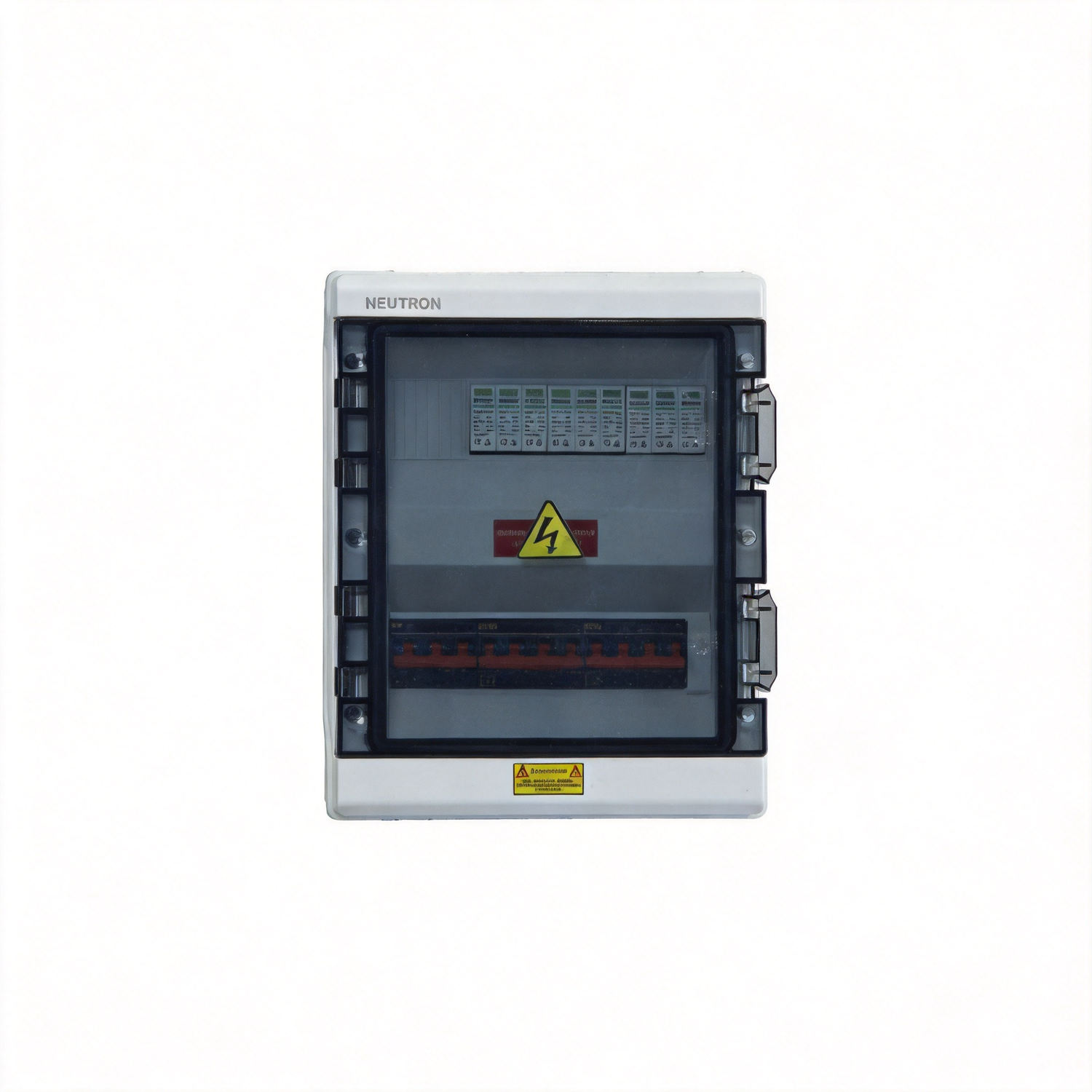

DC breaker protection box
- Voltage
- 600/1000V DC
- Input / output
- 3 / 3
- Arrangement
- breaker + SPD

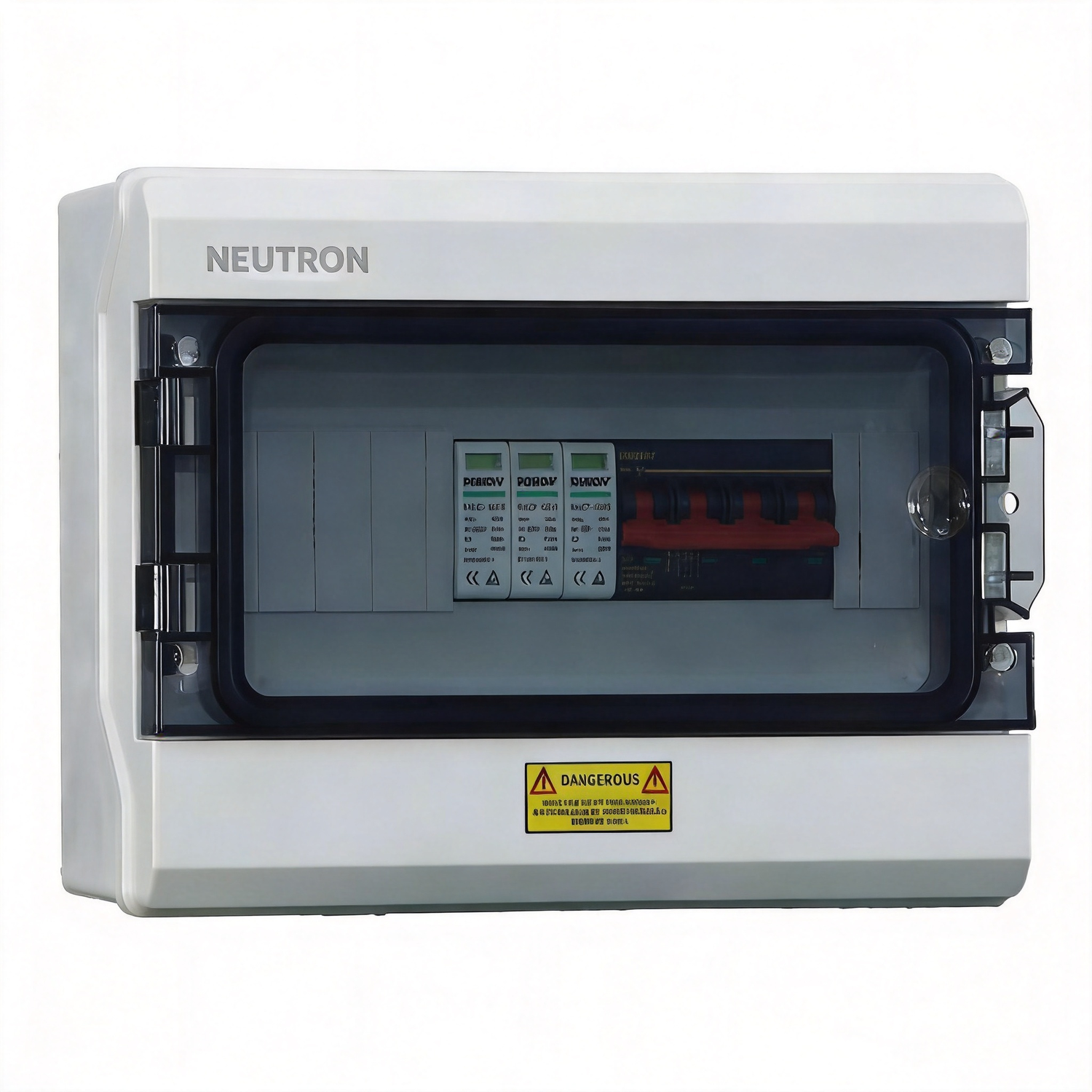

DC breaker protection box
- Voltage
- 600/1000V DC
- Input / output
- 4 / 2
- Arrangement
- breaker + SPD

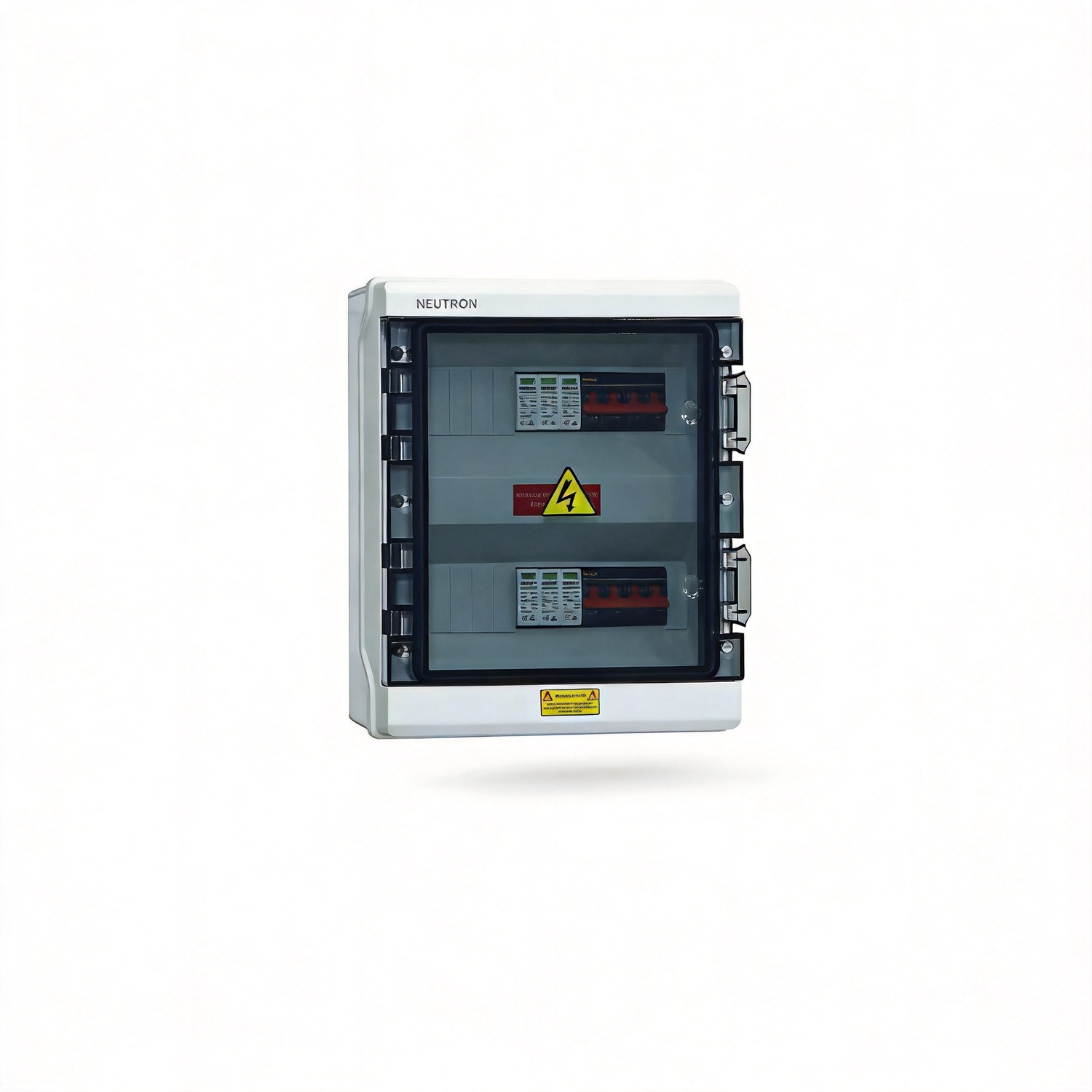

DC breaker protection box
- Voltage
- 1000V DC
- Input / output
- 4 / 4
- Arrangement
- breaker + SPD

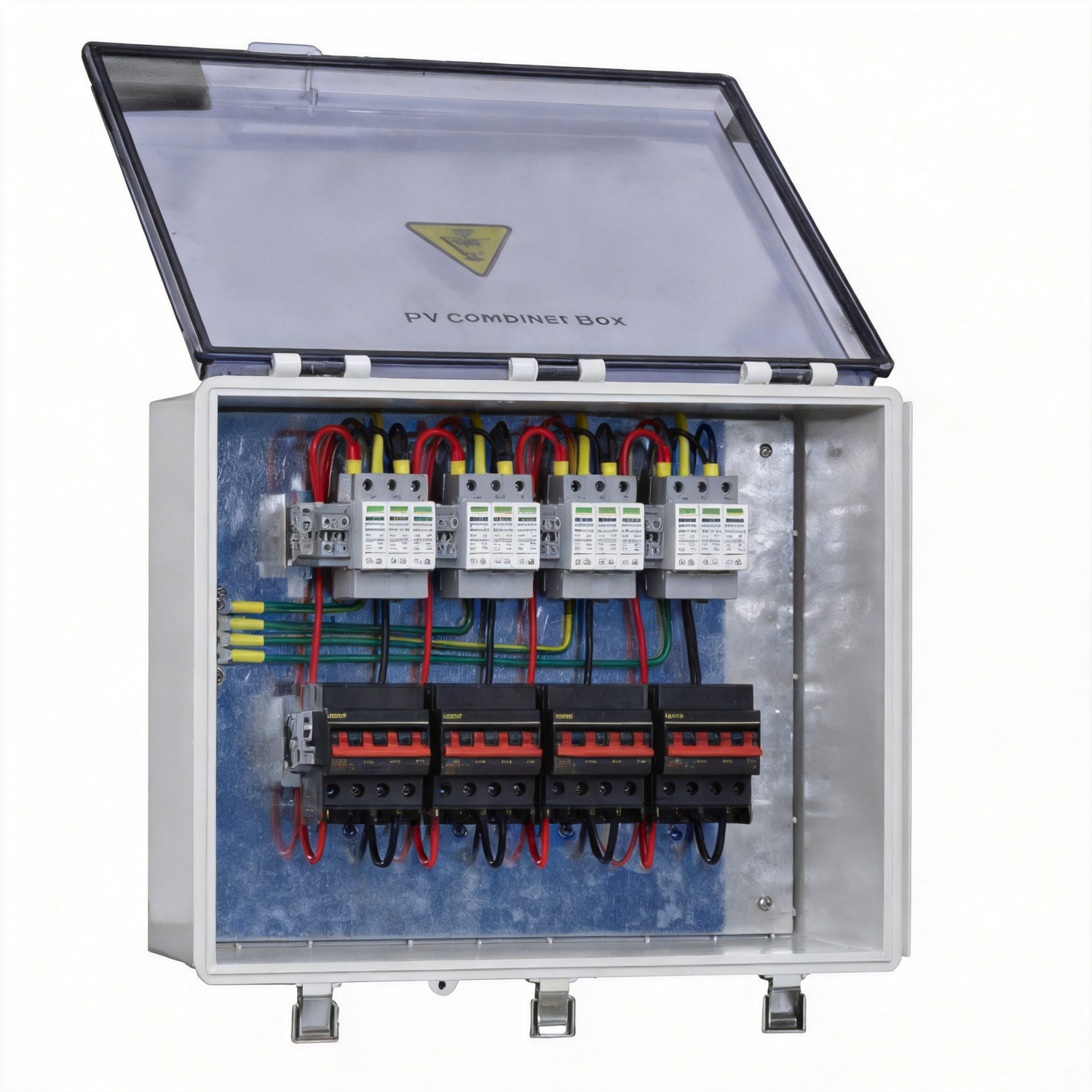

DC breaker protection box
- Voltage
- 1000V DC
- Input / output
- 6 / 2
- Arrangement
- breaker + SPD

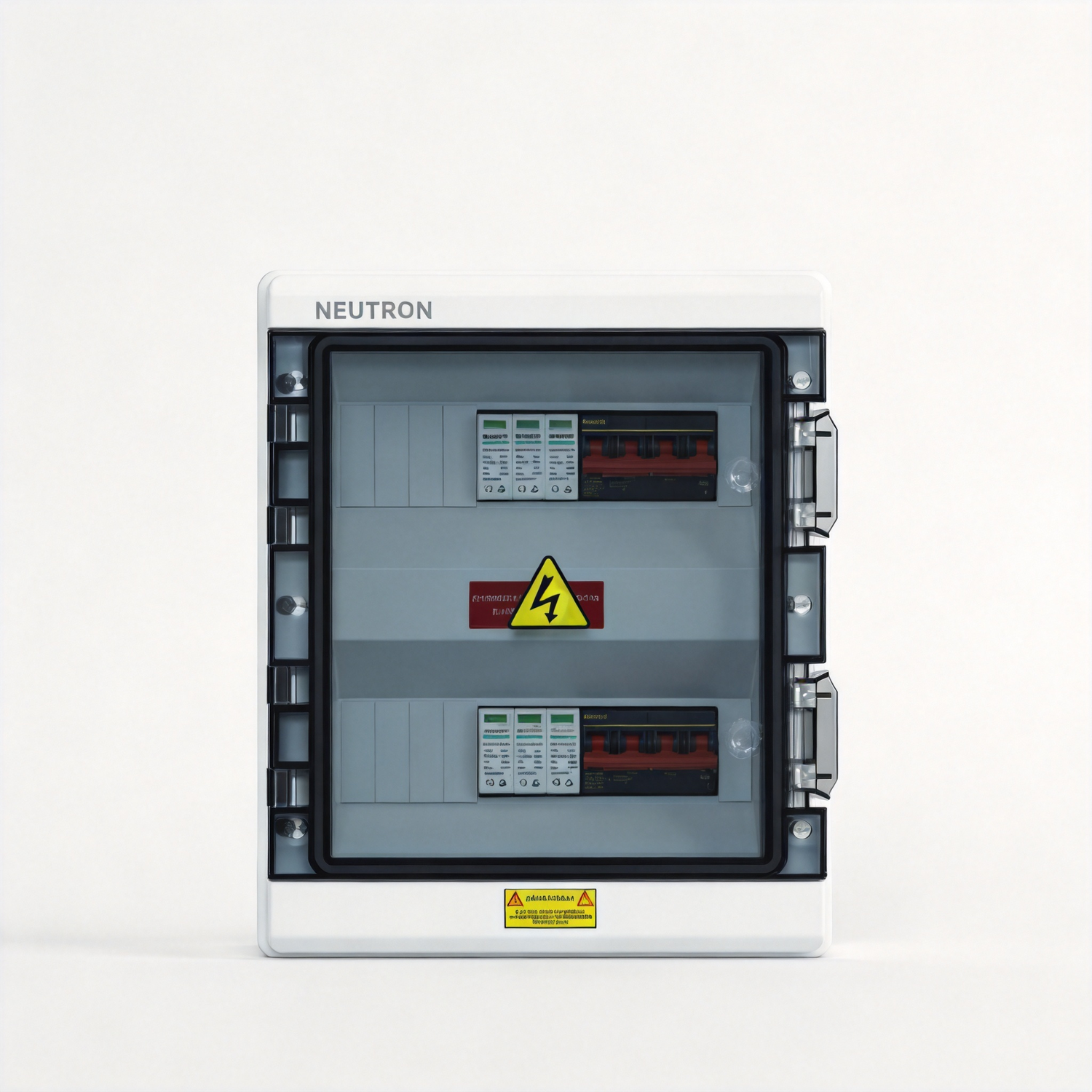

DC breaker protection box
- Voltage
- 1000V DC
- Input / output
- 6 / 3
- Arrangement
- breaker + SPD

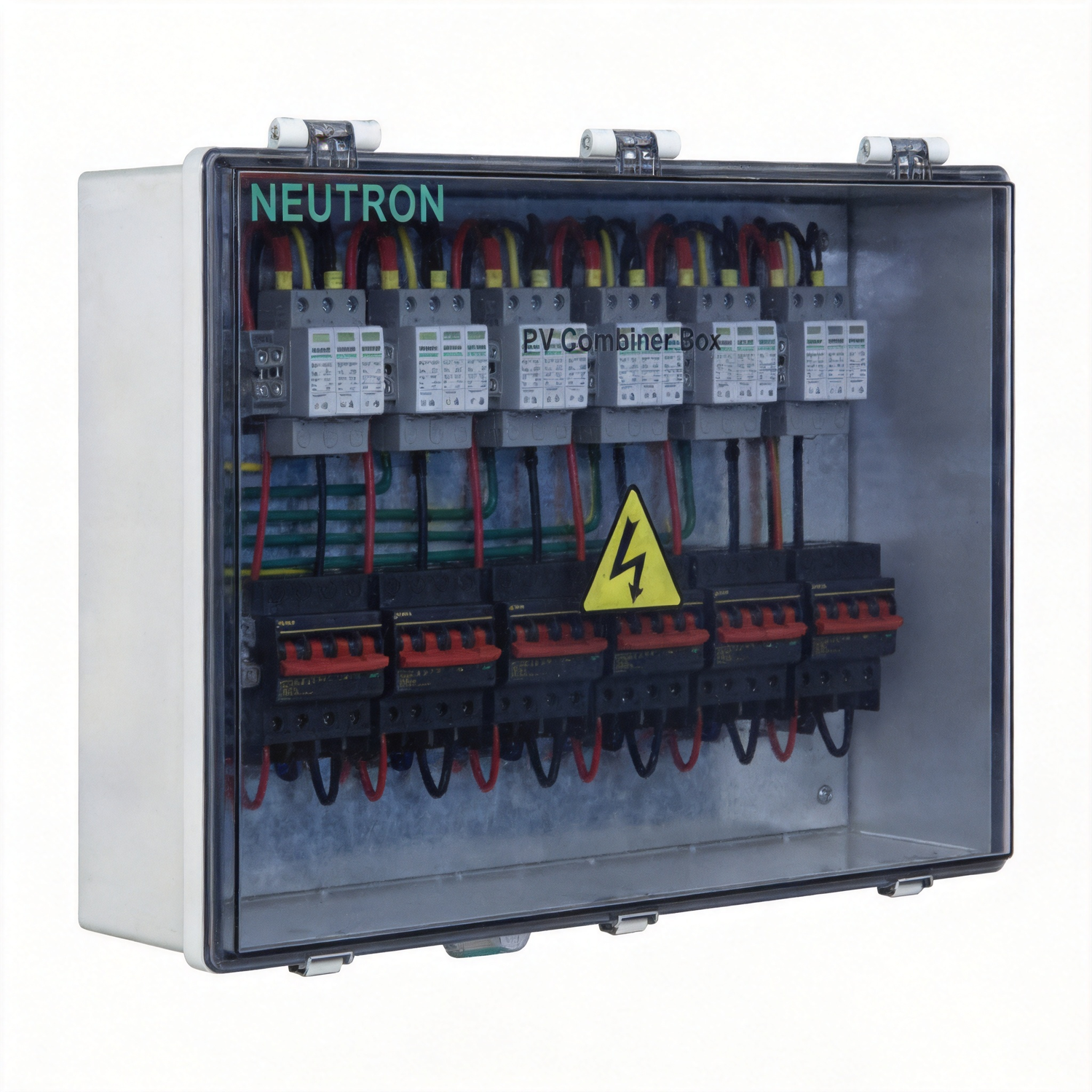

DC breaker protection box
- Voltage
- 1000V DC
- Input / output
- 6 / 6
- Arrangement
- breaker + SPD
