Reviewed configuration

NHS-2M DC string box

A 600V DC configuration with 2 input and 2 output boundary. Confirm the project specification before release.

Request a configuration review →Back to family matrix →

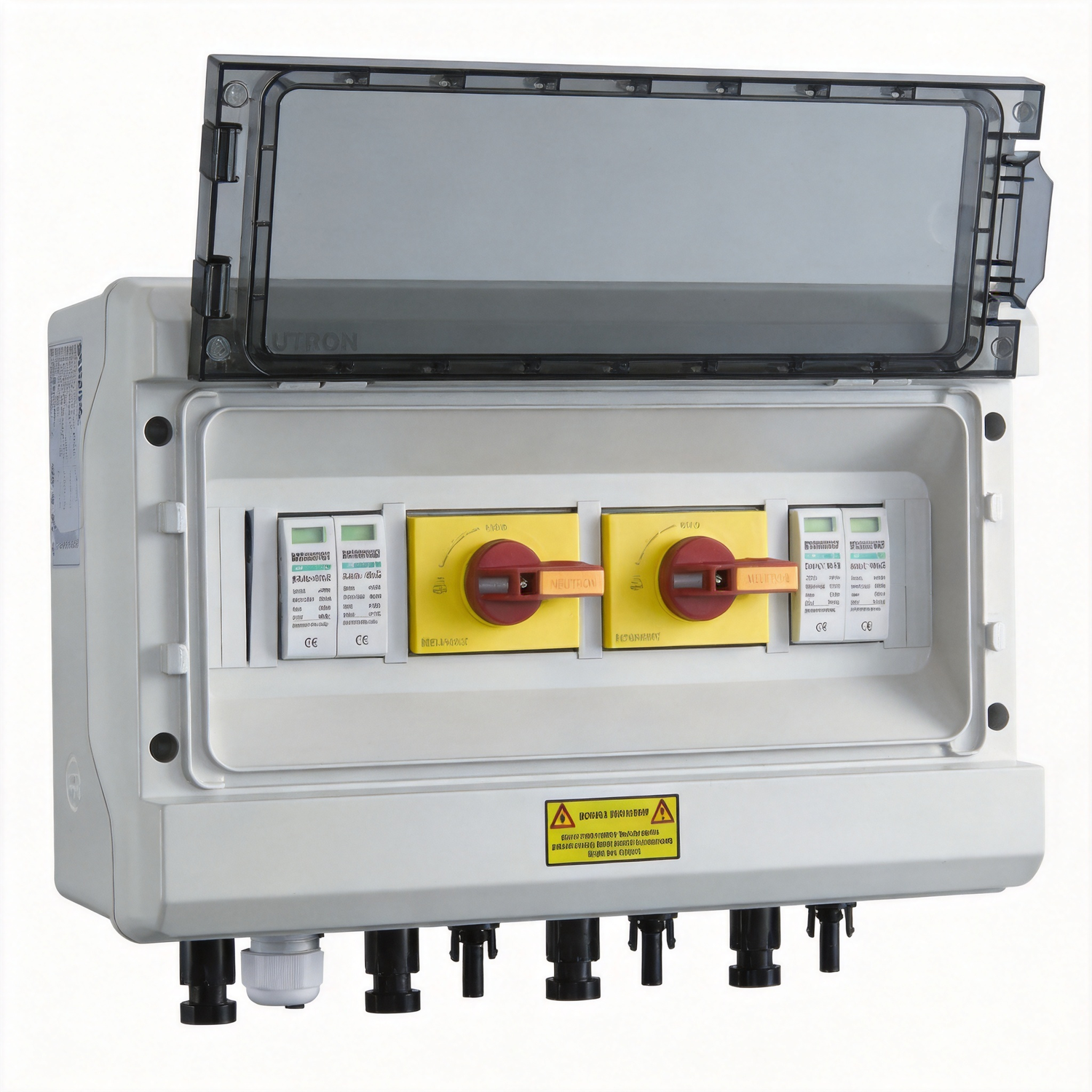

NHS-2M DC string box

Source-backed technical data

Complete configuration parameters, not only a model summary.

The table below is transcribed from the approved catalogue technical sheet for this configuration. The final drawing, BOM and inspection scope remain subject to the agreed project specification.

Configuration summary

ModelNHS-2M
Configuration typeDC string box
Voltage class600V DC
Input count2
Output count2
Protection / switching architecturestring aggregation

General data

Input2 string
Output2 string
Maximum Voltage600V
Maximum Current Output32A

Enclosure

TypeBX-15
Material TypePolycarbonate/ABS
Degree of ProtectionIP65
Degree of Resistance to ImpactsIK10
Dimension (WxHxD)331 x 210 x 122mm
InputMC4
OutputMC4

DC switch disconnector

Rated Insulation Voltage (Ui)600V
Rated Current (Ie)32A
CategoryDC21B/IPV2
Standard Compliance withIEC 60947-3
CertificationUL, TUV, KEMA, SAA, CE

DC surge arrester

Max Operation Voltage (Ucpv)600V
Standard Compliance withEN 50539 Type 2
Maximum Discharge Current40 KA
CertificationTUV CE

Environment

Operating Temperature-20°C~+60°C
Humidity99%
Altitude2000M
InstallationWall Mounting
