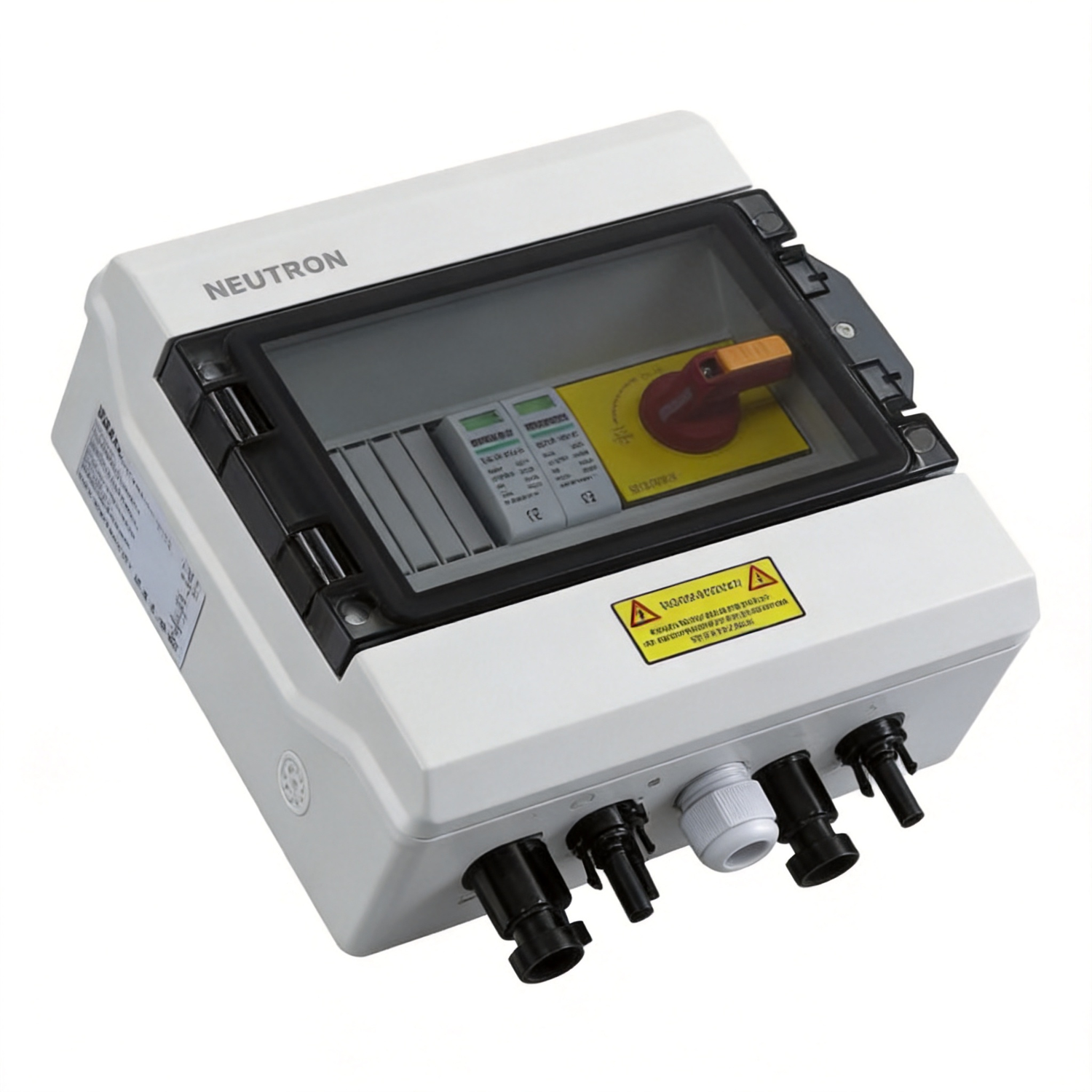

NHS-2M DC combiner box
A 600V DC configuration with 2 input and 1 output boundary. Confirm the project specification before release.
Source-backed technical data
Complete configuration parameters, not only a model summary.
The table below is transcribed from the approved catalogue technical sheet for this configuration. The final drawing, BOM and inspection scope remain subject to the agreed project specification.
Configuration summary
| Model | NHS-2M |
|---|---|
| Configuration type | DC combiner box |
| Voltage class | 600V DC |
| Input count | 2 |
| Output count | 1 |
| Protection / switching architecture | string aggregation |
General data
| Input | 2 string |
|---|---|
| Output | 1 string |
| Maximum Voltage | 600V |
| Maximum Current Output | 32A |
Enclosure
| Type | BX-08 |
|---|---|
| Material Type | Polycarbonate/ABS |
| Degree of Protection | IP65 |
| Degree of Resistance to Impacts | IK10 |
| Dimension (WxHxD) | 210 x 194 x 120mm |
| Input | MC4 |
| Output | MC4 |
DC switch disconnector
| Rated Insulation Voltage (Ui) | 600V |
|---|---|
| Rated Current (Ie) | 32A |
| Category | DC21B/IPV2 |
| Standard Compliance with | IEC 60947-3 |
| Certification | UL, TUV, KEMA, SAA, CE |
DC surge arrester
| Max Operation Voltage (Ucpv) | 600V |
|---|---|
| Standard Compliance with | EN 50539 Type 2 |
| Maximum Discharge Current | 40 KA |
| Certification | TUV CE |
Environment
| Operating Temperature | -20°C~+60°C |
|---|---|
| Humidity | 99% |
| Altitude | 2000M |
| Installation | Wall Mounting |
