Inland Desert PV: NEUTRON Protection Scope for Ibri II 500 MW

Ibri II is a roughly 500 MW solar plant in inland Oman, a hot, dusty site that stresses the combiner and surge protection. NEUTRON supplied the combiner layer and DC protection chain, while inverters and modules were integrated by the EPC.

NEUTRON Engineering TeamUpdated September 15, 20266 min readTechnical application guidance
Photovoltaic tracker rows on a flat gravel plain with a closed DC combiner cabinet beneath the leading row
Fig. 0 — Array-side cabinets sit within the same heat and dust exposure as the PV rows.

Key takeaways

  • The protection scope gave the plant a reliable foundation. The lesson is that disciplined combiner and SPD design matters as much in Oman as at gigawatt scale elsewhere.
  • Treat headline ratings as an engineering input, then confirm the final configuration against the project drawings and applicable local requirements.
  • Keep the approved component list, critical interfaces and required test or document deliverables visible before production begins.

1. Inland Oman desert

The site brings high ambient temperature and abrasive dust. The design priority is a clean, serviceable combiner layer with full desert derating.

2. Combiner and DC protection

  • PV combiner boxes rated to 1500 V DC with individual gPV fuse protection.
  • DC disconnect switches and Type 2 DC SPDs staged to the 1500 V envelope.
  • DC MCBs for auxiliary circuits.

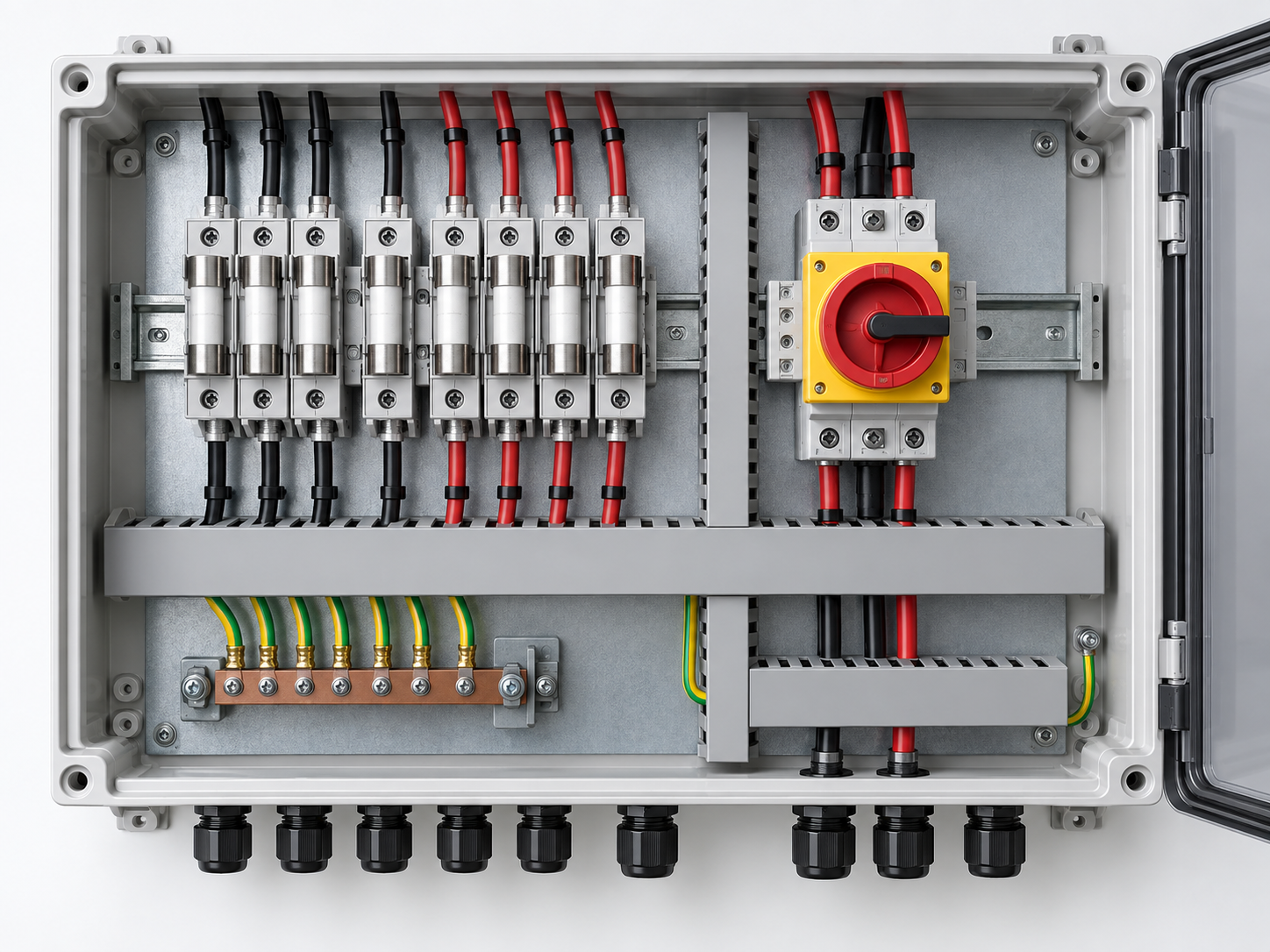

DC combiner interior with cylindrical fuse holders, a rotary disconnector, cable ducts and an earthing bar
Fig. 1 — String fuse holders and the DC disconnector form distinct parts of the combiner protection chain.

3. Selective coordination

The gPV fuse and downstream protection were coordinated so a single string fault clears locally without dropping a feeder, keeping plant availability high.

4. Desert derating

  • Current parts derated for sustained heat and solar gain.
  • Enclosure to IP65 with a corrosion class for inland dust.
  • SPD staging reviewed for local lightning density.

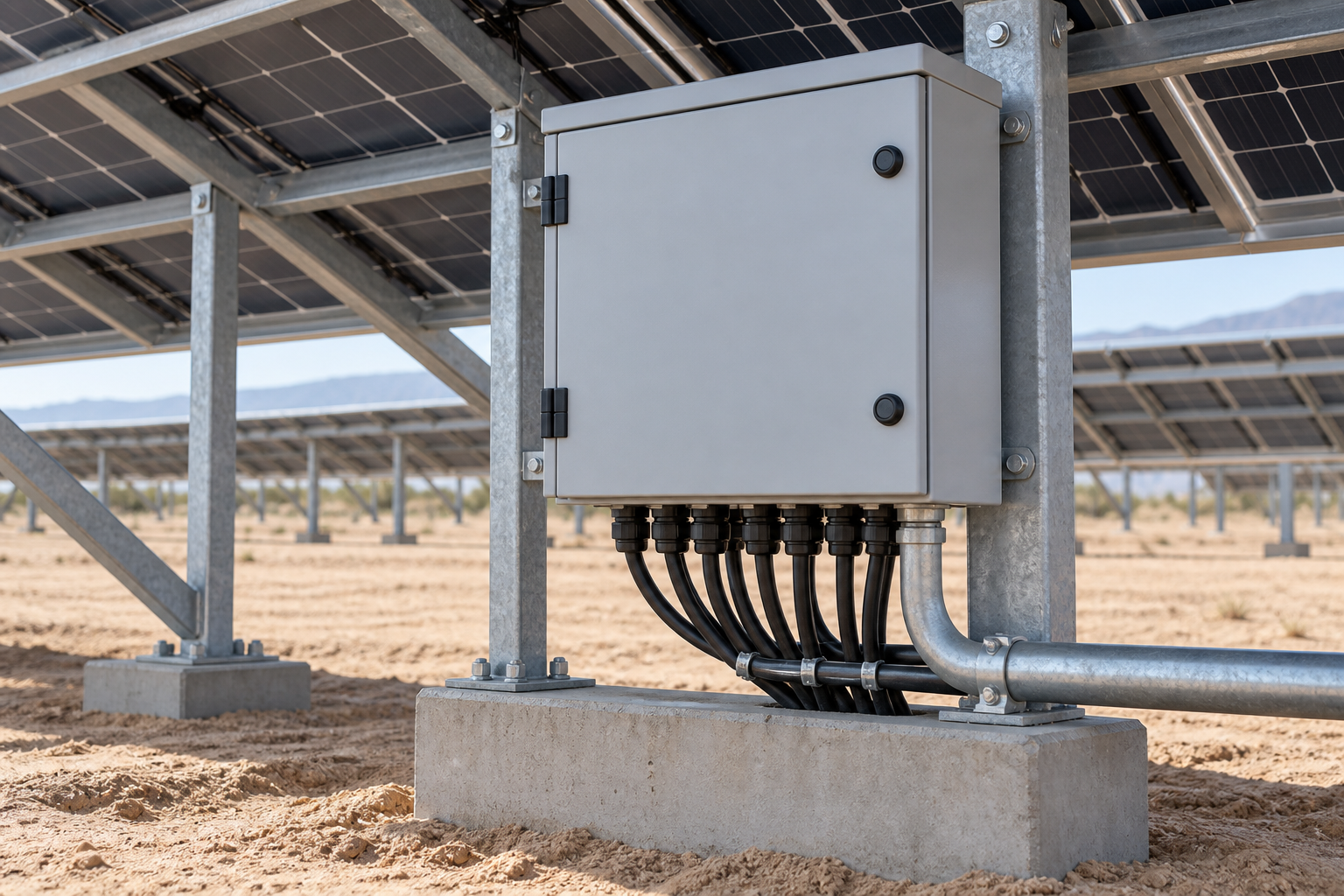

Closed outdoor DC combiner enclosure beneath tilted PV modules, with downward cable glands and protected conduit
Fig. 2 — Enclosure sealing and cable entries are part of the desert specification review.

5. Outcome

The protection scope gave the plant a reliable foundation. The lesson is that disciplined combiner and SPD design matters as much in Oman as at gigawatt scale elsewhere.

Project paths

!
Engineering boundary

Final ratings, coordination, installation and applicable local requirements must be verified against current standards, manufacturer documentation and the approved project design.

Frequently asked questions

What protects Ibri II?

gPV fuses per string, DC disconnect and DC SPD in every combiner, DC MCBs for auxiliaries, and coordinated low-voltage switchgear.

Why derate for desert heat?

Ratings applied against the site ambient keep protection devices within their temperature bands under peak load.

Which standards apply?

IEC 60269-6, IEC 60947-2, IEC 61643-31 and IEC 61439.

What rating applies to the combiner?

Maximum system voltage 1500 V DC, string short-circuit current including bifacial gain, input string count and site protection class.

Review the project protection scope.

Share the array layout, equipment interfaces and site conditions for a coordinated protection review.
