1500 V in Extreme Rating: NEUTRON Scope at Al Kharsaah 800 MW

A 1500 V DC collection and environmental-rating scope for a utility PV plant in a hot, humid Gulf climate.

NEUTRON Engineering TeamUpdated September 9, 20266 min readTechnical application guidance
Large Gulf desert solar field under a humid, hazy sky
Fig. 0 — The protection review combines high DC voltage, heat derating and humidity exposure.

Key takeaways

  • 1500 V and coastal heat must be designed in together, not added later.
  • Treat headline ratings as an engineering input, then confirm the final configuration against the project drawings and applicable local requirements.
  • Keep the approved component list, critical interfaces and required test or document deliverables visible before production begins.

1. A demanding Gulf environment

The Al Kharsaah solar plant near Doha reaches about 800 MW and uses 1500 V inverters in a hot, humid desert environment. Qatar climate combines high air temperature with coastal humidity, so equipment needs both heat derating and humidity sealing. The 1500 V DC envelope adds insulation and clearance demands.

2. Combiner and DC protection

  • PV combiner boxes rated to 1500 V DC with individual gPV fuse protection.
  • DC disconnect switches and Type 2 DC SPDs staged to the 1500 V envelope.
  • DC MCBs for auxiliary and monitoring circuits.

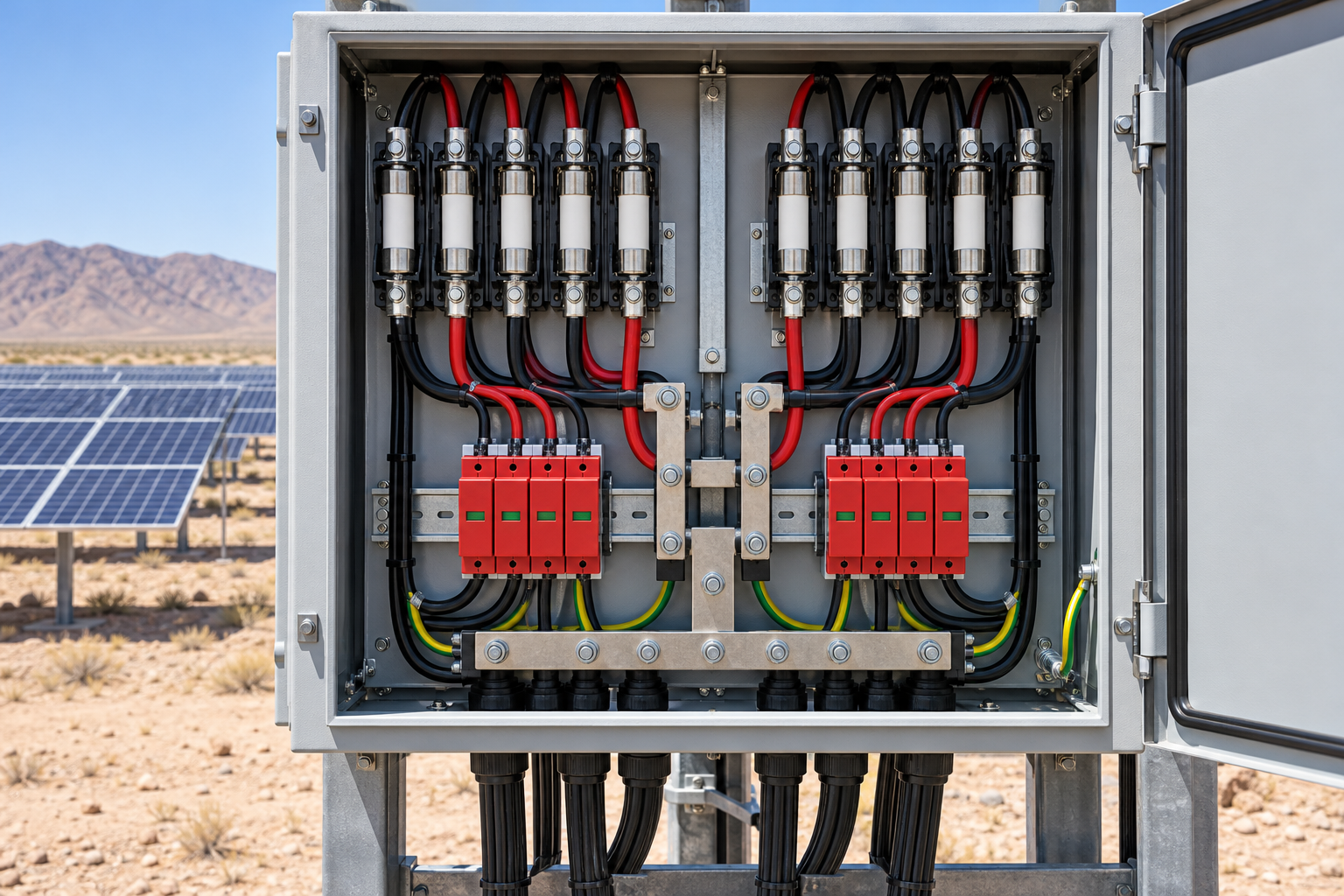

1500 V PV combiner with gPV fuses and Type 2 DC surge protection
Fig. 1 — The DC chain is designed around the 1500 V operating envelope.

3. Environmental rating

  • Enclosure specified to a high protection and corrosion class for heat and humidity.
  • Current parts derated for sustained high ambient and solar gain.
  • Sealed cable entries against humidity.
  • SPD staging reviewed for local lightning density.

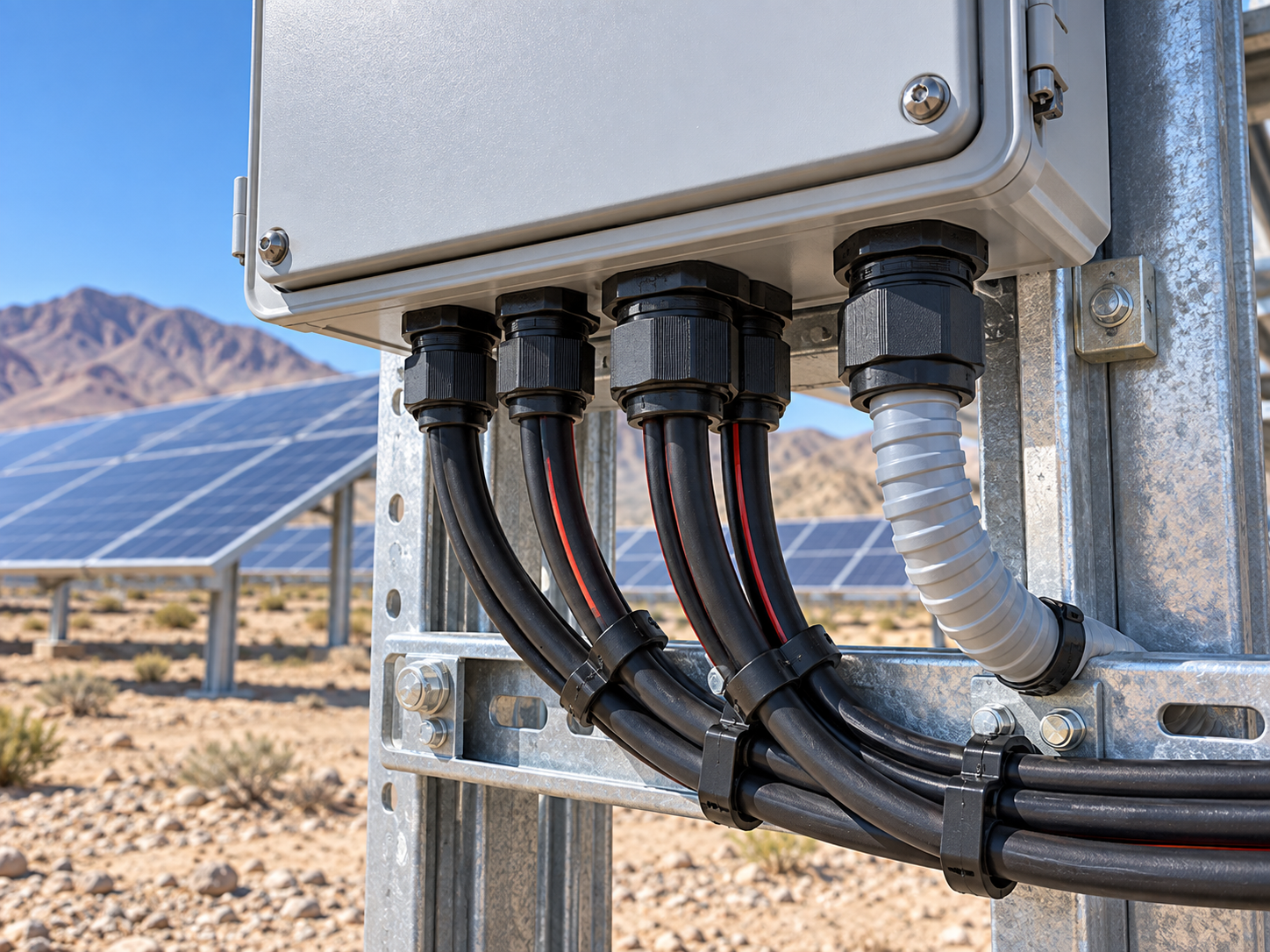

High-protection outdoor enclosure with sealed cable entries
Fig. 2 — Sealed entries and enclosure selection protect against the environmental boundary.

4. Low-voltage switchgear

NEUTRON supplied low-voltage switchgear for the AC collection side, built to IEC 61439, with a ring main unit for the controlled grid interface where required.

5. Outcome

The extreme-rated protection scope gave the plant a durable foundation in a tough Gulf climate. The lesson is that 1500 V and coastal heat must be designed in together, not added later.

Project paths

!
Engineering boundary

Final ratings, coordination, installation and applicable local requirements must be verified against current standards, manufacturer documentation and the approved project design.

Frequently asked questions

What makes Al Kharsaah protection demanding?

A hot, humid Gulf climate plus 1500 V DC means heat derating, humidity sealing and full insulation clearance must be designed together.

What rating applies to the combiner?

Maximum system voltage 1500 V DC, string short-circuit current including bifacial gain, input string count and site protection class.

Which standards apply?

IEC 62916, IEC 60269-6, IEC 60947-2, IEC 61643-31, IEC 61439 and IEC 62271.

Why staged DC SPD?

A coordinated layout where each combiner carries a Type 2 DC SPD and the plant interface adds coordinated protection against surge.

Review climate and DC envelope together.

Share the string layout, site ambient and coastal exposure for a coordinated protection review.
