PV combiner configuration family
Door-Clutch DC Combiner Boxes
Door-clutch enclosures with DC string aggregation and project-defined protection. This family groups 7 reviewed configurations by voltage, input/output topology and protection architecture.
Configuration matrix
Compare the electrical boundary before selecting a model.
Values shown are source-backed configuration identifiers. Final component selections, ratings, drawings and documents are confirmed against the project specification.

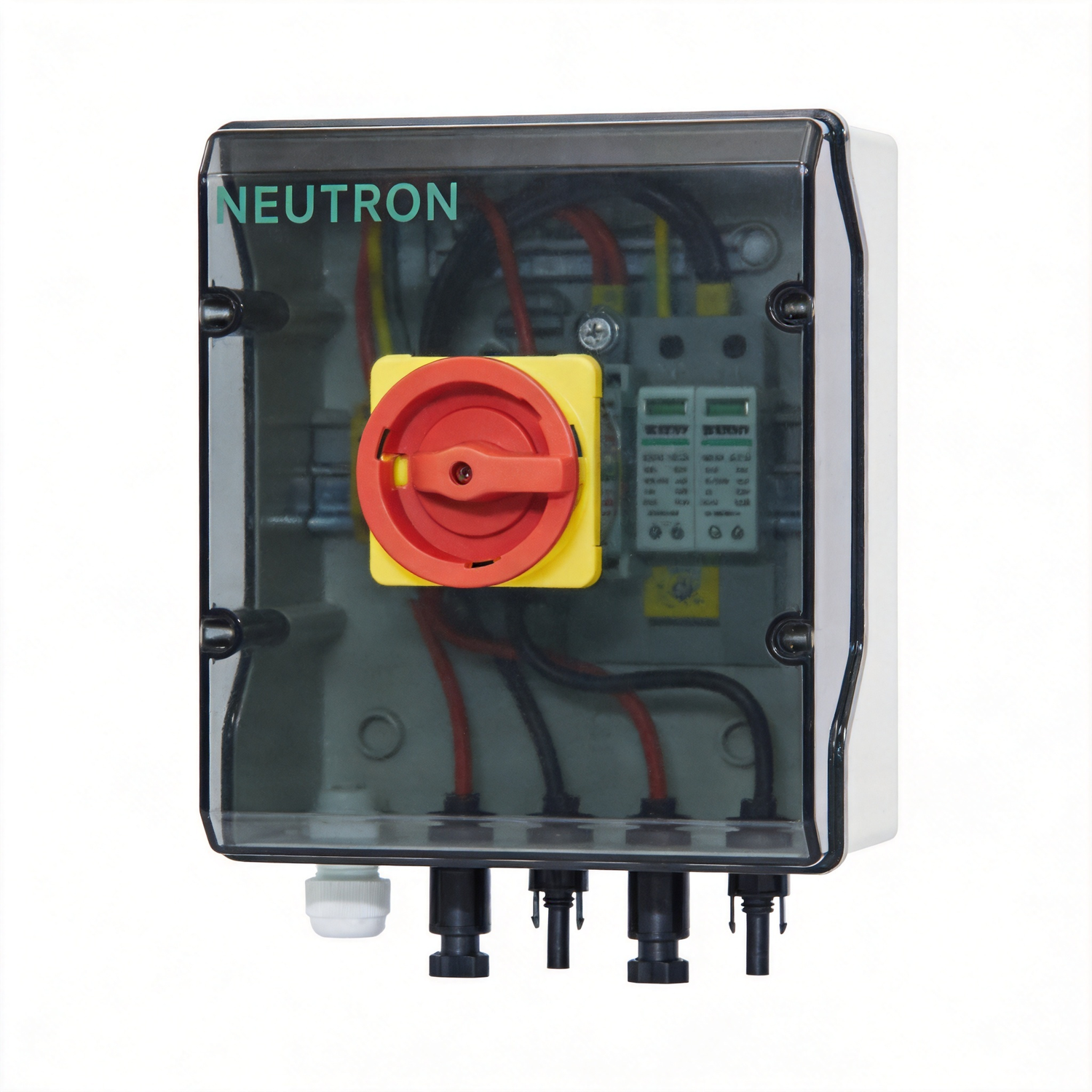

Door-clutch DC string box
- Voltage
- 600/1000V DC
- Input / output
- 1 / 1
- Arrangement
- SPD + isolator

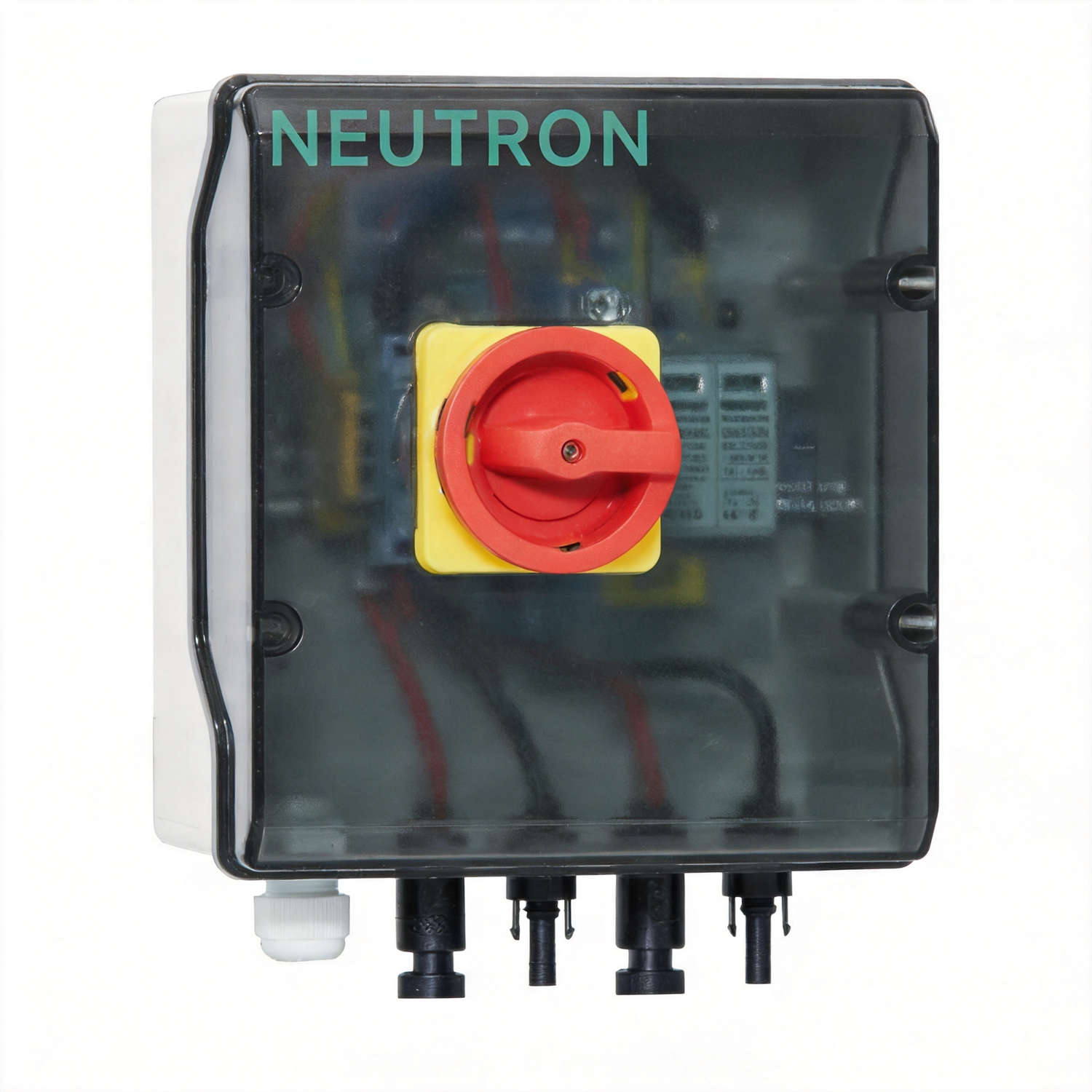

Door-clutch DC string box
- Voltage
- 600/1000V DC
- Input / output
- 2 / 1
- Arrangement
- SPD + isolator

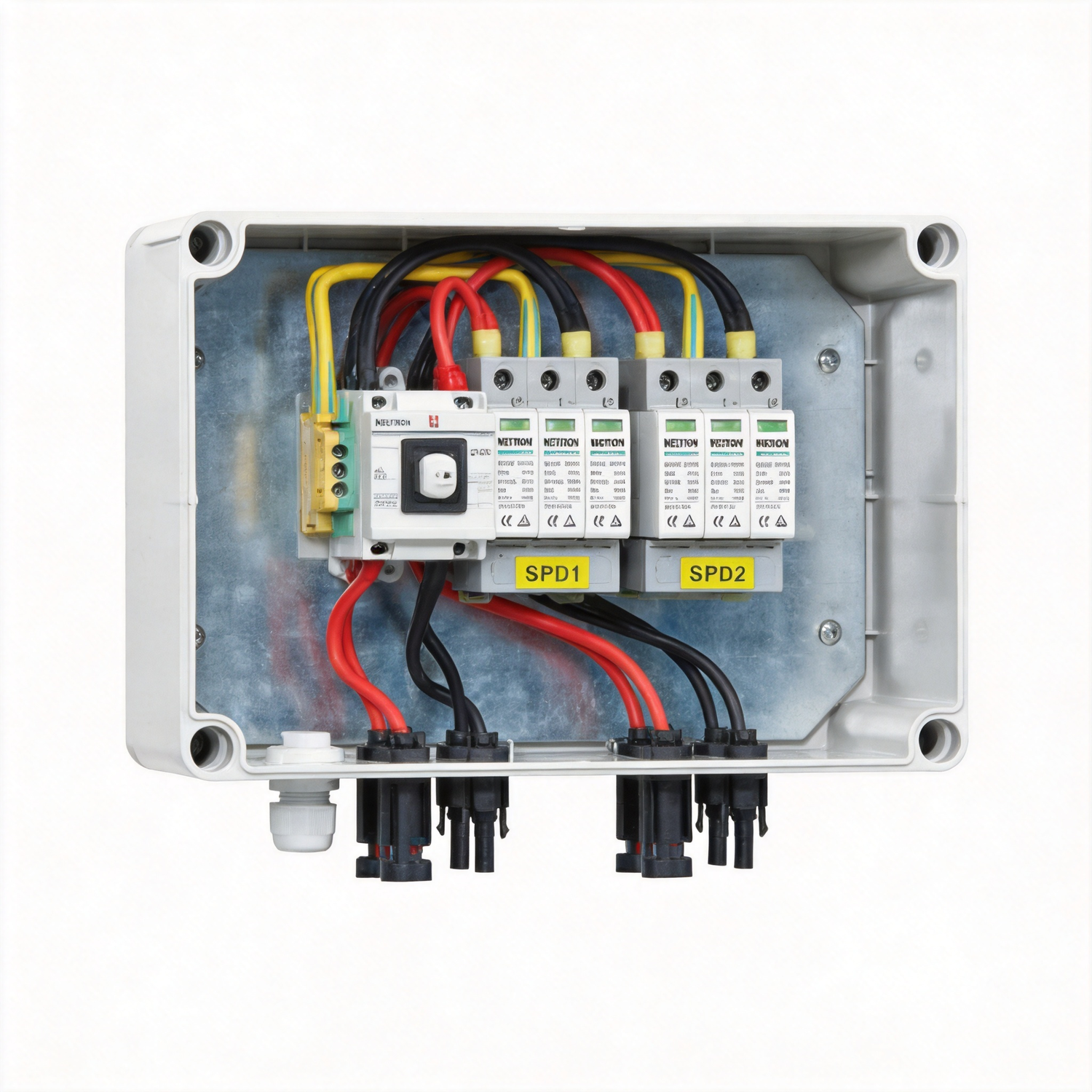

Door-clutch DC string box
- Voltage
- 600/1000V DC
- Input / output
- 2 / 2
- Arrangement
- SPD + isolator
Door-clutch DC string box
- Voltage
- 1000V DC
- Input / output
- 3 / 1
- Arrangement
- current protection + SPD + isolator

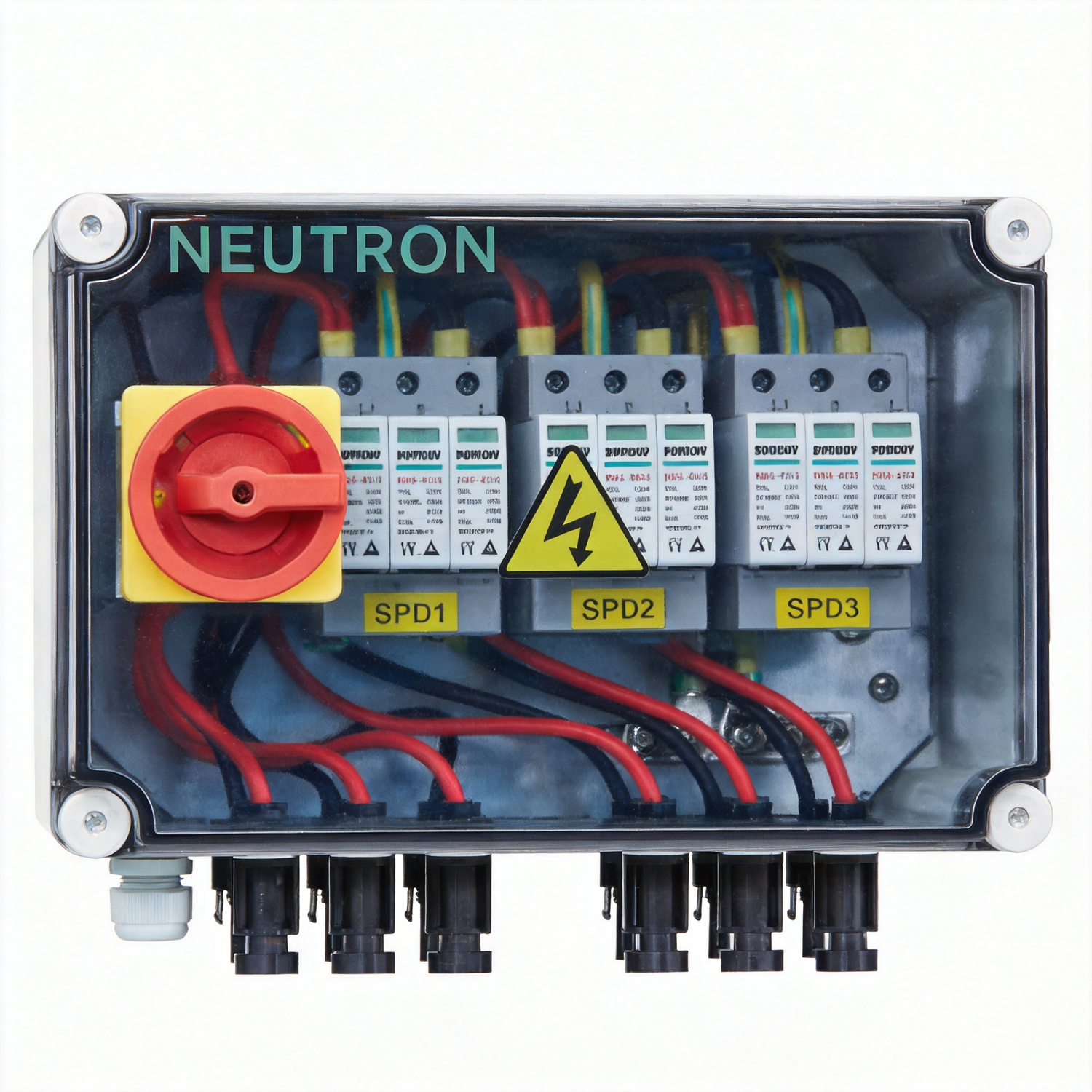

Door-clutch DC string box
- Voltage
- 600/1000V DC
- Input / output
- 3 / 3
- Arrangement
- SPD + isolator
Door-clutch DC string box
- Voltage
- 1000V DC
- Input / output
- 4 / 2
- Arrangement
- SPD + isolator

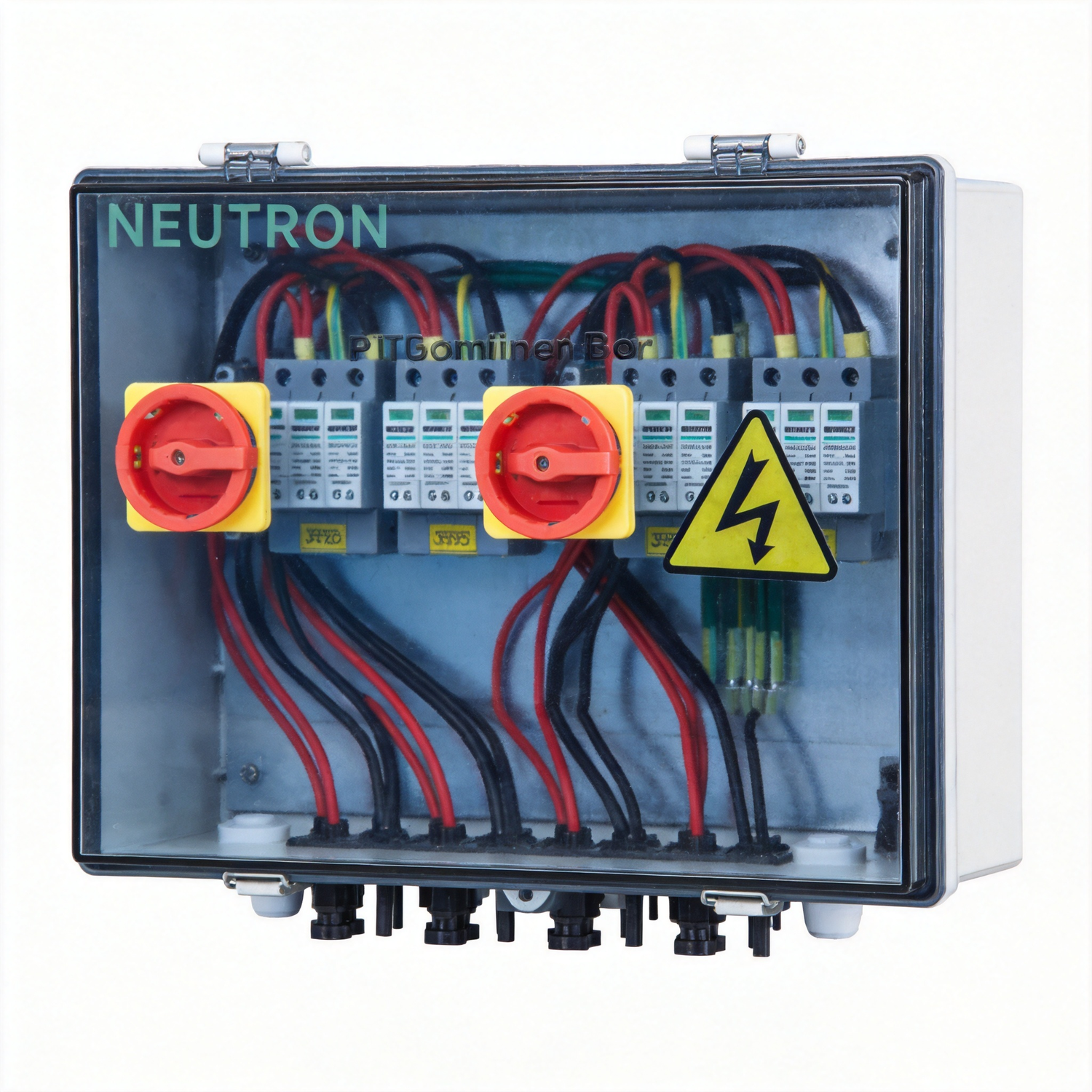

Door-clutch DC string box
- Voltage
- 1000V DC
- Input / output
- 4 / 4
- Arrangement
- SPD + isolator
