PV combiner configuration family
DC Isolator Switch Boxes
Isolation and string-side switching for defined DC circuits. This family groups 4 reviewed configurations by voltage, input/output topology and protection architecture.
Configuration matrix
Compare the electrical boundary before selecting a model.
Values shown are source-backed configuration identifiers. Final component selections, ratings, drawings and documents are confirmed against the project specification.
DC isolator switch box
- Voltage
- 1000V DC
- Input / output
- 4/2 / 4/2
- Arrangement
- isolator
DC isolator switch box
- Voltage
- 1000V DC
- Input / output
- 3/6 / 3/6
- Arrangement
- isolator

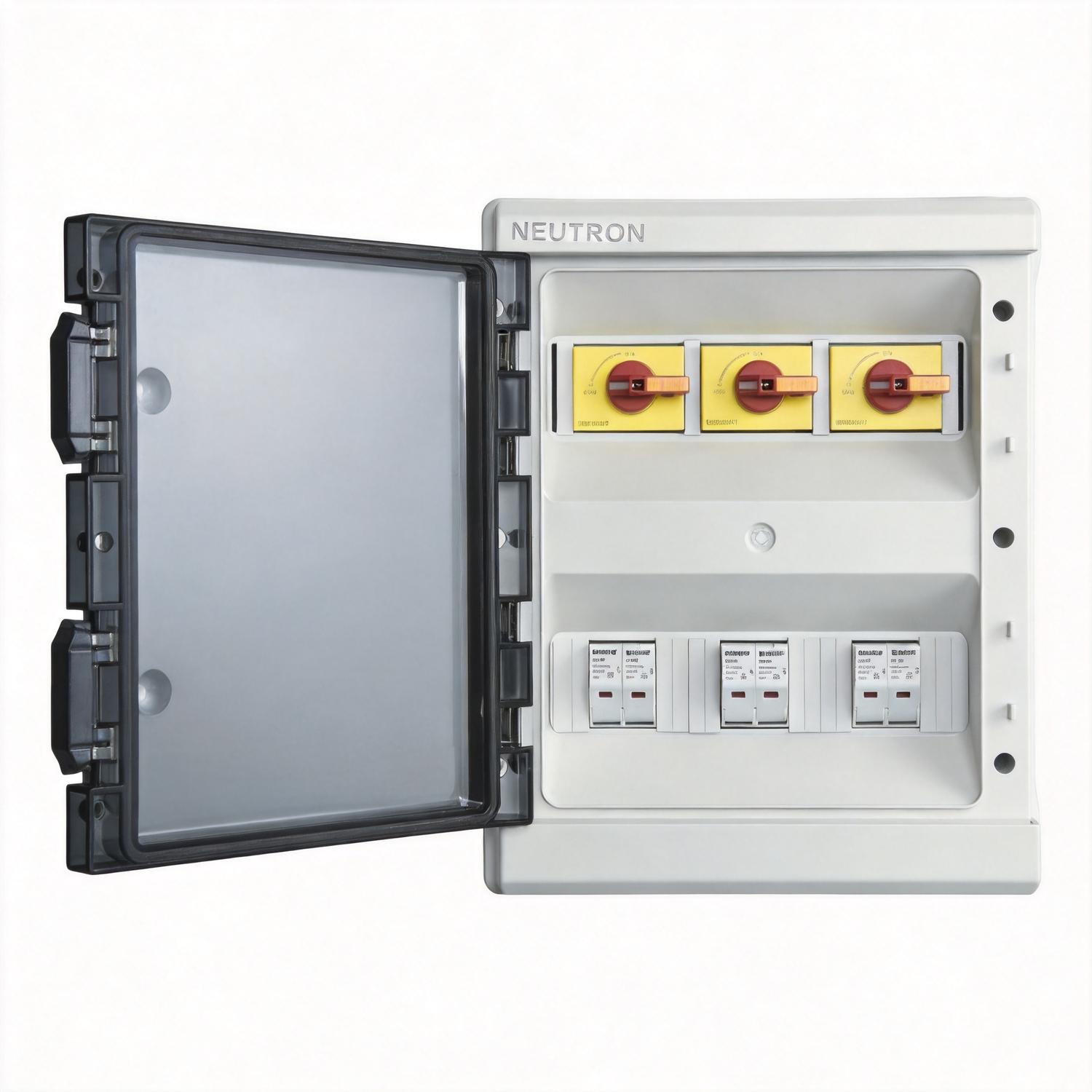

DC string box
- Voltage
- 1000V DC
- Input / output
- 3 / 3
- Arrangement
- fuse + isolator
DC string box
- Voltage
- 1000V DC
- Input / output
- 6 / 6
- Arrangement
- isolator
