PV combiner configuration family
AC Distribution and Protection Boxes
AC distribution, RCD and contactor arrangements for downstream PV interfaces. This family groups 5 reviewed configurations by voltage, input/output topology and protection architecture.
Configuration matrix
Compare the electrical boundary before selecting a model.
Values shown are source-backed configuration identifiers. Final component selections, ratings, drawings and documents are confirmed against the project specification.

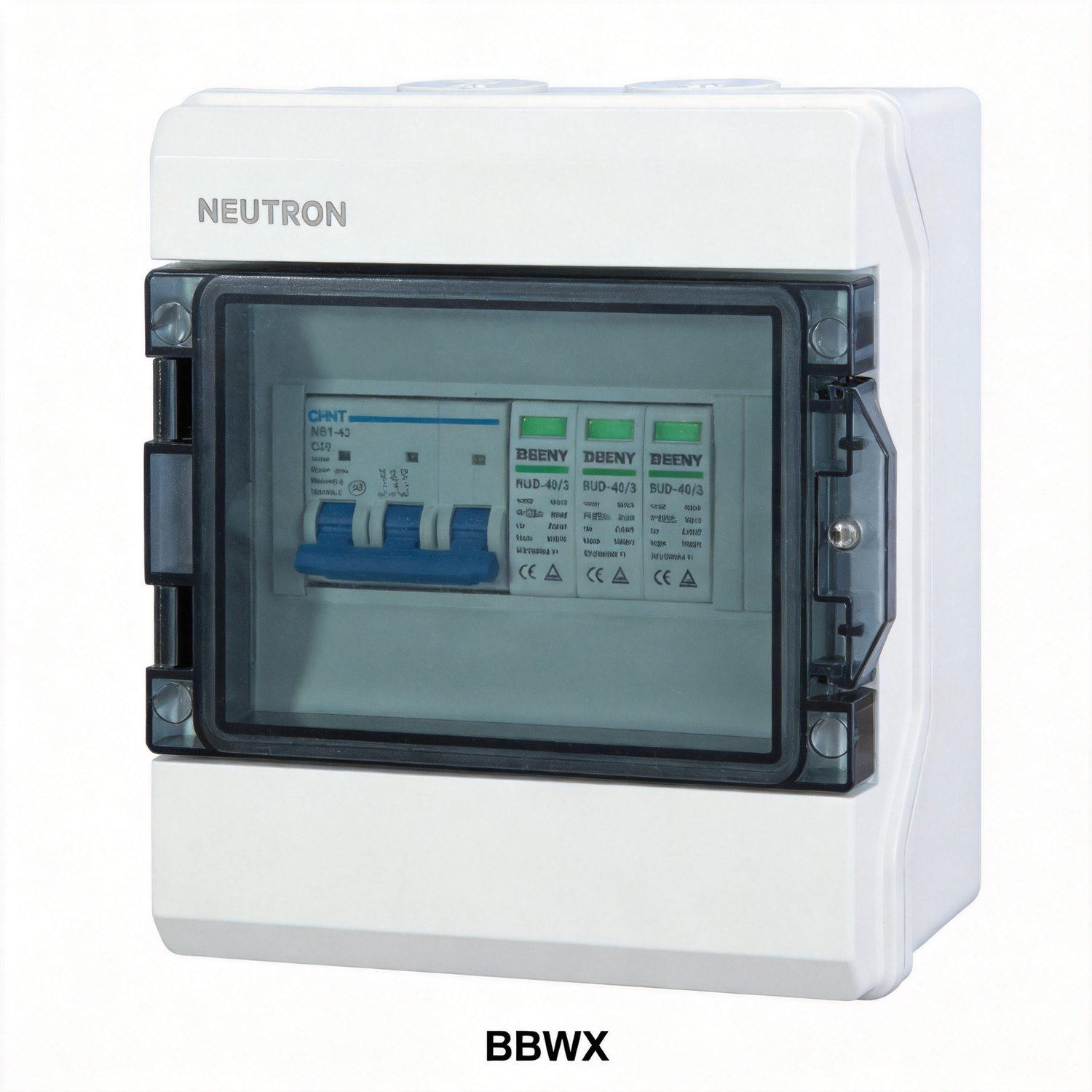

AC distribution box
- Voltage
- 220/400V AC
- Input / output
- - / -
- Arrangement
- AC SPD + control

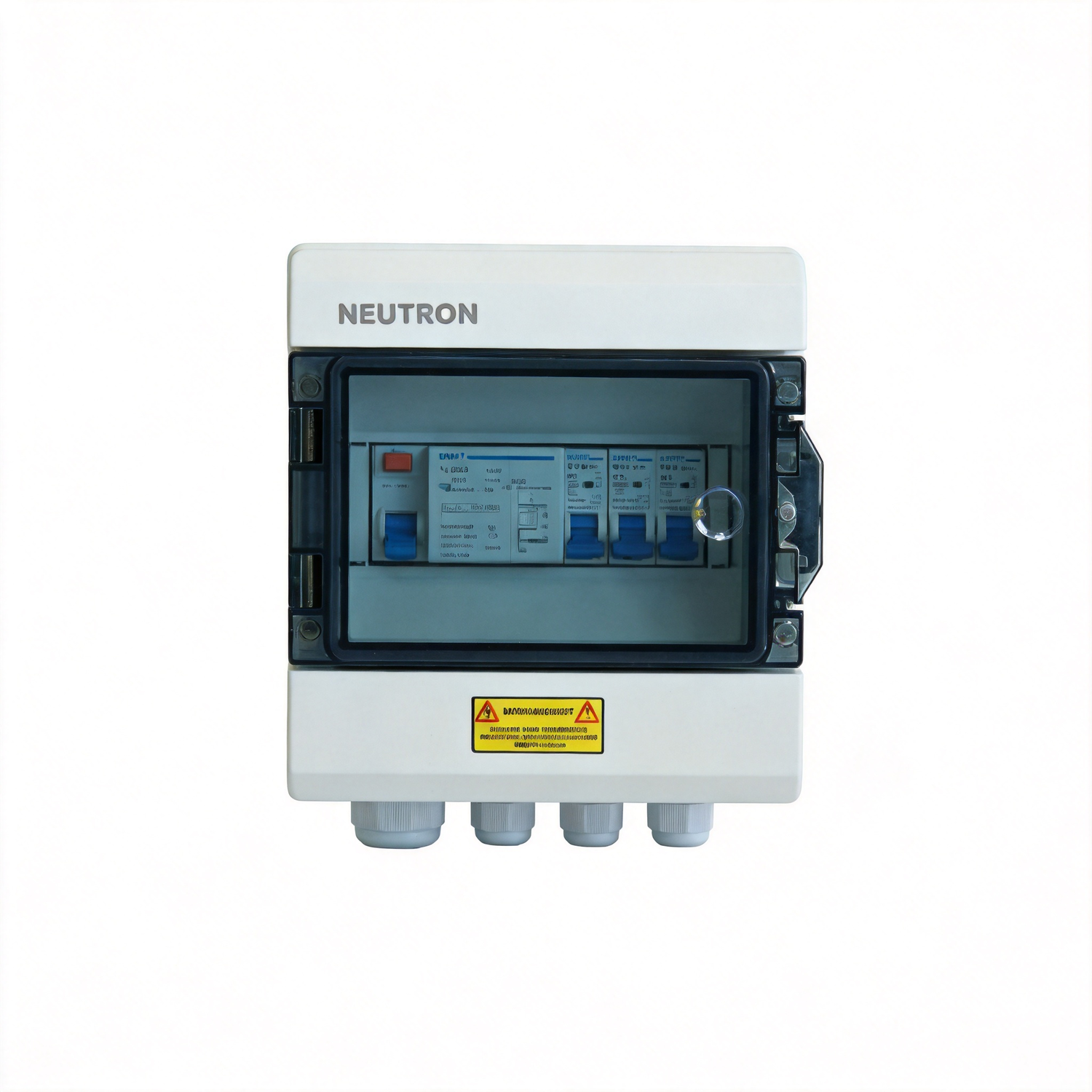

Type B RCD box
- Voltage
- 400V AC
- Input / output
- 1 / 1
- Arrangement
- Type B RCD + MCB

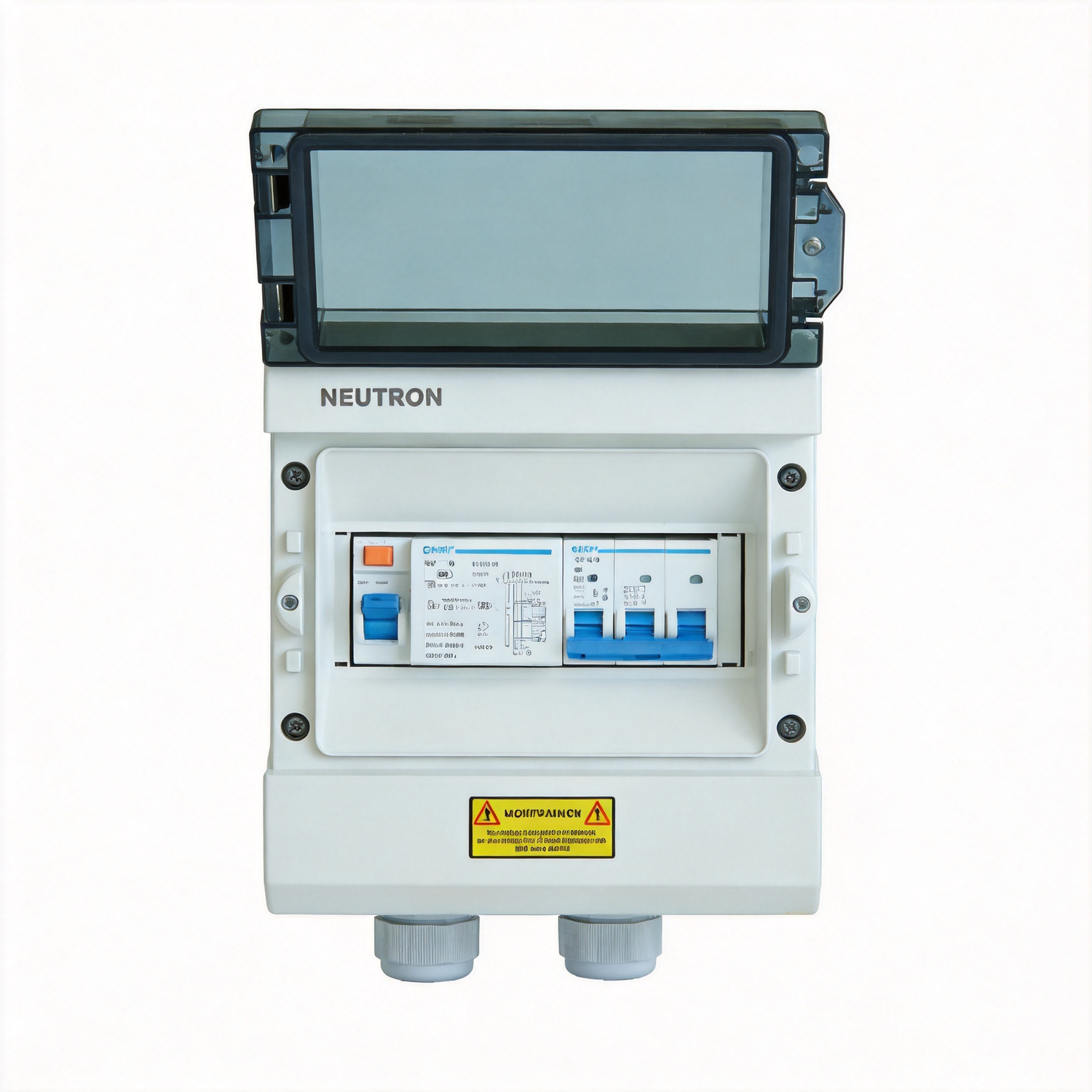

Type B RCD box
- Voltage
- 400V AC
- Input / output
- 1 / 3
- Arrangement
- Type B RCD + MCB

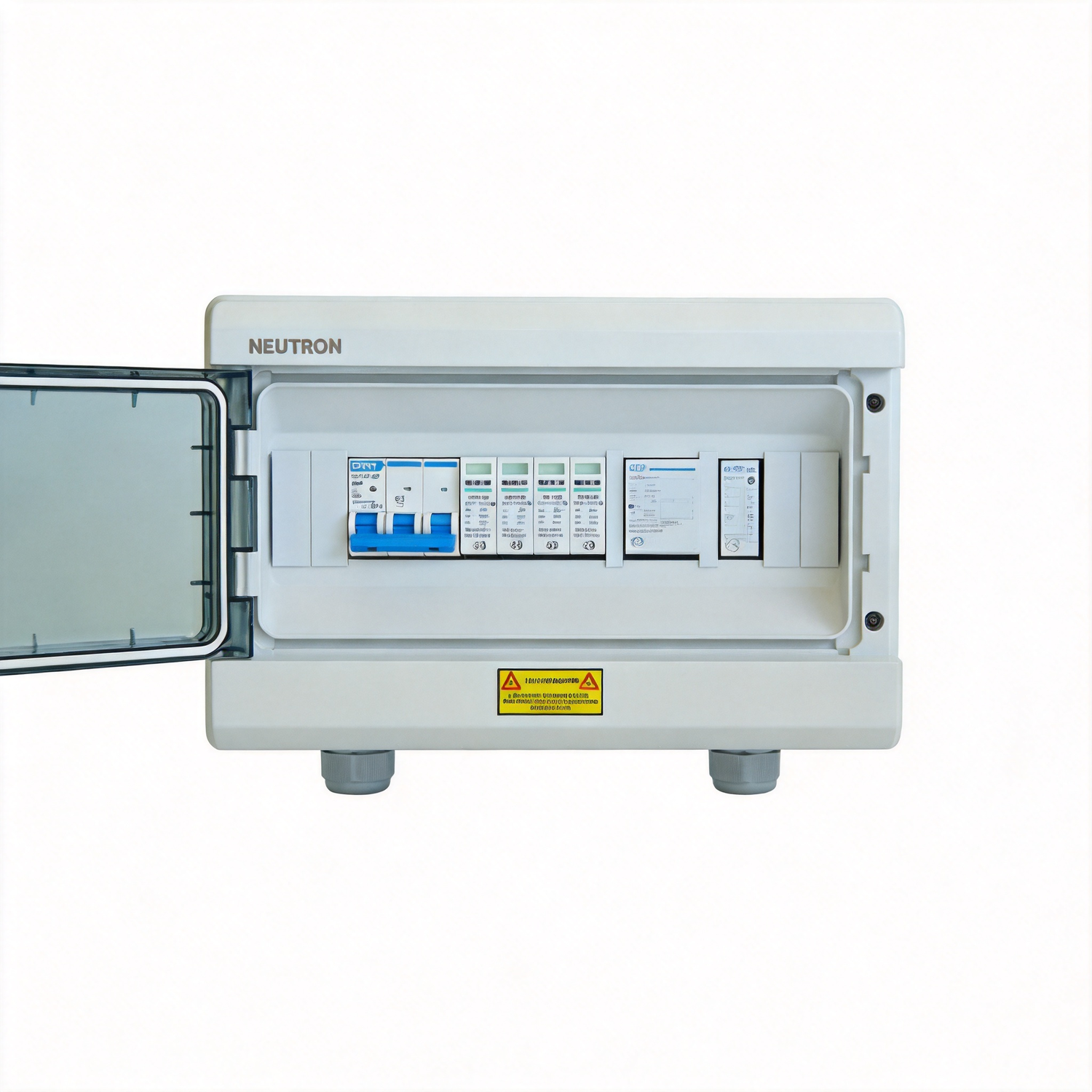

AC contactor box
- Voltage
- 400V AC
- Input / output
- 1 / 1
- Arrangement
- MCB + contactor + SPD

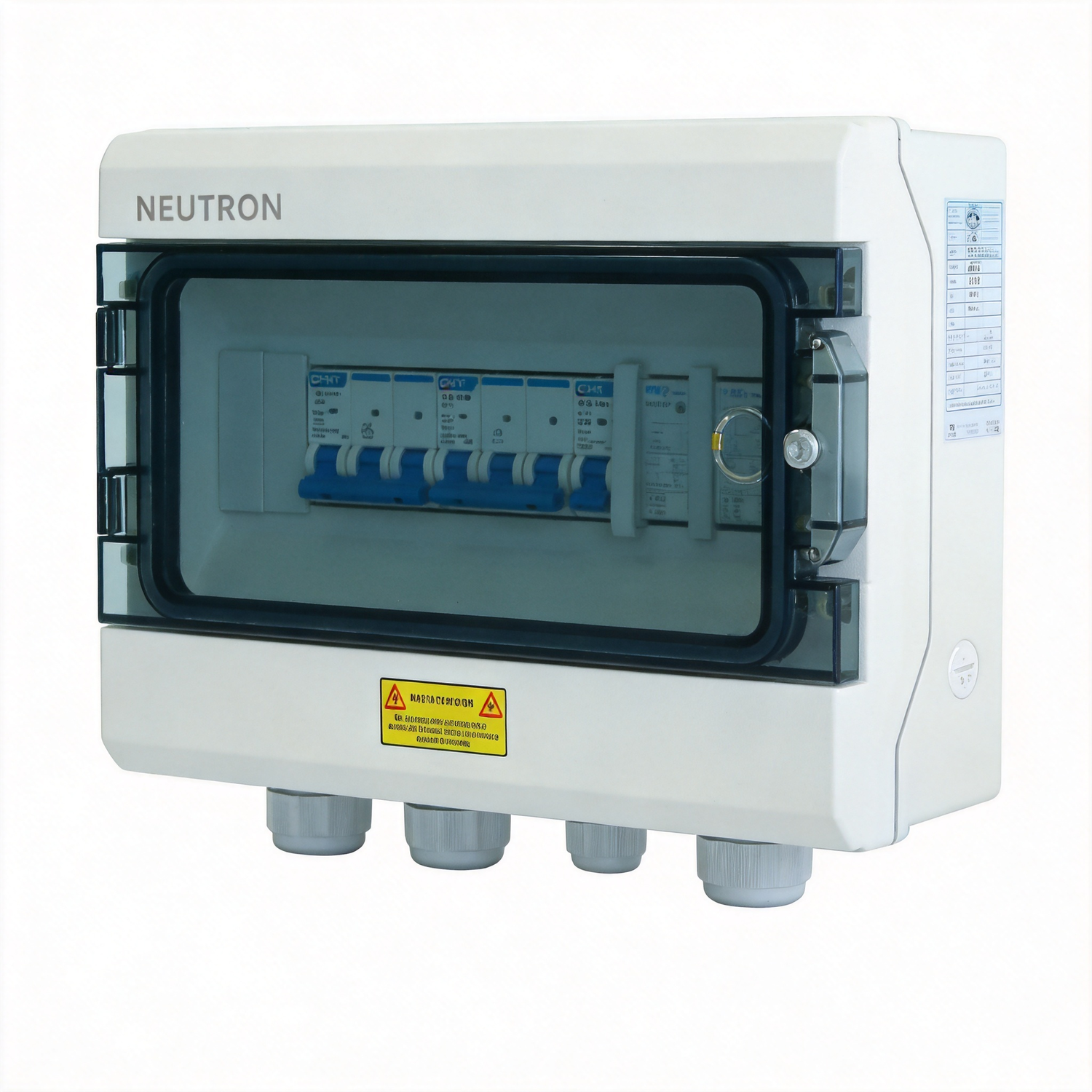

AC contactor box
- Voltage
- 400V AC
- Input / output
- 1 / 3
- Arrangement
- MCB + contactor
