Coastal Heat and Humidity: NEUTRON Protection Scope for the Basra 1 GW Solar Plan

Southern Iraq around Basra combines extreme heat with coastal humidity, a demanding pair for PV protection. NEUTRON scoped the combiner layer, DC protection chain and corrosion-class enclosures for a large Basra solar plant, with inverters and modules to be integrated by the EPC.

NEUTRON Engineering TeamUpdated September 16, 20264 min readTechnical application guidance
Generic solar rows and a closed enclosure on a flat dry southern Iraqi plain under hot haze
Fig. 0 — Heat exposure is a key consideration when selecting and positioning solar protection equipment.

Key takeaways

  • The coastal-rated protection scope gives a large Basra plant a durable foundation. The lesson is that heat and salt mist must be designed in together for southern Iraq.
  • Treat headline ratings as an engineering input, then confirm the final configuration against the project drawings and applicable local requirements.
  • Keep the approved component list, critical interfaces and required test or document deliverables visible before production begins.

1. Extreme heat meets salt mist

Basra climate is among the hottest, with added coastal humidity. Equipment needs both heat derating and a corrosion class for salt mist.

2. Combiner and DC protection

  • PV combiner boxes rated to 1500 V DC with individual gPV fuse protection.
  • DC disconnect switches and Type 2 DC SPDs staged to the 1500 V envelope.
  • DC MCBs for auxiliary and monitoring circuits.

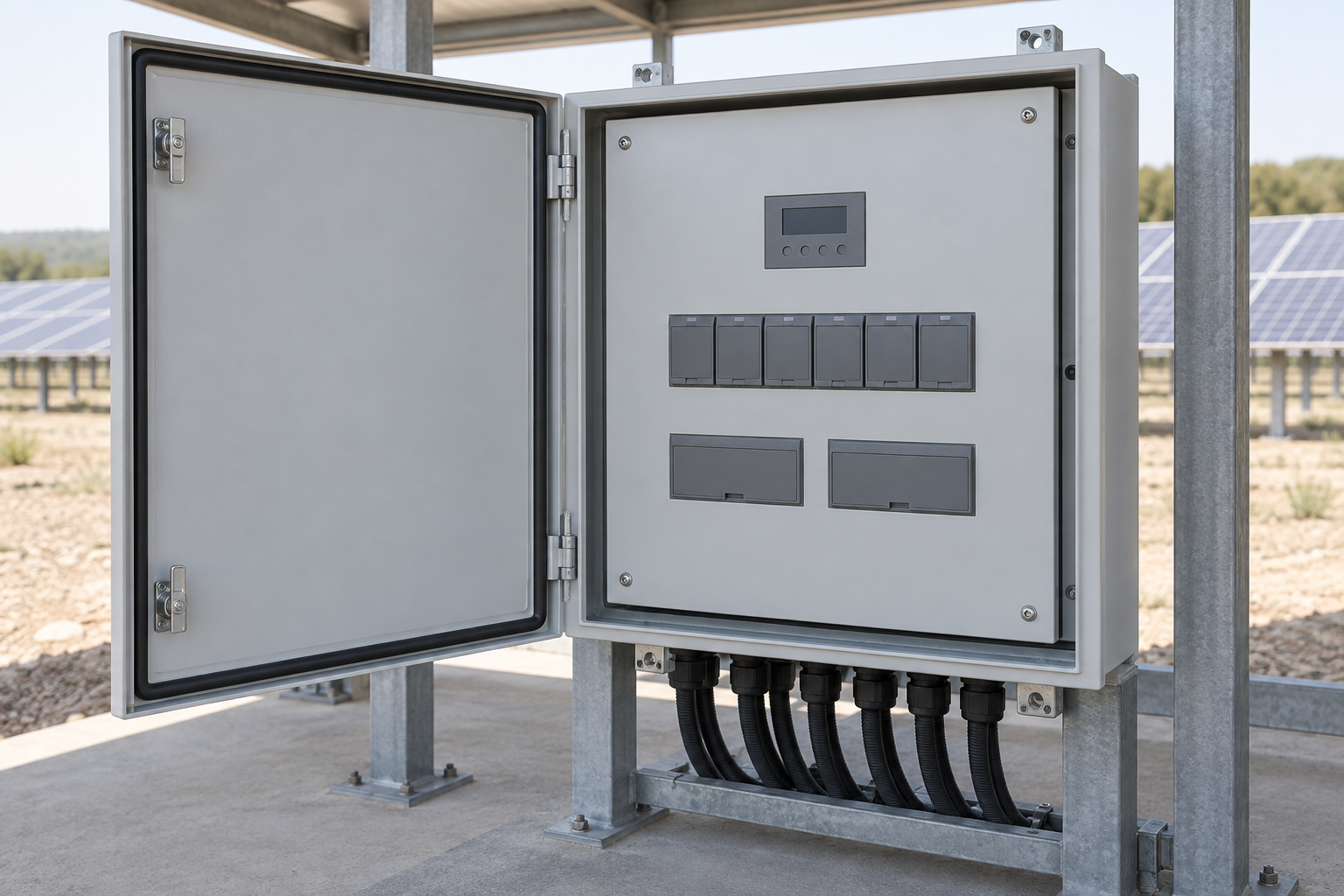

Generic PV combiner enclosure with its outer door open and an intact protective dead-front panel
Fig. 1 — Covered device faces and accessible operating controls support orderly inspection of the combiner assembly.

3. Corrosion-class enclosures

  • Enclosures specified to a corrosion class for salt mist.
  • Coated parts and sealed gaskets.
  • Humidity-sealed cable entries.

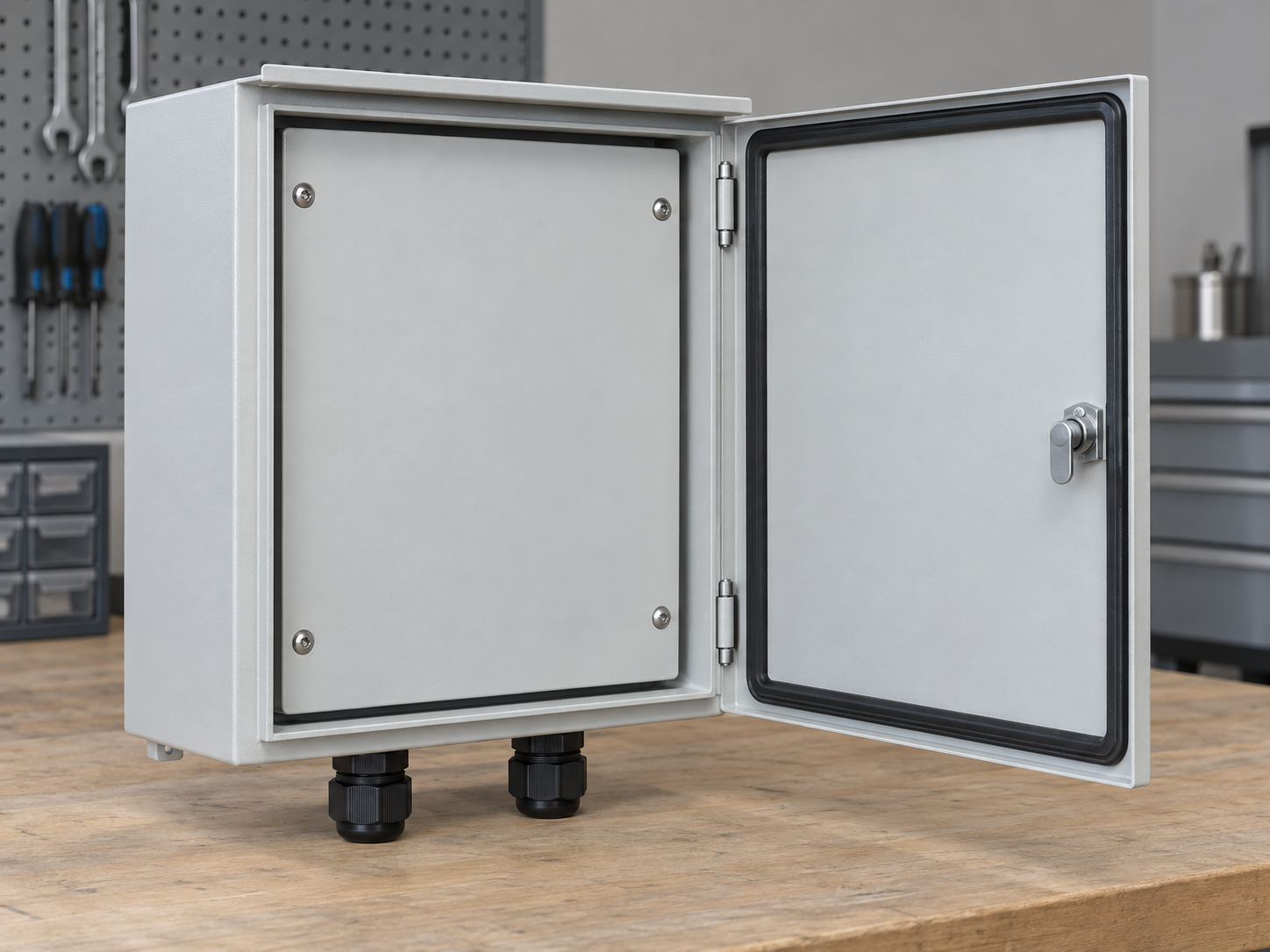

Complete generic enclosure and open door showing a continuous gasket coated edges and sealed cable entries
Fig. 2 — Continuous door gaskets and sealed cable entries are important inspection points for enclosure maintenance.

4. Staged surge protection

NEUTRON applied a staged SPD scheme with a Type 2 DC SPD in each combiner and coordinated protection at the plant interface, reviewed against local lightning density and soil conditions.

5. Outcome

The coastal-rated protection scope gives a large Basra plant a durable foundation. The lesson is that heat and salt mist must be designed in together for southern Iraq.

Project paths

!
Engineering boundary

Final ratings, coordination, installation and applicable local requirements must be verified against current standards, manufacturer documentation and the approved project design.

Frequently asked questions

Why corrosion-class enclosures at Basra?

Coastal salt mist accelerates corrosion and humidity changes DC leakage, so enclosures need a marine-adjacent rating.

What is staged DC SPD?

A coordinated layout where each combiner carries a Type 2 DC SPD and the plant interface adds coordinated protection.

Which standards apply?

IEC 60269-6, IEC 61643-31, IEC 62916, IEC 60947-2 and IEC 61439.

What rating applies to the combiner?

Maximum system voltage 1500 V DC, string short-circuit current including bifacial gain, input string count and site protection class.

Review the environmental duty before configuration.

Share the string configuration, site conditions and grid-interface requirement for a coordinated protection review.
