Reliable Solar Power for Yemen Clinics: NEUTRON DC Protection Case

A coordinated DC and AC protection scope for PV systems serving critical health-facility loads.

NEUTRON Engineering TeamUpdated September 8, 20266 min readTechnical application guidance
Roof solar array and protected energy enclosure at a community health facility
Fig. 0 — The system context joins the rooftop array, energy equipment and protected critical load.

Key takeaways

  • For critical solar loads, clean isolation and fast, selective fault clearing take priority over lowest cost.
  • Treat headline ratings as an engineering input, then confirm the final configuration against the project drawings and applicable local requirements.
  • Keep the approved component list, critical interfaces and required test or document deliverables visible before production begins.

1. Critical load profile

A typical clinic solar system must sustain a vaccine cold-chain fridge, consultation lighting, a small autoclave or device load, and sometimes a water pump. Because the fridge is the life-safety load, the protection design prioritises clean isolation and fast, selective fault clearing over lowest cost.

2. NEUTRON DC protection chain

  • Roof combiner box collecting the strings with individual gPV fuse protection.
  • DC isolation switch for safe maintenance of the array.
  • DC surge protective device matched to the system voltage (IEC 61643-31).
  • Conductor and busbar rating verified for the fused continuous current.
Roof-array PV combiner enclosure with DC isolation and fuse protection

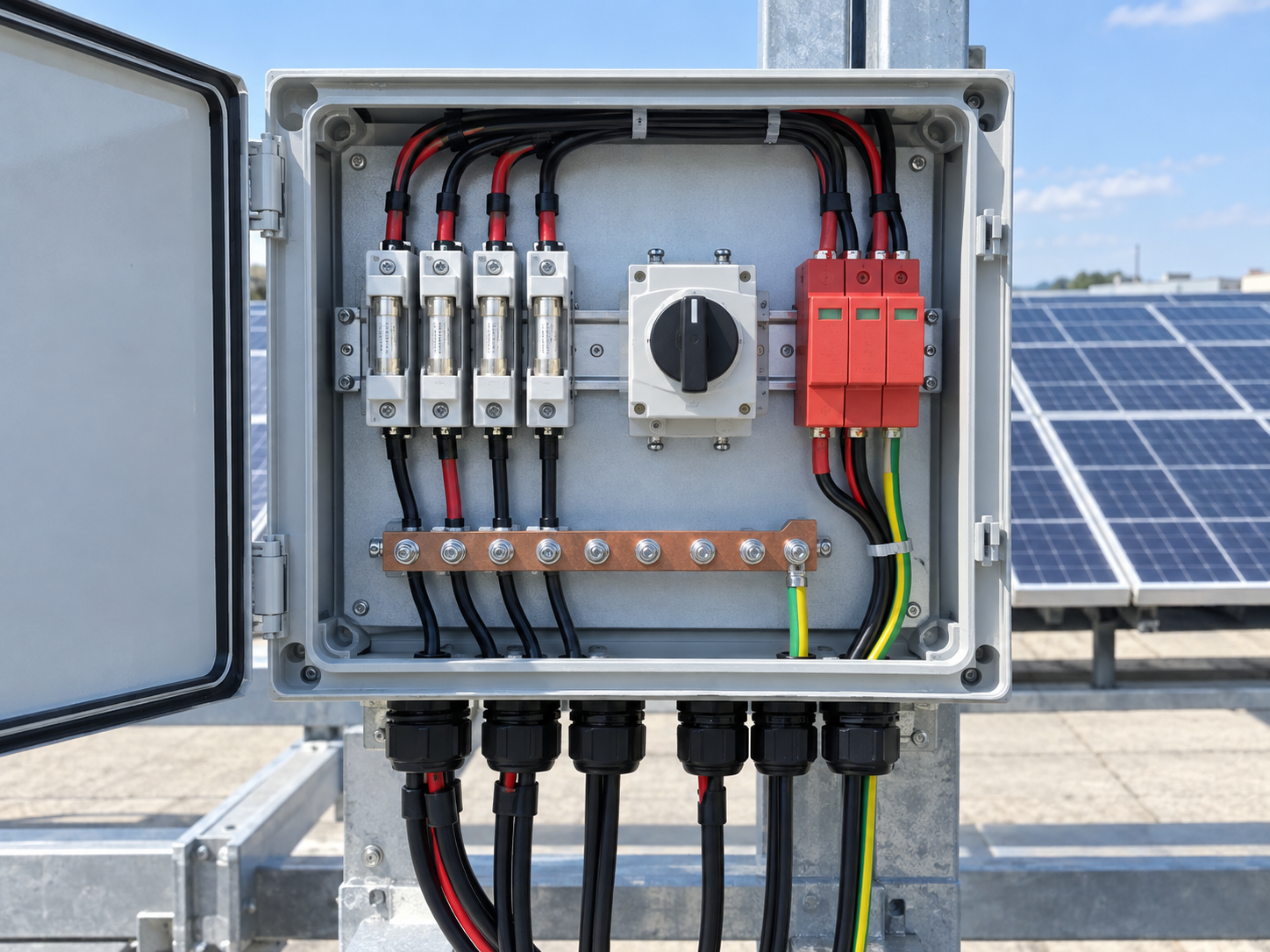

Fig. 1 — The roof-side combiner contains the array protection chain before the inverter.

3. AC side: RCCB / RCBO for safety

The inverter output feeds an AC distribution board where NEUTRON installed RCCB or RCBO protection for person shock safety. Where the board also carries the inverter's smooth-DC leakage path, a Type B RCBO was selected so the residual-current protection stays effective. Overcurrent protection was coordinated so a local fault clears without dropping the vaccine fridge circuit.

AC distribution board with residual-current and circuit protection

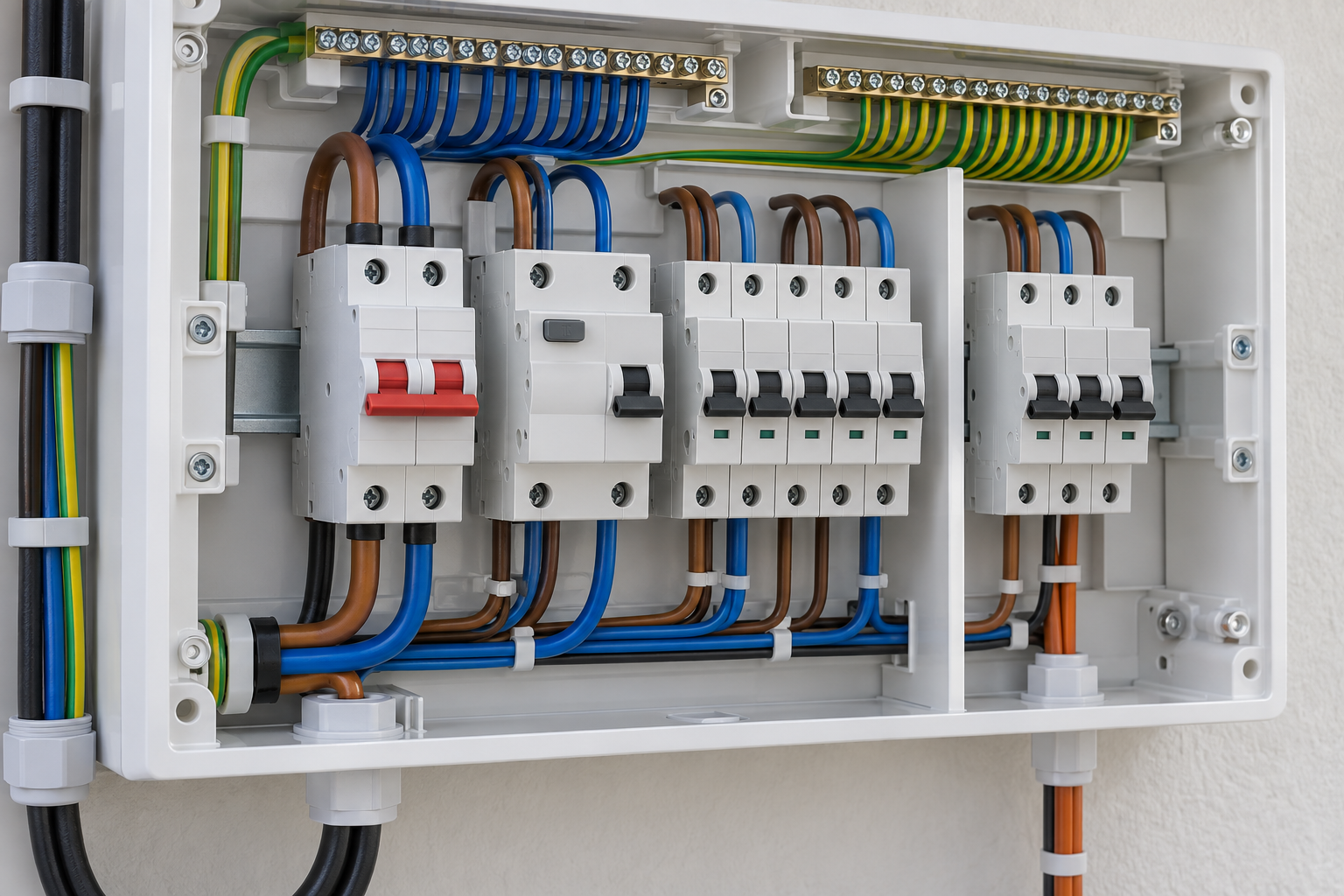

Fig. 2 — The AC board coordinates person-shock and local overcurrent protection.

4. Coordination with EPC-supplied inverter and battery

NEUTRON did not supply the inverter or battery. The protection scope was instead coordinated to the EPC's equipment ratings: the combiner and DC fuse limits were matched to the array the inverter expects, and the AC board was sized to the inverter output and the priority loads. This division let the programme procure storage and power conversion separately while keeping the protection layer consistent and serviceable.

5. Reliability and maintenance

  • Labelled, simple boards so local technicians can isolate and test without specialist tools.
  • RCBO test buttons confirmed during commissioning and on a scheduled interval.
  • Spare gPV fuses stocked locally to restore a faulted string quickly.
  • Insulation-resistance check on the array before each rainy-season recommissioning.

6. Deployment at scale

The same protection bill of materials was repeated across many facilities — clinics, schools and water wells — so spare parts, training and commissioning stayed uniform. Standardising the NEUTRON protection layer across sites cut the maintenance burden for the programme's field teams.

7. Outcome

With the DC and AC protection coordinated, the clinic systems rode through grid outages and local faults without losing the cold-chain load to a protection error. The repeatable, serviceable protection design is now the reference template for similar health and education facilities in the programme.

Project paths

!
Engineering boundary

Final ratings, protection coordination, installation and applicable local requirements must be verified against current standards, manufacturer documentation and the approved project design.

Frequently asked questions

Why does DC protection matter for clinic solar?

The array can present fault current and smooth DC that AC breakers will not clear correctly; gPV fuses and a DC-rated isolator contain the DC side before it reaches the inverter.

What RCD type for medical solar systems?

Where the inverter can inject smooth DC, a Type B RCBO is used so residual-current protection stays effective; otherwise a Type A RCCB is applied per the local wiring rule.

How does NEUTRON coordinate with the EPC?

NEUTRON matches the combiner and DC fuse limits to the array the inverter expects and sizes the AC board to the inverter output and priority loads, keeping the protection layer consistent.

Which standards apply?

IEC 60269-6 (gPV fuses), IEC 61643-31 (SPD), IEC 60947-2 (DC MCB), IEC 61008/61009 (RCCB/RCBO) and IEC 61439 (switchgear).

Review the critical-load chain before quotation.

Share the array, inverter output and priority-load requirements so the protection layer can be coordinated with the EPC package.

Discuss a project
