Modular Combiner Box Design: What Change Control Requires

What modular design offers

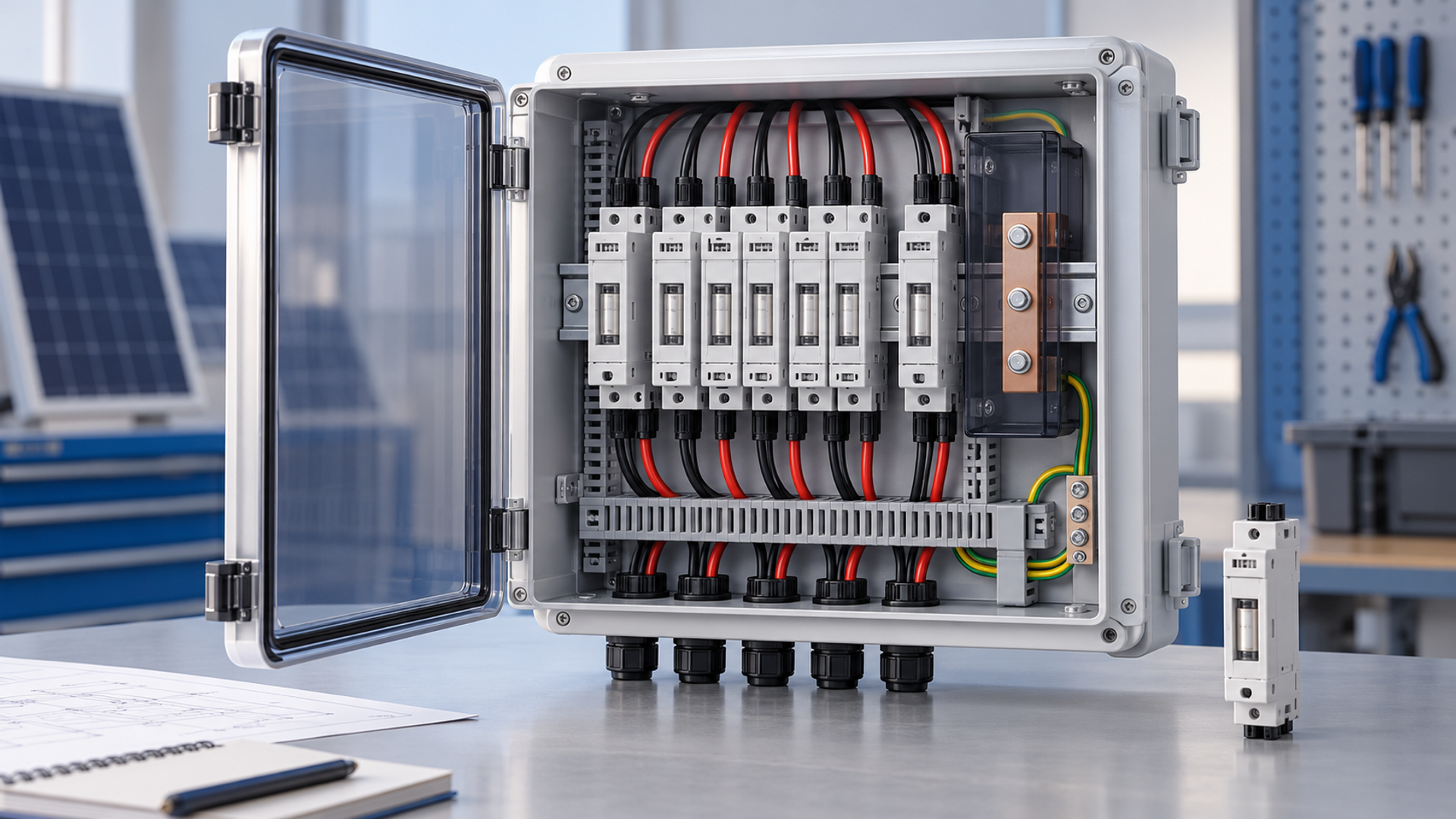

A modular combiner box uses plug-in functional units, standardized busbar sections, and configurable input counts. The benefit is easier planning and spare-part management. These gains are real but bounded by the approved model's listed configuration, not by the modular concept alone. Spares become simpler because one module type fits several positions, but the rated limit still comes from the approved datasheet rather than from the modular format.

Servicing modular units requires isolation

A removable module does not establish a safe live-replacement function. Use the exact equipment instructions to identify all supplies, the affected circuit and isolation boundaries. Adjacent PV circuits can remain energized in sunlight even when the target circuit has been isolated.

Default to de-energized replacement: apply the approved isolation and lockout procedure, release stored energy and verify absence of voltage at the work location. Any special servicing method must be expressly documented for that exact assembly and performed by qualified personnel. Do not infer permission to withdraw a fuse holder under load from the word modular.

Expansion still needs re-validation

Adding inputs or changing module type is a change, not a free extension. Each modification must pass change control: re-check busbar rating, protection coordination, cooling, and the applicable standard edition. The claim that expansion needs no re-validation is false for a changed electrical assembly. Verify against the approved NEUTRON model datasheet and test reports before the modified unit is re-energized.

Documentation and records

A modular format helps only if the as-built record stays current. Keep the original configuration, every approved change, and the re-validation result in one file. Without that record, a later engineer cannot tell a listed configuration from an unauthorized one, and the safety case collapses.

Original configuration and ratings on file.

Every approved change with the reason.

Re-validation result before re-energizing.

Change control in practice

Record the proposed modification and compare it with the manufacturer's verified assembly configuration. Reassess parallel-string contribution, conductor and busbar ratings, protective-device coordination, temperature rise and the enclosure interfaces affected by the change.

Obtain engineering approval, apply the isolation procedure and update the as-built drawings and component schedule. Complete the required inspection and verification before returning the changed circuit to service. A switch-disconnector performs its rated switching and isolation duty; fault clearing remains a separate protective-device function.
