Early Gigawatt Protection: NEUTRON Scope at Noor Abu Dhabi 1.2 GW

A coordinated 1500 V collection, low-voltage switchgear and RMU scope for a hot-climate utility PV plant.

NEUTRON Engineering TeamUpdated September 9, 20266 min readTechnical application guidance
Gigawatt-class desert PV field and step-up substation
Fig. 0 — Large-scale collection requires a clean, repeatable protection chain from string to substation.

Key takeaways

  • 1500 V combiner discipline plus selective coordination scales cleanly.
  • Treat headline ratings as an engineering input, then confirm the final configuration against the project drawings and applicable local requirements.
  • Keep the approved component list, critical interfaces and required test or document deliverables visible before production begins.

1. An early gigawatt reference

Noor Abu Dhabi was one of the early gigawatt-class solar plants in the region at about 1.2 GW. Plants of this size proved that 1500 V DC collection and disciplined protection design could be delivered at scale in a hot, dusty climate. The combiner layer is where fault current is first contained.

2. Combiner and DC protection

  • PV combiner boxes rated to 1500 V DC with individual gPV fuse protection.
  • DC MCBs for auxiliary and monitoring circuits, DC-rated per IEC 60947-2.
  • DC disconnect switches and Type 2 DC SPDs staged to the 1500 V envelope.

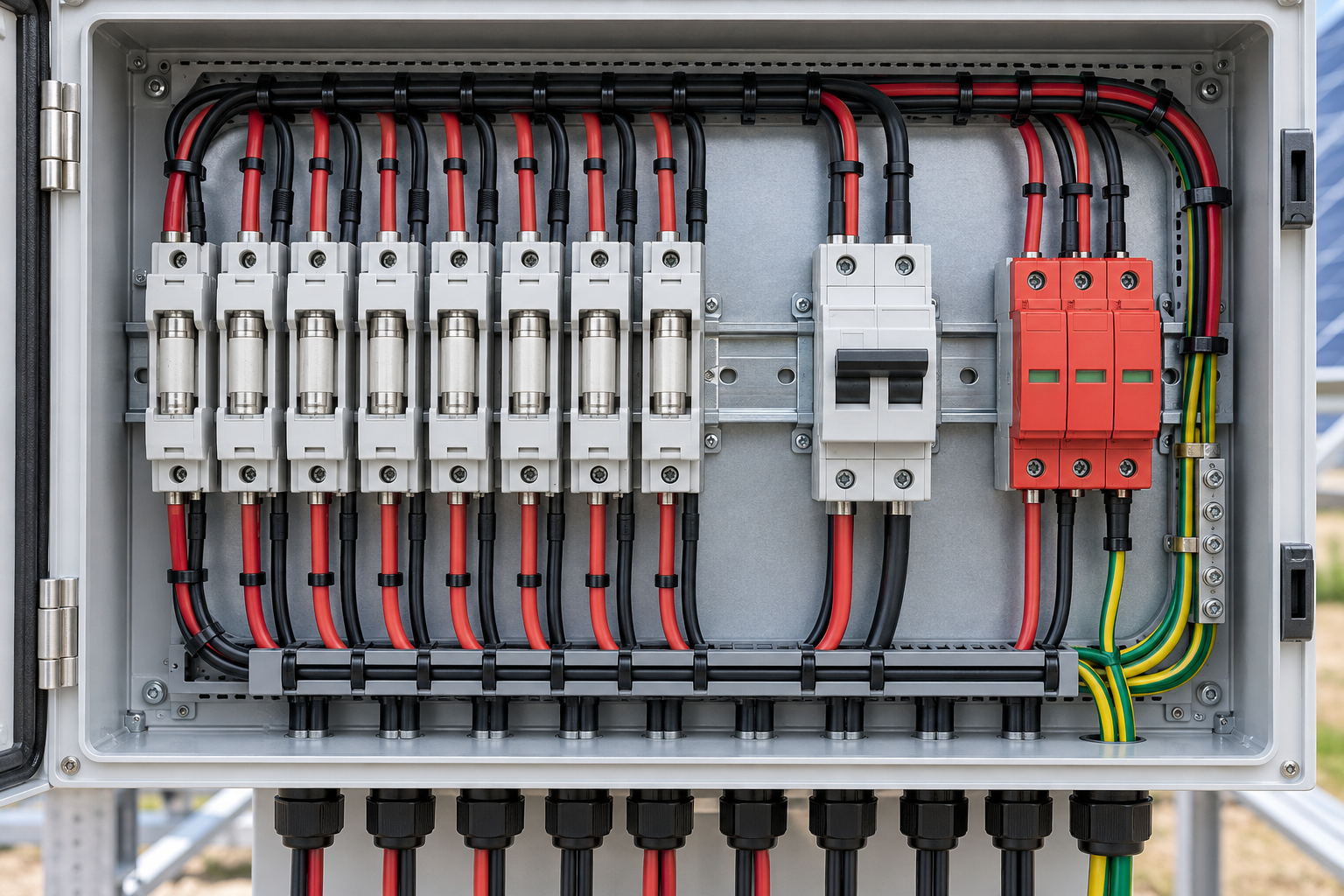

1500 V PV combiner with gPV fuses, DC MCBs and DC surge protection
Fig. 1 — String fuses, DC MCBs, isolation and surge protection are selected around the 1500 V envelope.

3. Low-voltage switchgear and RMU

At the plant substation the AC feeders terminate in NEUTRON low-voltage switchgear, with a ring main unit for the controlled grid interface and selective coordination so a fault isolates locally.

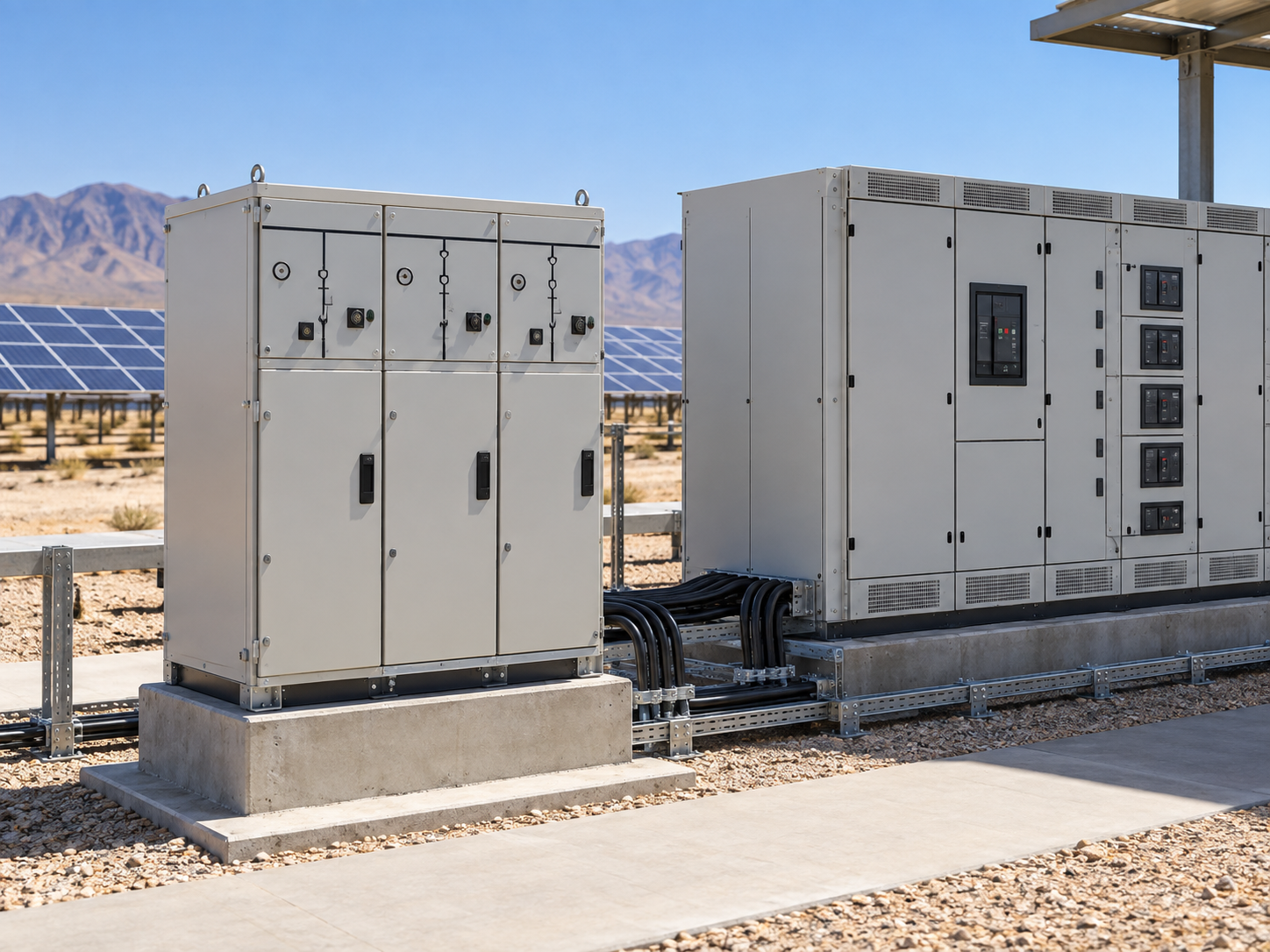

Low-voltage switchgear and ring main unit at a plant substation
Fig. 2 — Selective AC coordination protects the grid handoff without dropping the whole array.

4. Desert derating

  • Current parts derated for sustained high ambient and solar gain.
  • Enclosure to IP65 with a corrosion class for inland dust.
  • Ventilation path validated for protection devices.

5. Outcome

The protection scope performed to specification and became a reference for later regional gigawatt plants. The lesson is that 1500 V combiner discipline plus selective coordination scales cleanly.

Project paths

!
Engineering boundary

Final ratings, coordination, installation and applicable local requirements must be verified against current standards, manufacturer documentation and the approved project design.

Frequently asked questions

What protects a 1.2 GW plant?

gPV fuses per string, DC disconnect and DC SPD in every combiner, DC MCBs for auxiliaries, low-voltage switchgear and an RMU for the grid interface.

Why 1500 V combiner boxes?

Gigawatt plants standardise on 1500 V to cut current and balance-of-system cost; every device must suit that envelope.

Which standards apply?

IEC 62916, IEC 60269-6, IEC 60947-2, IEC 61643-31, IEC 61439 and IEC 62271.

How is selective coordination achieved?

gPV fuses and downstream devices are coordinated so a fault clears at the nearest point, verified against projected fault levels.

Review the collection and handoff together.

Share the string, substation and grid-interface requirements for a coordinated scope review.
