Standardized Protection Across 41 Plots: NEUTRON Scope at Benban Solar Park

A repeatable protection bill of materials supporting consistent commissioning, spares and maintenance across independent PV plots.

NEUTRON Engineering TeamUpdated September 9, 20266 min readTechnical application guidance
Large solar park divided into repeated PV plots in a desert landscape
Fig. 0 — A common protection pattern keeps many independently delivered plots serviceable.

Key takeaways

  • Repeatability beats bespoke design when many EPCs share one site.
  • Treat headline ratings as an engineering input, then confirm the final configuration against the project drawings and applicable local requirements.
  • Keep the approved component list, critical interfaces and required test or document deliverables visible before production begins.

1. Many plots, one standard

The Benban Solar Park near Aswan aggregates many independent plots into about 1.8 GW of PV. Because each plot is built by a different EPC, a standardized protection layer keeps spare parts, training and commissioning uniform across the whole park.

2. Repeatable combiner scope

  • PV combiner boxes rated to 1500 V DC with individual gPV fuse protection.
  • DC disconnect switches and Type 2 DC SPDs staged to the 1500 V envelope.
  • DC MCBs for auxiliary and monitoring circuits.

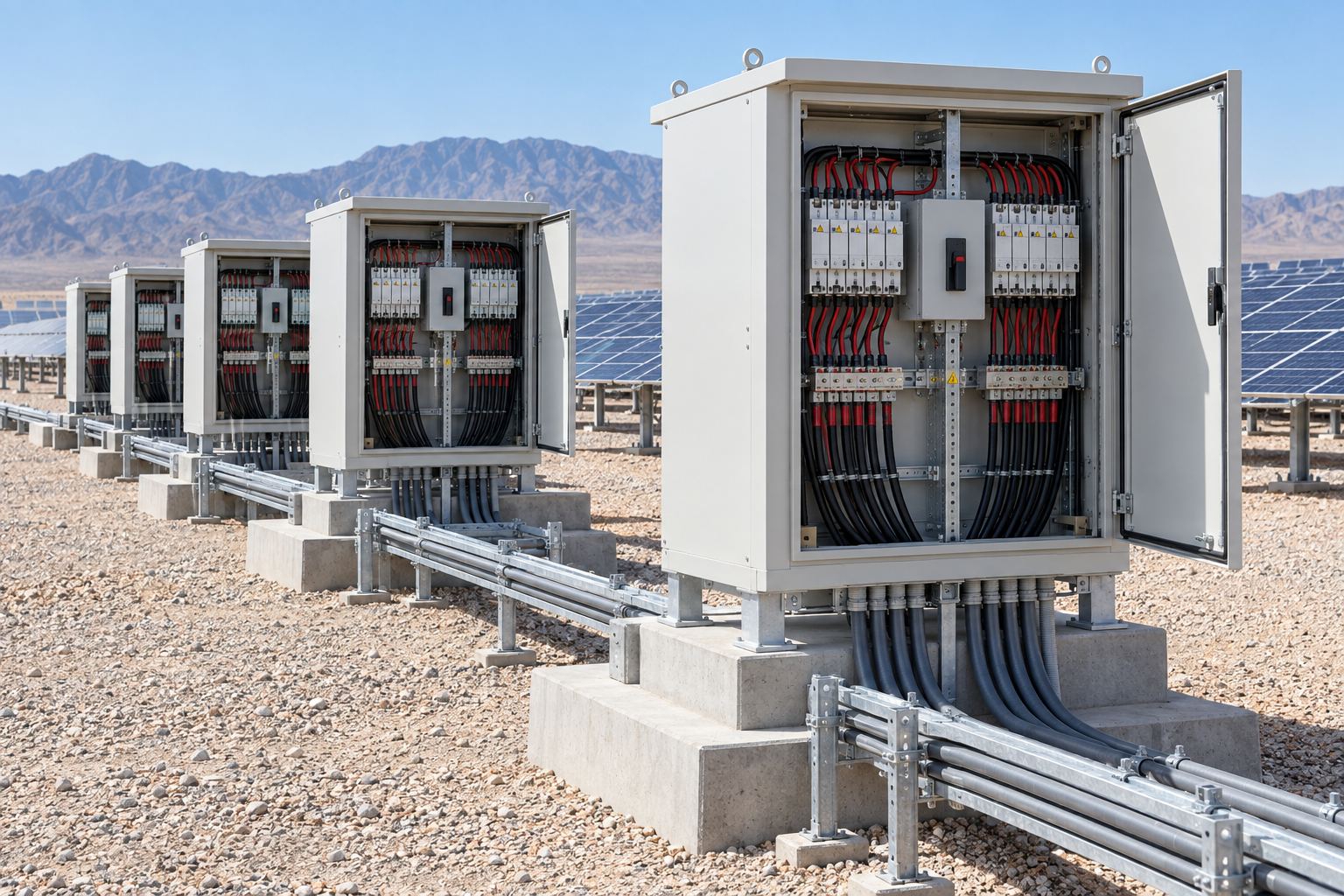

Standardized 1500 V combiner arrangement with gPV fuses and DC surge protection
Fig. 1 — A repeatable DC bill of materials standardizes fusing, isolation and surge protection.

3. Low-voltage switchgear

NEUTRON supplied low-voltage switchgear for the AC collection side of the plots, built to IEC 61439, with ring main units for the controlled grid interface where required.

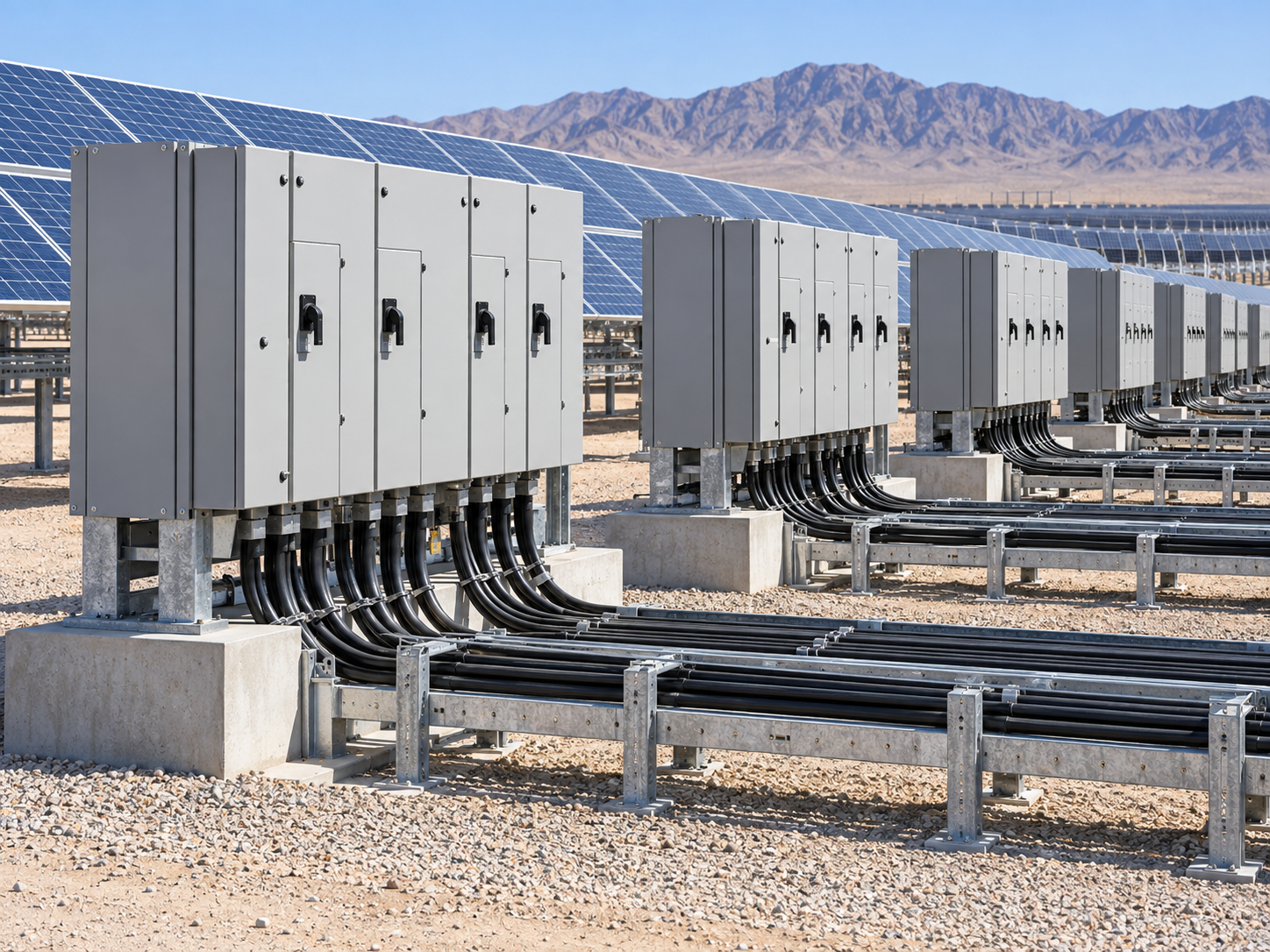

Low-voltage switchgear at a solar-park collection interface
Fig. 2 — Consistent AC collection equipment supports the same maintenance approach across plots.

4. Desert and dust specification

  • Enclosure to IP65 with a corrosion class for Aswan dust.
  • Current parts derated for high ambient temperature.
  • SPD staging reviewed for local lightning density.

5. Outcome

The standardized protection layer cut the maintenance burden across the park and gave every plot a consistent, serviceable foundation. The lesson is that repeatability beats bespoke design when many EPCs share one site.

Project paths

!
Engineering boundary

Final ratings, coordination, installation and applicable local requirements must be verified against current standards, manufacturer documentation and the approved project design.

Frequently asked questions

How do you protect a 41-plot park?

With a repeatable combiner and DC protection bill of materials applied uniformly so spare parts and training stay consistent.

What does NEUTRON supply at Benban?

PV combiner boxes, DC disconnect and SPD, DC MCBs and low-voltage switchgear; inverters and modules come from the plot EPCs.

Which standards apply?

IEC 62916, IEC 60269-6, IEC 60947-2, IEC 61643-31, IEC 61439 and IEC 62271.

Why standardize across plots?

Consistent protection equipment simplifies operation and maintenance when many EPCs build one park.

Review your common bill of materials.

Share the plot topology, string inputs and collection interfaces for a repeatable protection review.
