Multi-Technology Park Protection: NEUTRON Scope at Mohammed bin Rashid Solar Park

A consistent PV DC and AC protection layer for a solar park where multiple generation technologies share one site.

NEUTRON Engineering TeamUpdated September 9, 20266 min readTechnical application guidance

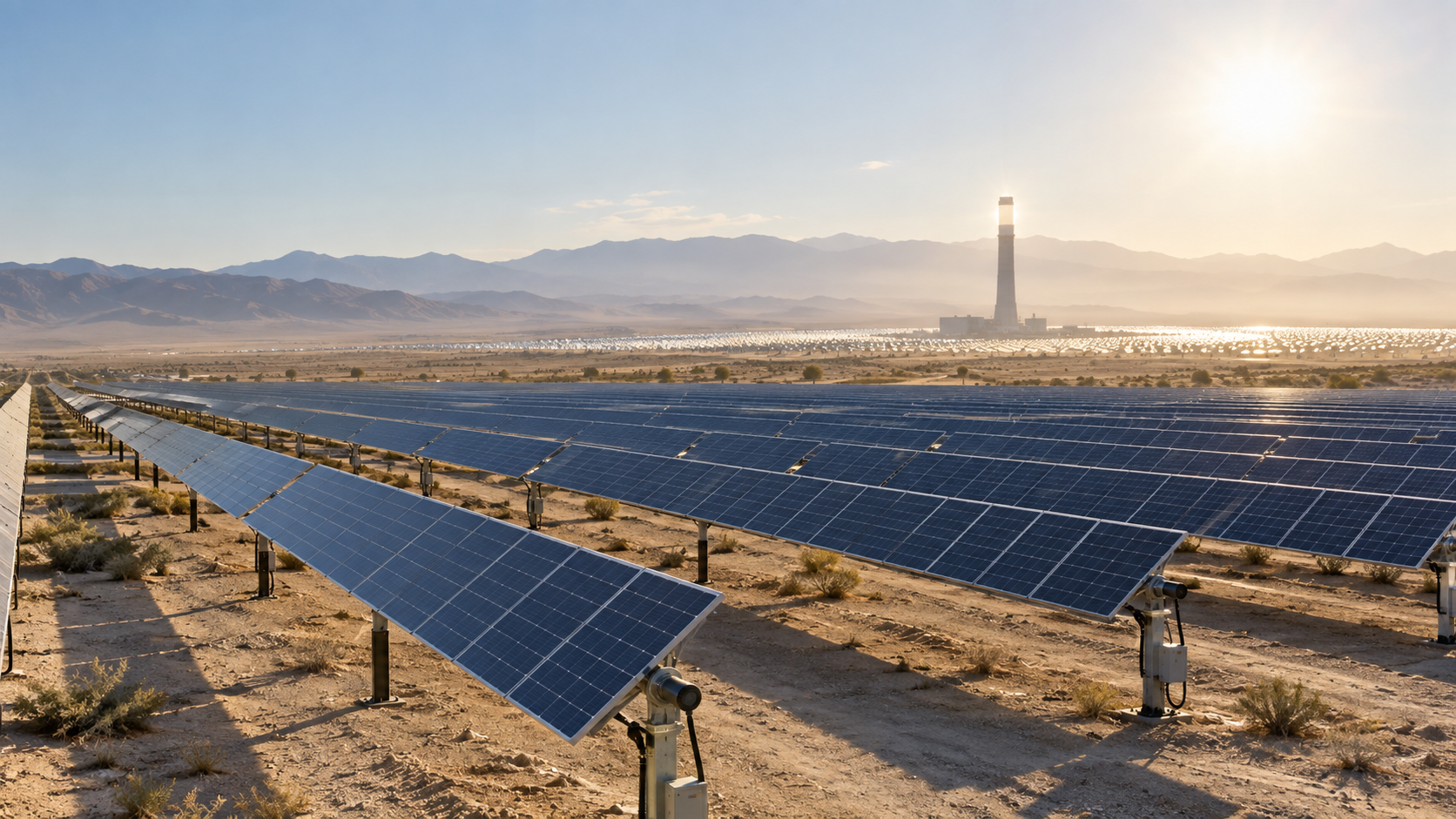

PV arrays and a distant solar-thermal tower in a large desert park
Fig. 0 — The PV protection layer is reviewed in the context of a mixed-technology park.

Key takeaways

  • Standardization helps most when many generation technologies share one site.
  • Treat headline ratings as an engineering input, then confirm the final configuration against the project drawings and applicable local requirements.
  • Keep the approved component list, critical interfaces and required test or document deliverables visible before production begins.

1. A mixed-technology park

The Mohammed bin Rashid Al Maktoum Solar Park in Dubai combines a very large PV capacity with concentrated solar power, a multi-technology park that stresses flexible protection and switching. Combining PV and CSP in one park means the protection and switching equipment must serve a PV DC collection side and an AC collection side that also interfaces with thermal generation. Consistency across the park simplifies operation.

2. PV combiner and DC protection

  • PV combiner boxes rated to 1500 V DC with individual gPV fuse protection.
  • DC disconnect switches and Type 2 DC SPDs staged to the 1500 V envelope.
  • DC MCBs for auxiliary and monitoring circuits.

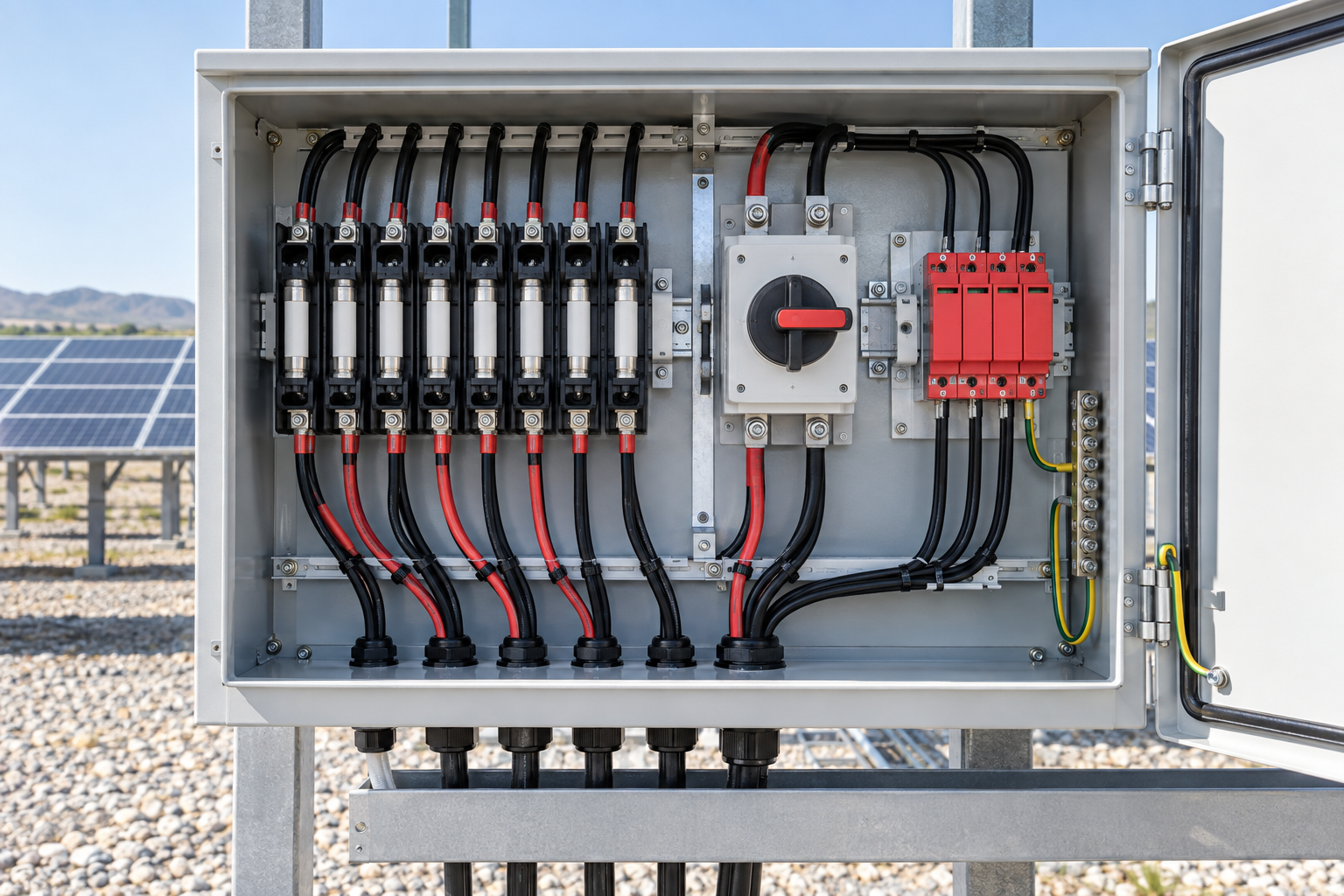

1500 V PV combiner with gPV fuses, DC disconnect and surge protection
Fig. 1 — Each PV string enters a controlled DC protection chain before collection.

3. Low-voltage switchgear

NEUTRON supplied low-voltage switchgear for the AC collection side, built to IEC 61439, with a ring main unit for the controlled grid interface where required.

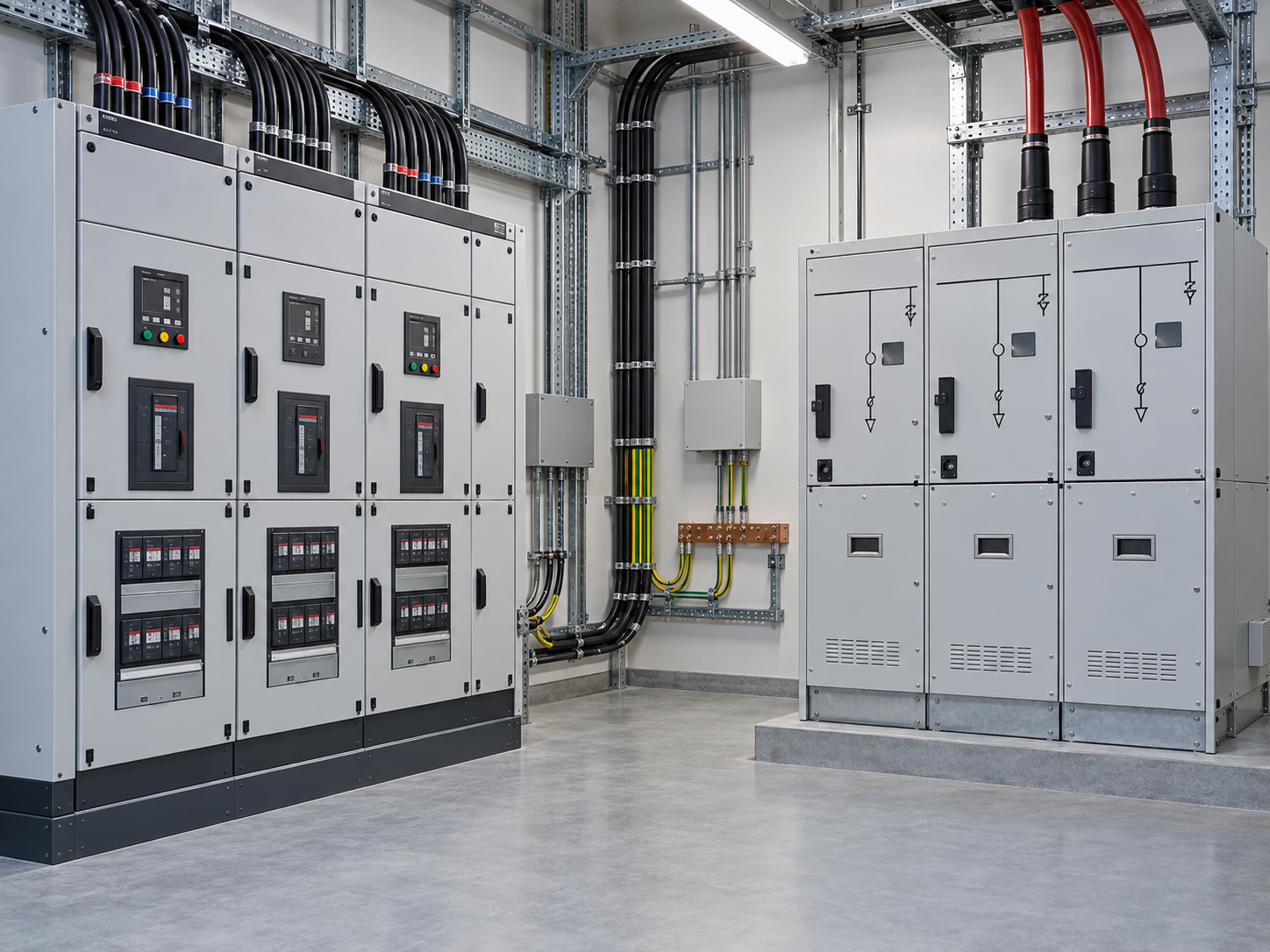

Low-voltage switchgear and grid-interface equipment at a solar collection point
Fig. 2 — The AC collection side is standardized around serviceable switchgear and controlled handoff.

4. Desert and dust specification

  • Enclosure to IP65 with a corrosion class suited to Dubai dust and humidity.
  • Current parts derated for high ambient temperature.
  • SPD staging reviewed for local lightning density.

5. Outcome

The combiner and switchgear scope gave the PV section a consistent, serviceable protection layer inside a complex multi-technology park. The lesson is that standardization helps most when many technologies share one site.

Project paths

!
Engineering boundary

Final ratings, coordination, installation and applicable local requirements must be verified against current standards, manufacturer documentation and the approved project design.

Frequently asked questions

How do you protect a PV plus CSP park?

PV combiner and DC protection for the solar section, plus IEC 61439 low-voltage switchgear and an RMU for the AC collection and grid interface.

What does NEUTRON supply there?

PV combiner boxes, DC disconnect and SPD, DC MCBs and low-voltage switchgear; CSP and inverters are integrated by others.

Which standards apply?

IEC 62916, IEC 60269-6, IEC 60947-2, IEC 61643-31, IEC 61439 and IEC 62271.

Why standardize across a mixed park?

Consistent protection and switching equipment simplifies operation and maintenance when many technologies share one site.

Coordinate the PV collection and AC handoff.

Share the PV collection, AC interface and environmental inputs for a coordinated scope review.

Discuss a project
NE
NEUTRON Engineering TeamPower distribution and new-energy equipment for project-based export supply.

Continue learning

Explore related technical guidance in Solar PV.

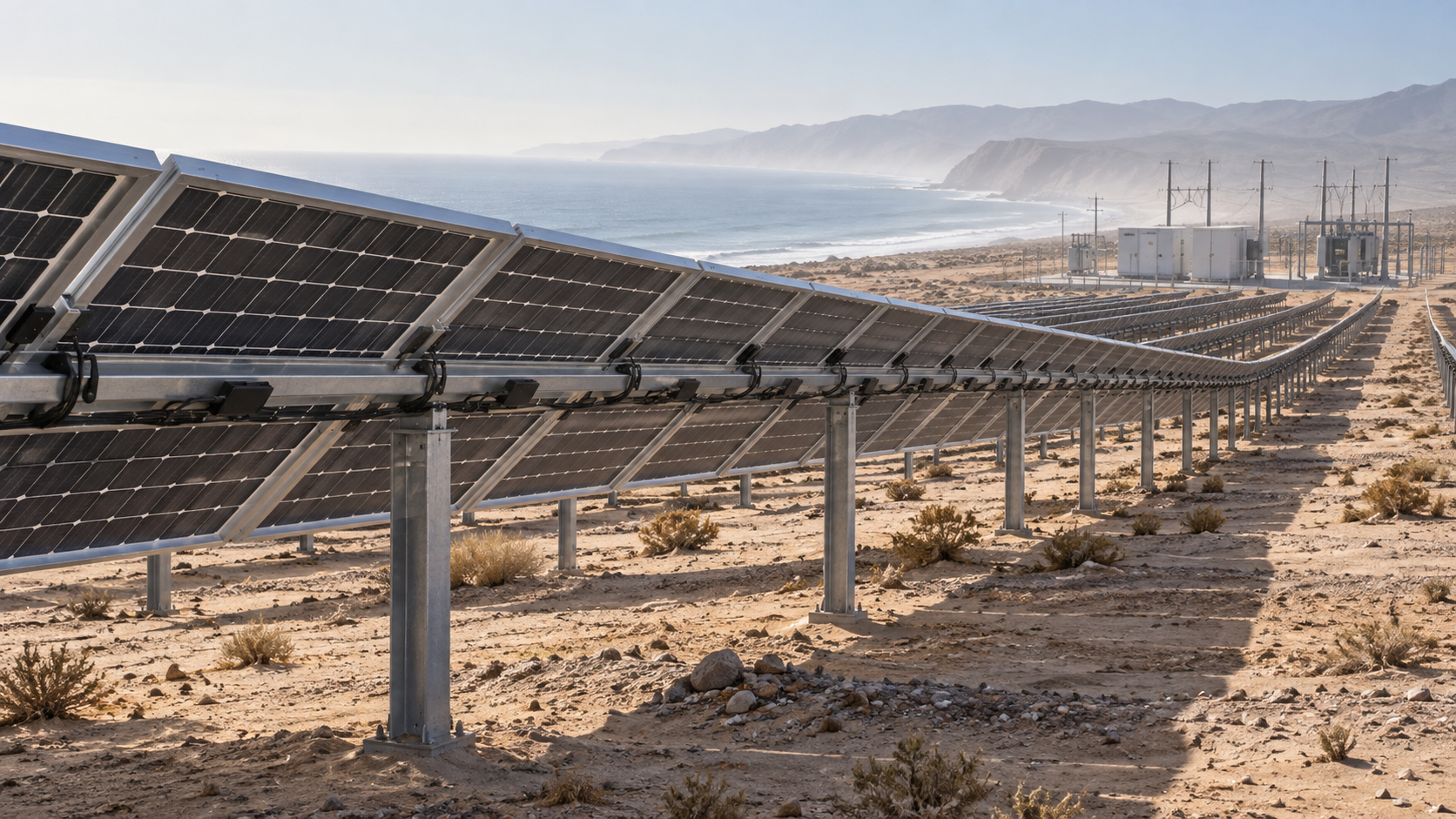

Coastal utility solar field with bifacial PV rows and maritime haze
