Substation and RMU Coordination: NEUTRON Scope at Kom Ombo 500 MW

A coordinated collection-to-substation protection scope for a 500 MW desert solar plant.

NEUTRON Engineering TeamUpdated September 9, 20266 min readTechnical application guidance
Desert PV field with a prominent step-up substation

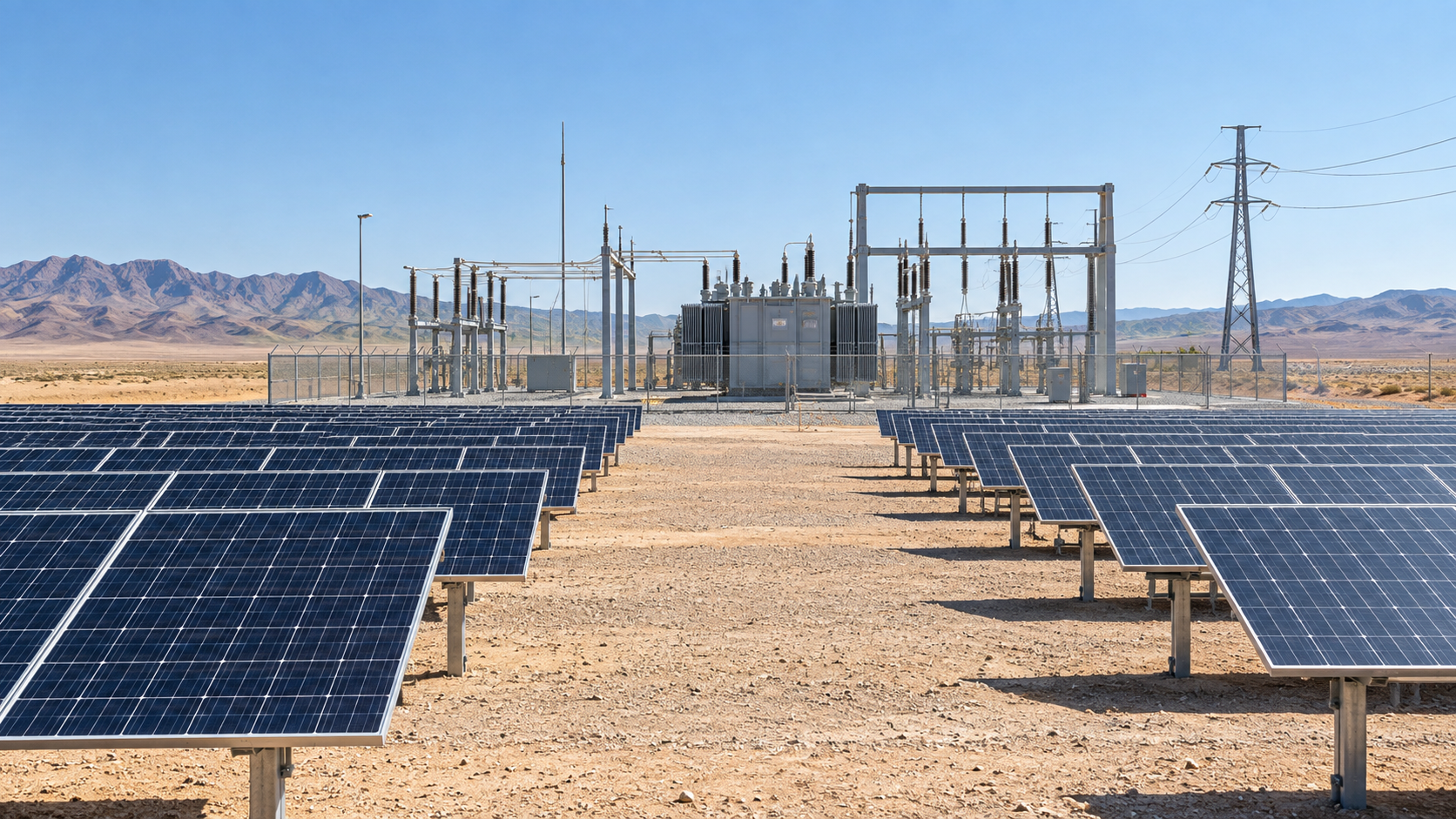

Fig. 0 — The array and step-up substation are reviewed as one collection and handoff chain.

Key takeaways

  • The substation interface deserves the same coordination discipline as the combiner.
  • Treat headline ratings as an engineering input, then confirm the final configuration against the project drawings and applicable local requirements.
  • Keep the approved component list, critical interfaces and required test or document deliverables visible before production begins.

1. Plant and substation

The Kom Ombo solar plant near Aswan reaches about 500 MW and connects through a step-up substation. A 500 MW plant concentrates its AC collection at a step-up substation. The protection and switching equipment must move aggregated current reliably from the array to the grid connection.

2. Combiner and DC protection

  • PV combiner boxes rated to 1500 V DC with individual gPV fuse protection.
  • DC disconnect switches and Type 2 DC SPDs staged to the 1500 V envelope.
  • DC MCBs for auxiliary circuits.
1500 V PV combiner with gPV fuses and DC disconnect

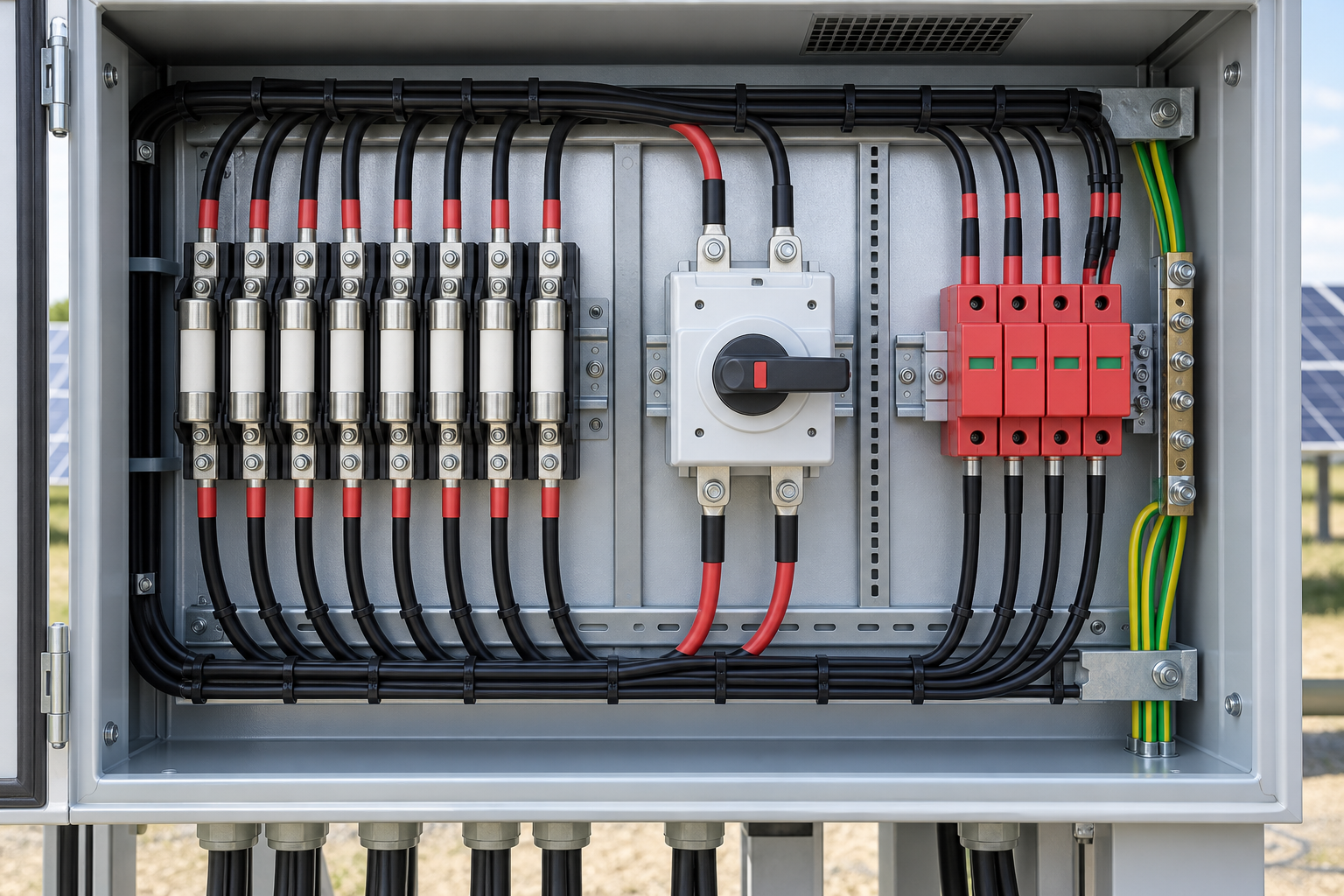

Fig. 1 — String-level fault protection remains local before collection.

3. Substation switchgear and RMU

At the substation the AC feeders terminate in NEUTRON low-voltage switchgear, and a ring main unit provides the controlled interface to the step-up transformer with selective coordination.

Ring main unit and low-voltage switchgear at a step-up transformer interface

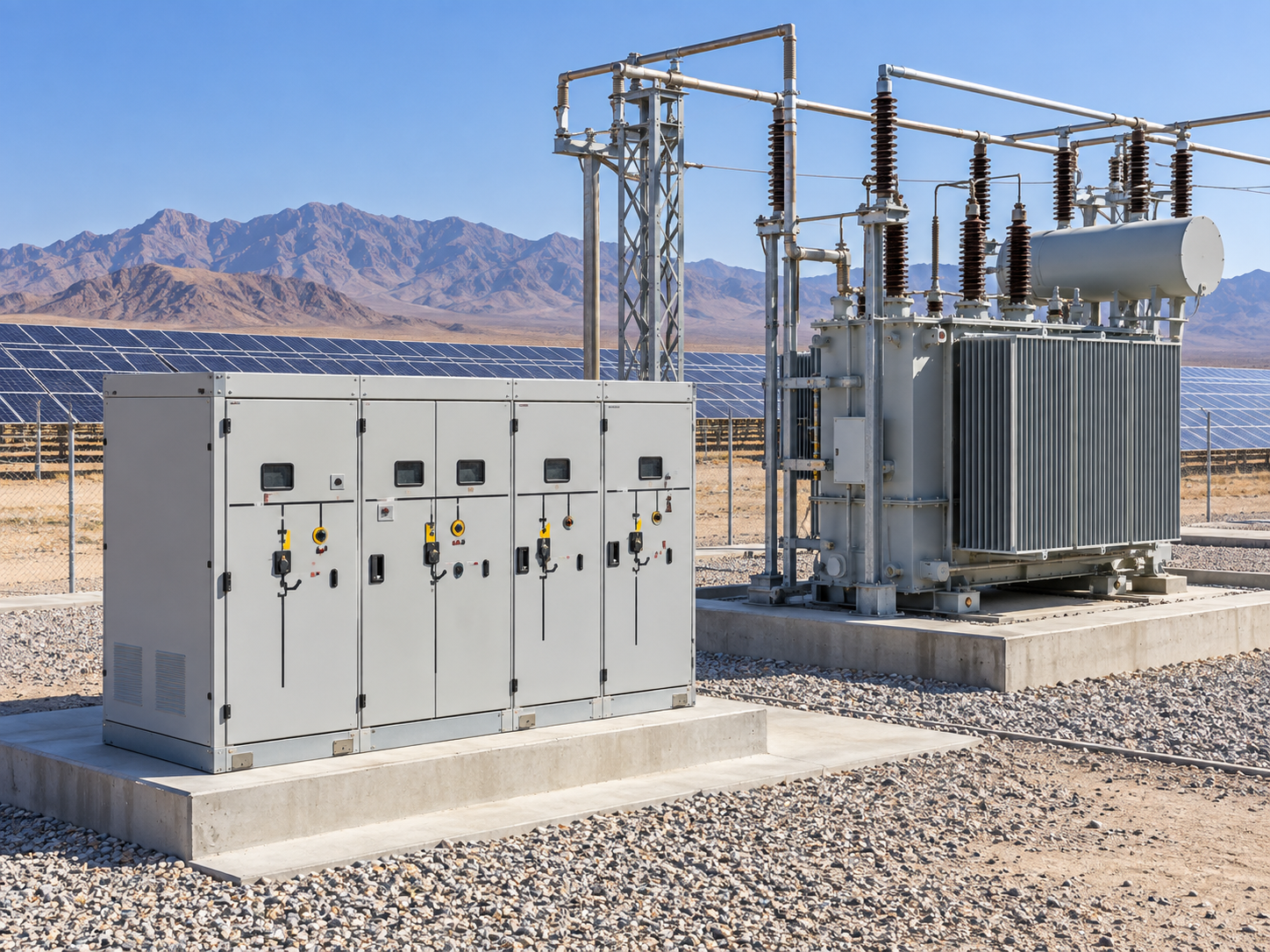

Fig. 2 — RMU and switchgear provide the controlled transformer and grid interface.

4. Desert specification

  • Enclosure to IP65 with a corrosion class for Aswan dust.
  • Current parts derated for high ambient temperature.
  • SPD staging reviewed for local lightning density.

5. Outcome

The coordinated combiner and substation protection gave the plant a clean path from array to grid. The lesson is that the substation interface deserves the same coordination discipline as the combiner.

Project paths

!
Engineering boundary

Final ratings, coordination, installation and applicable local requirements must be verified against current standards, manufacturer documentation and the approved project design.

Frequently asked questions

How does NEUTRON coordinate plant and substation?

Combiner gPV fuses and DC SPD feed low-voltage switchgear at the substation, with an RMU providing selective, controlled grid interface.

What rating applies to the combiner?

Maximum system voltage 1500 V DC, string short-circuit current including bifacial gain, input string count and site protection class.

Which standards apply?

IEC 62916, IEC 60269-6, IEC 60947-2, IEC 61643-31, IEC 61439 and IEC 62271.

Why selective coordination at the substation?

It lets a downstream fault isolate locally without dropping the whole array or the step-up feeder.

Review the grid handoff with the collection system.

Share the array, transformer and grid-interface inputs for coordinated scope review.

Discuss a project
