APFC Full Form in Electrical

APFC stands for Automatic Power Factor Correction — the controller that switches capacitor stages onto a reactive bus so the plant power factor stays in band without manual intervention.

NEUTRON Engineering TeamUpdated August 31, 20265 min readTechnical application guidance

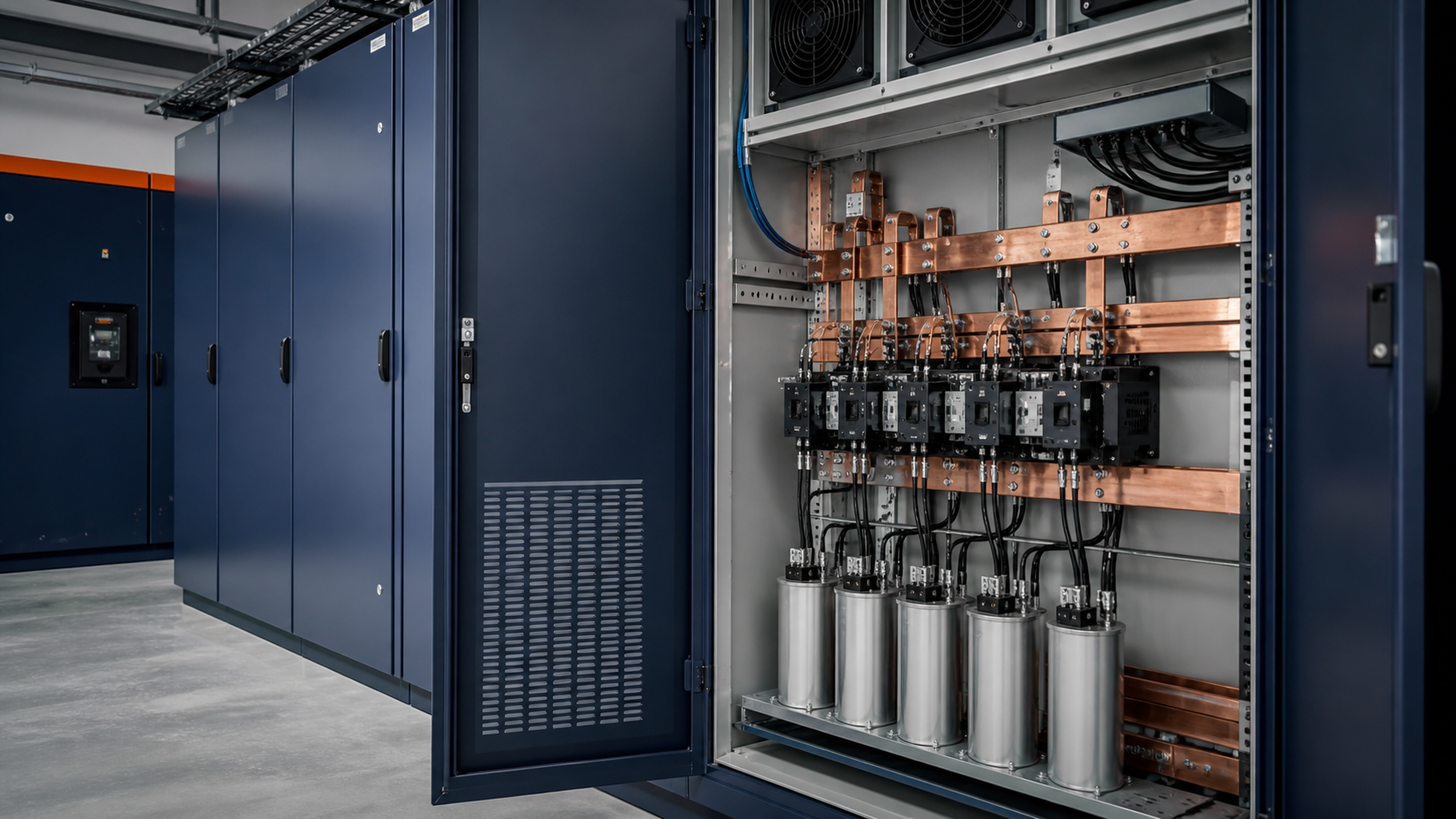

Automatic power factor correction cabinet in a commercial low-voltage switchroom
Fig. 0 — Technical application context for this guide.

Key takeaways

  • APFC stands for Automatic Power Factor Correction — the controller that switches capacitor stages onto a reactive bus so the plant power factor stays in band without manual intervention.
  • Treat headline ratings as an engineering input, then confirm the final configuration against the project drawings and applicable local requirements.
  • Keep the approved component list, critical interfaces and required test or document deliverables visible before production begins.

1. APFC full form and what it does

In electrical engineering, APFC is the full form of Automatic Power Factor Correction — the controller that measures the bus and switches capacitor stages to hold a target displacement factor.

Its job is narrow: keep the displacement factor in band, stage by stage, as the load swings, then hand back to the utility at the point of common coupling.

2. Stages, reactors and the switching logic

A controller cyclically engages capacitor banks through contactors or thyristors, often behind a detuned reactor so harmonic-rich loads do not mistrip the stages.

  • Stage 1 to N — equal or graded steps sized to the expected load swing.
  • Detuned reactor — shifts the de-tuning frequency above the dominant harmonic.
  • Controller logic — measures, compares to target, switches the nearest stage.

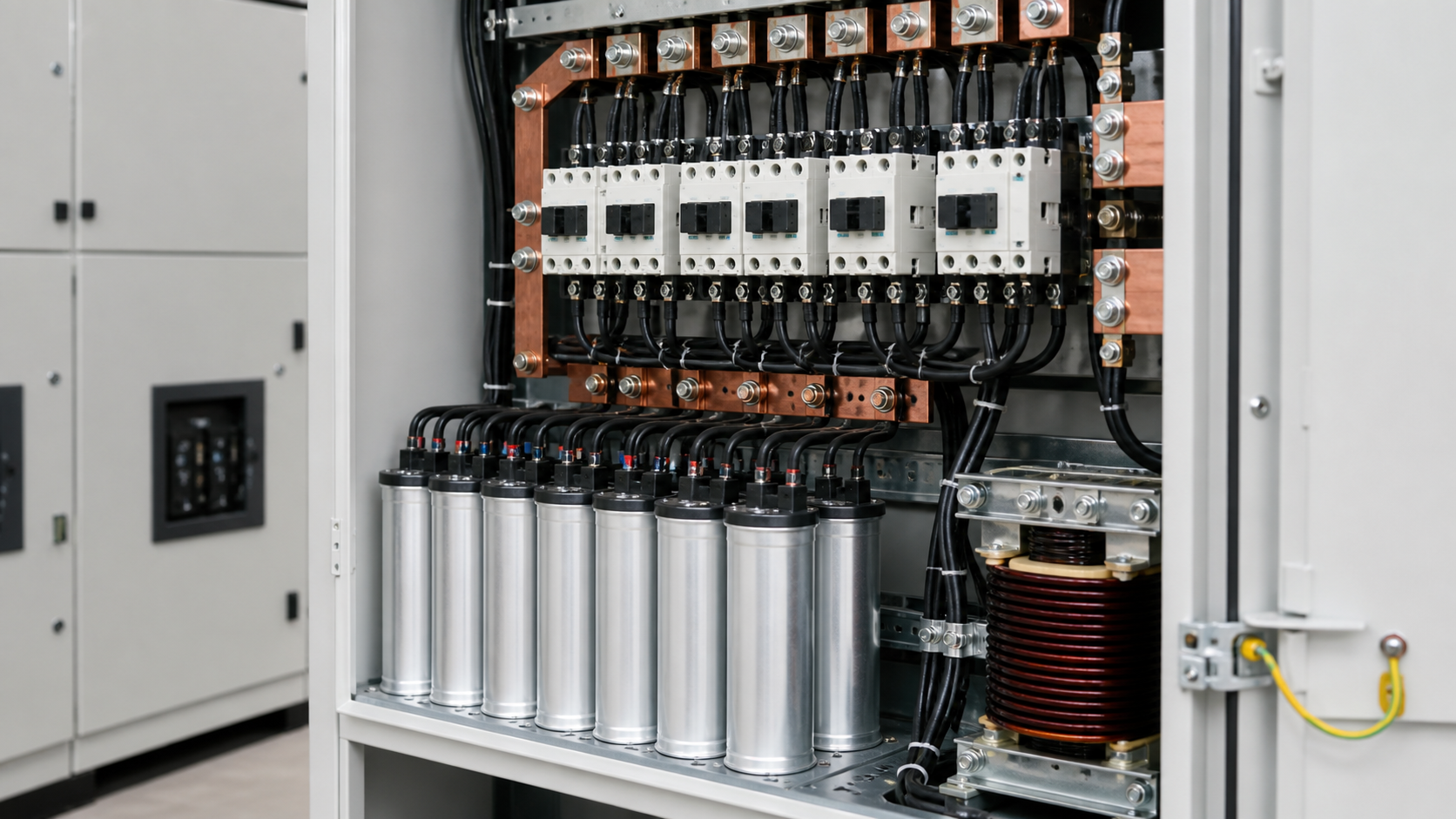

Capacitor stages, contactors and reactor inside an automatic power factor correction cabinet
Fig. 1 — Equipment relationship used in the technical explanation.

3. Where it sits in a NEUTRON assembly

APFC lives inside the compensation cabinet of a NEUTRON low-voltage assembly that carries reactive loads.

4. Standards and limits

Built into assemblies to IEC 61439-1/-2; controller logic to IEC 61000-3-2 where harmonic limits apply. CE and CB certification; rated 400 to 1000 V, IP30 to IP65.

Power factor correction sequence from measurement through staged capacitor switching
Fig. 2 — Engineering review sequence.

Technical diagram shown at a readable responsive scale.

Project paths

!
Engineering boundary

This is general technical guidance, not a substitute for local electrical code, the applicable standard, product datasheets or a qualified engineer's design review. Confirm ratings and final configurations against the actual project.

Bring the project inputs to the first review.

NEUTRON can review the application context, electrical envelope, enclosure conditions and document requirements related to apfc full form in electrical before quotation.

Discuss a technical requirement
