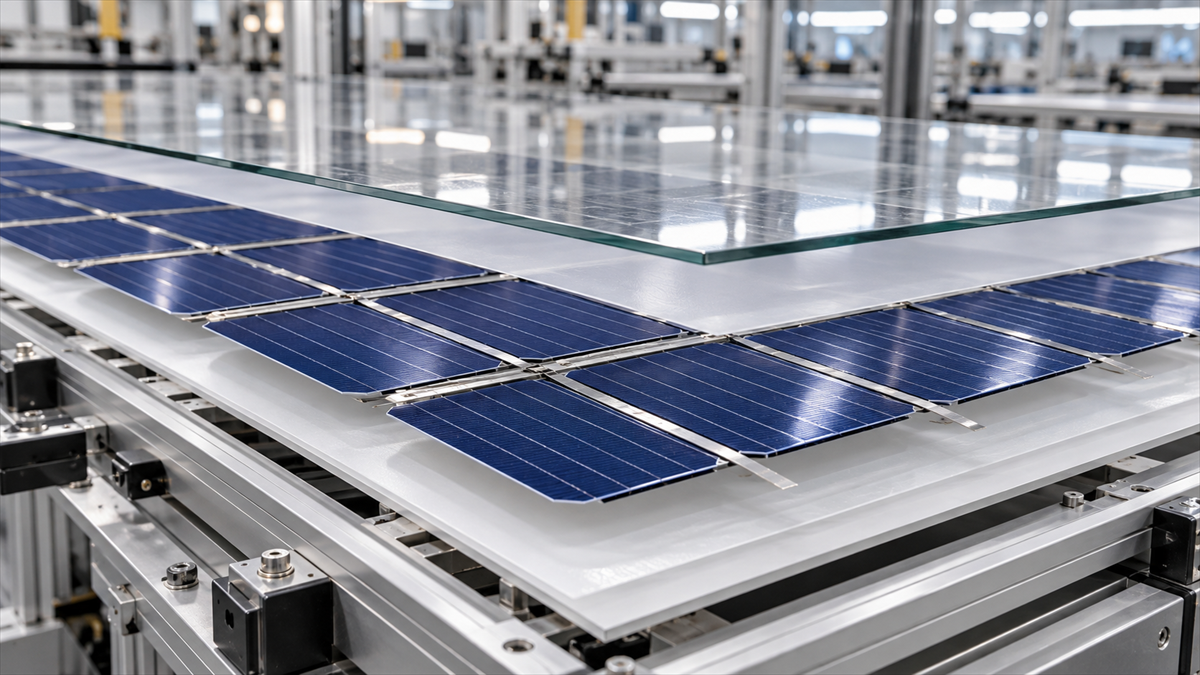

The 2026 module-design development
Fraunhofer ISE announced a shingle-matrix module concept for display at The Smarter E / Intersolar 2026. In this architecture, cells are cut into narrow strips and arranged in an overlapping pattern, with electrically conductive adhesive used for cell-to-cell connection instead of conventional solder-coated copper ribbons.
The announcement is a design and prototype milestone. It does not establish a universal power gain, lower cost for every project or a single best interconnection method.
What the cell-to-module ratio captures
Cell-to-module (CTM) analysis compares the electrical output of cells with the output of the finished module, using a clearly defined area and test basis. Optical losses, electrical resistance, spacing, interconnection and packaging all influence the result; module designs can also create gains relative to a simple area calculation.
Fraunhofer ISE's CTM materials distinguish geometric, optical and electrical effects. That framework is more informative than claiming that an architecture recovers a fixed number of watts without identifying the baseline module and measurement conditions.
Interconnection changes bring trade-offs
Removing conventional ribbons may change optical shading, series resistance, cell utilization and mechanical stress paths. Shingling can increase active-area packing, while adhesive selection, overlap geometry, process control and repairability become important manufacturing questions.
A fair comparison keeps cell technology, cell area, module dimensions, front glass, test conditions and power bin aligned. It should also report reliability evidence for the new joint rather than assuming that a prototype-level CTM result predicts a bankable product.
What EPC and procurement teams should compare
Ask for module-level power and efficiency under the same test conditions, a bill of materials, mechanical-load and environmental test reports, warranty terms and manufacturing traceability. For a project, translate the module layout into string voltage, current, row geometry, replacement compatibility and balance-of-system implications.
The right comparison is the energy and lifecycle value of complete products under project conditions—not a cell efficiency headline or an isolated CTM ratio.
Next evidence milestone
The next useful update will report repeatable module-level measurements and qualification results for the named design. Until then, shingle-matrix architecture is an active engineering direction, not a universal replacement for established ribbon-connected modules.
Frequently asked questions
What does cell-to-module loss mean?
It describes the difference between cell-level output and the output of an assembled module under a defined calculation and test basis. The comparison can include optical, electrical and geometric losses as well as module-integration gains.
What is different about a shingle-matrix module?
The Fraunhofer ISE announcement describes narrow cell strips arranged in an overlapping matrix and connected using electrically conductive adhesive, rather than traditional solder-coated copper ribbons.
Does a new interconnection design guarantee more project energy?
No. Project energy depends on the complete module, system design, site conditions, reliability and operating profile. Compare independently measured module performance and qualification data.
Use the news as a project input, then verify the scope.
This News item is editorial context. Confirm the final datasheet, applicable standard, project conditions and acceptance evidence before changing a design or purchase decision.
