Coordinating 1.5 GW of PV Strings: NEUTRON Combiner Scope at Sudair

String-level monitoring and selective DC coordination for a gigawatt-scale PV array.

NEUTRON Engineering TeamUpdated September 9, 20266 min readTechnical application guidance

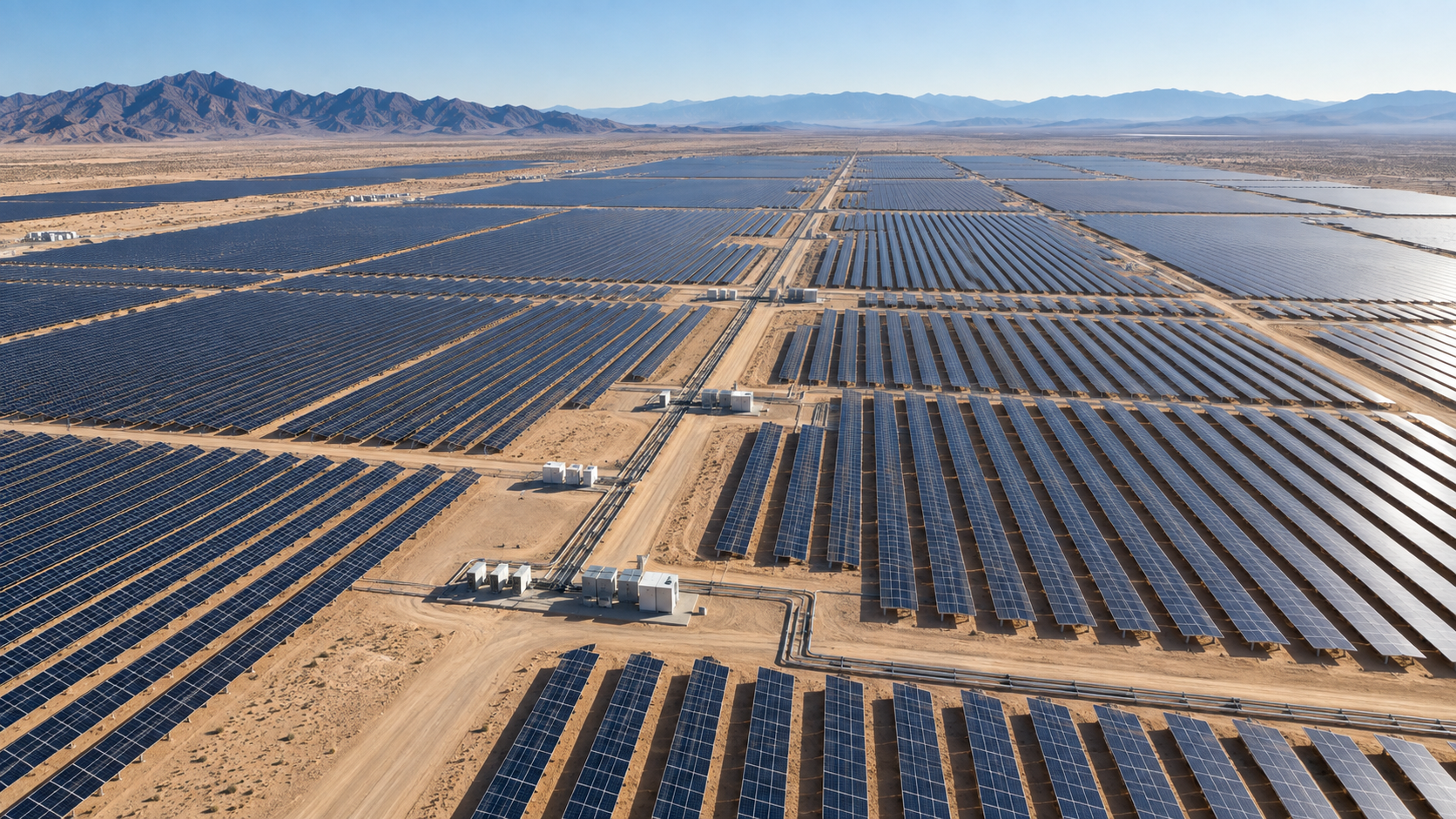

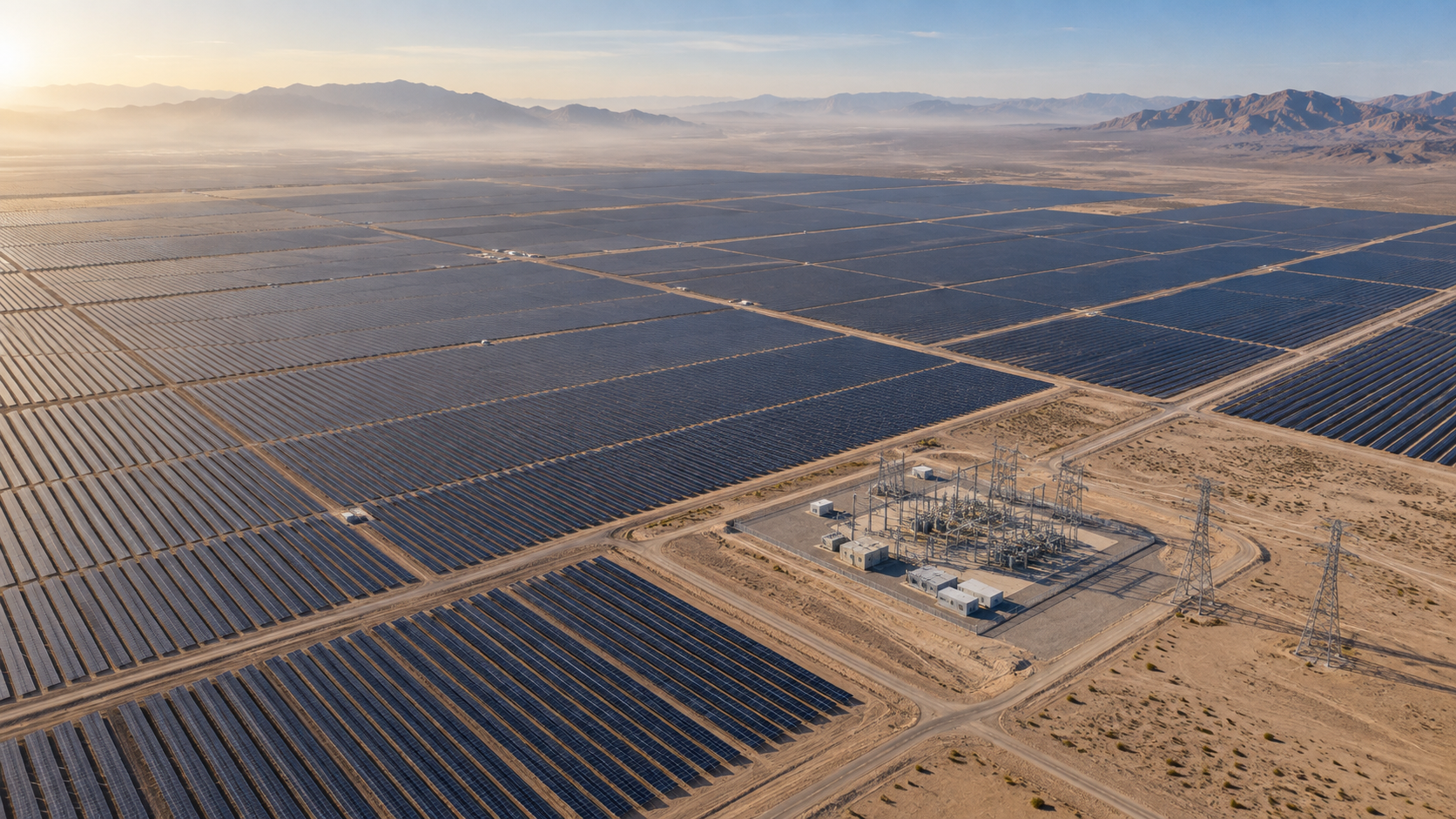

Large desert PV field organized around DC collection corridors
Fig. 0 — Array scale makes local fault containment and fast identification a design priority.

Key takeaways

  • At gigawatt scale, coordination and monitoring matter as much as the individual device rating.
  • Treat headline ratings as an engineering input, then confirm the final configuration against the project drawings and applicable local requirements.
  • Keep the approved component list, critical interfaces and required test or document deliverables visible before production begins.

1. Scale drives coordination

A 1.5 GW array contains a very large count of series strings. The design goal is that a fault on one string isolates locally at its combiner without disturbing neighbours, and that the operator can see which string is degraded from the control room.

2. Combiner box role

  • Each combiner collects many strings with individual gPV fuse protection sized to the module short-circuit current including bifacial gain.
  • A DC-rated disconnect isolates a combiner safely for maintenance.
  • A staged DC SPD protects the box against lightning and switching surges.
  • Output fusing and a monitored busbar feed the inverter station.

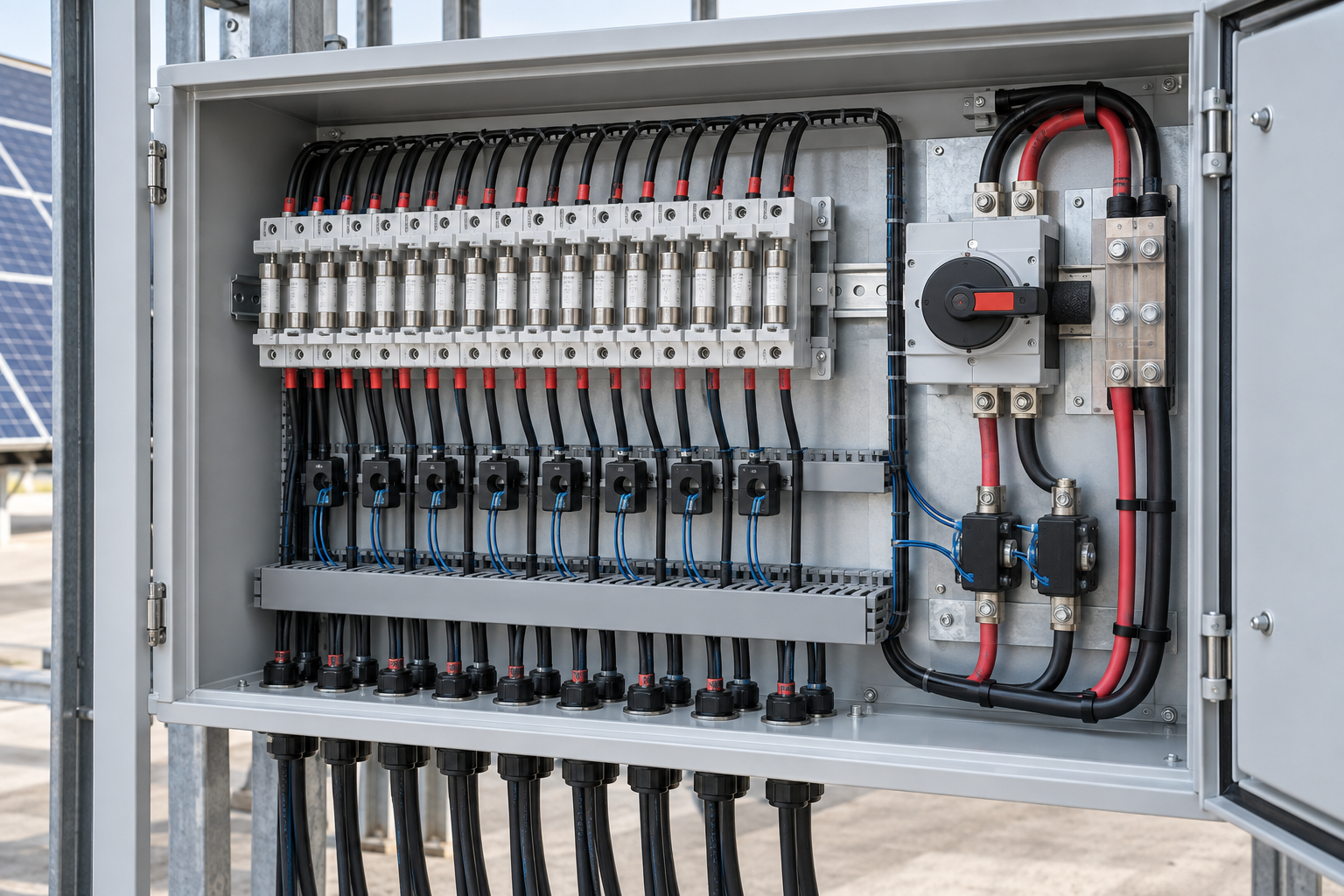

PV combiner cabinet with monitored string inputs and fuse protection
Fig. 1 — String-level monitoring helps operators locate degradation before it becomes downtime.

3. String-level monitoring

NEUTRON specified string-level current monitoring at the combiner output so the operator can detect a degraded or faulted string early. Across a plant this size, early detection is what keeps unplanned downtime low.

4. Selective coordination

The gPV fuse, DC disconnect and downstream protection were coordinated so a short circuit clears at the nearest device. This selectivity was verified against the projected fault levels before release, preventing a single fault from dropping a whole feeder.

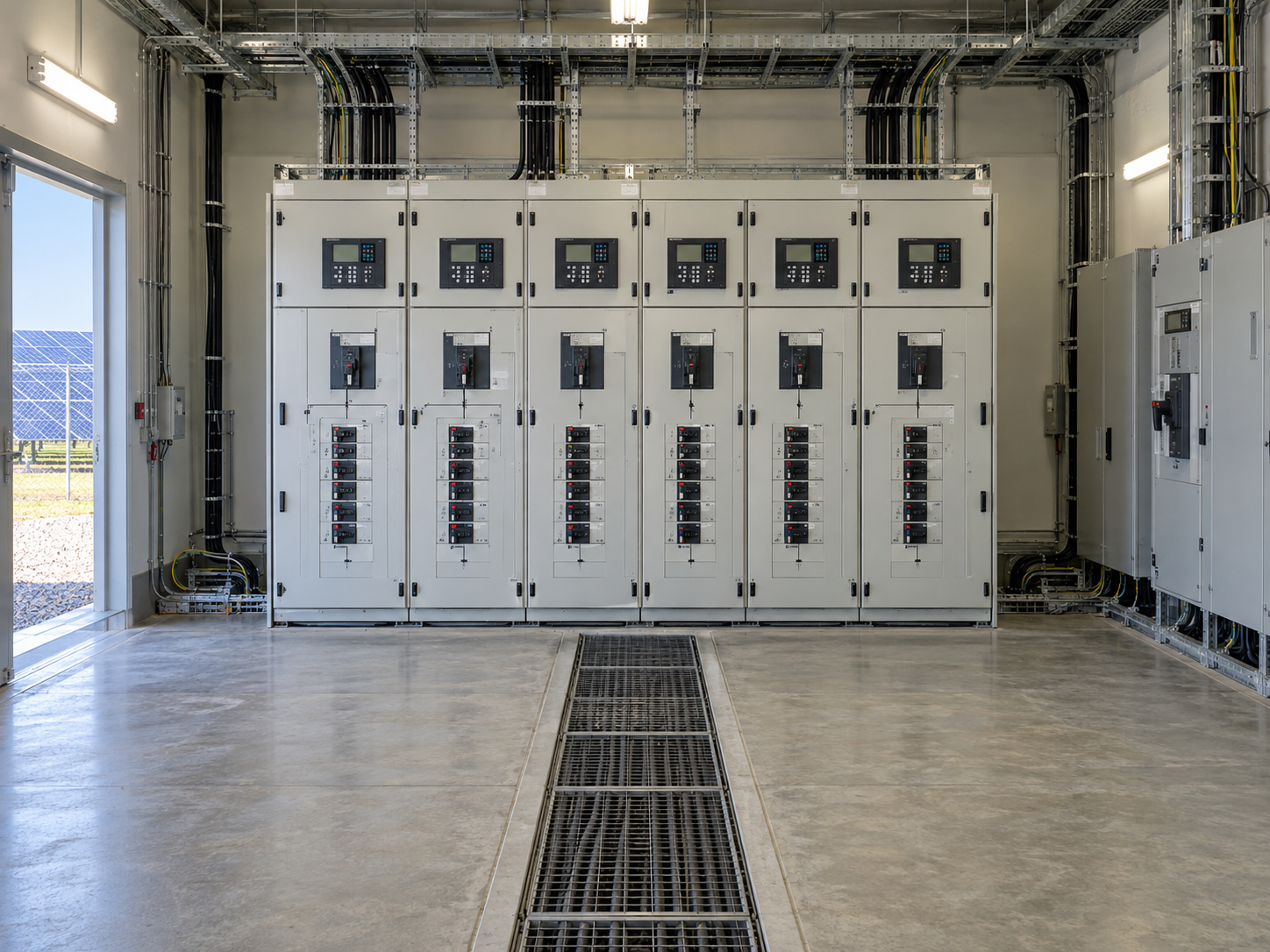

Low-voltage feeder collection equipment in a solar plant substation
Fig. 2 — The DC layer is coordinated with the wider plant collection architecture.

5. Environmental specification

  • Enclosures rated for inland dust and high ambient temperature.
  • Current parts derated for sustained heat and solar gain.
  • SPD staging reviewed for the local lightning density.

6. Outcome

The combiner layer gave the plant a serviceable, monitored protection foundation. The lesson for gigawatt-scale Saudi projects is that coordination and monitoring matter as much as the individual device rating.

Project paths

!
Engineering boundary

Final ratings, coordination, installation and applicable local requirements must be verified against current standards, manufacturer documentation and the approved project design.

Frequently asked questions

How do you protect a 1.5 GW array?

By coordinating thousands of string-level gPV fuses, DC disconnects and SPDs so each fault isolates locally, plus string monitoring to find degradation early.

Why monitor at the string level?

At gigawatt scale, early detection of a degraded string is what keeps total plant downtime low and maintenance efficient.

What rating applies to the combiner?

Maximum system voltage 1500 V DC, string short-circuit current including bifacial gain, input string count and site protection class.

Which standards apply?

IEC 62916, IEC 60269-6, IEC 60947-2, IEC 61643-31 and IEC 61439.

Bring the string and monitoring inputs to review.

Share the string plan, monitoring interface and environmental duty for a coordinated scope review.

Discuss a project
